Flexible Electrical Wire Harness Male To Female M12 Connecting Armoured Cable
| Connector Technical Data | |
| Contacts No. | 4Pin |
| Reference standard | IEC 61076-2-101 |
| Rated current | 4A |
| Rated voltage | 250V |
| Impulse voltage | 2500V |
| Locking system | M12×1.0 screw |
| Tightening torque | Recommend: 0.4Nm, Max: 0.8Nm |
| Termination | Soldering |
| Wire gauge | 0.34mm²(AWG 22) |

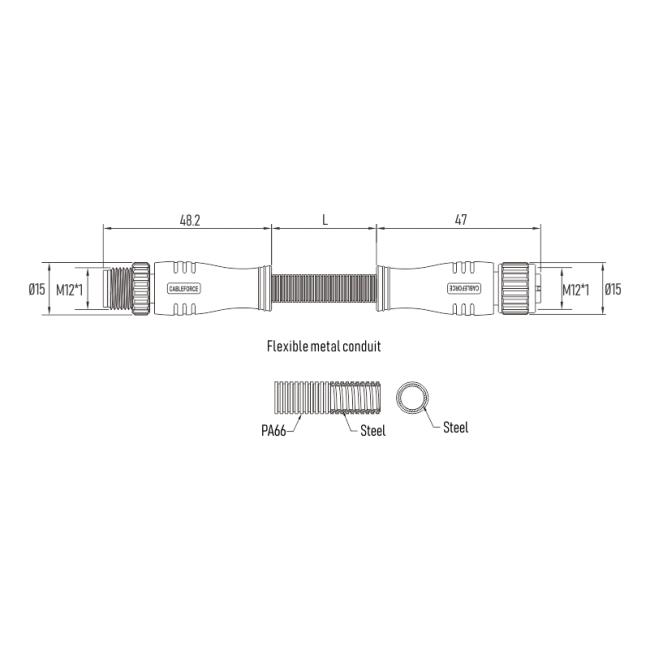

| Protection conduit | Nylon 66 conduit armoured with steel shield |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Over-molding | TPU |
| Contact carrier | TPU+GF |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Brass, Phosphor bronze |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67, IP68 |
| Pollution degree | 3 |
Description
● Low Smoking Zero Halogen
● RoHS Compliant
● UL94 Flame Retardent
FAQ
● What is a M12 connector?
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.
● What does the coding mean on M12 connectors?
This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
