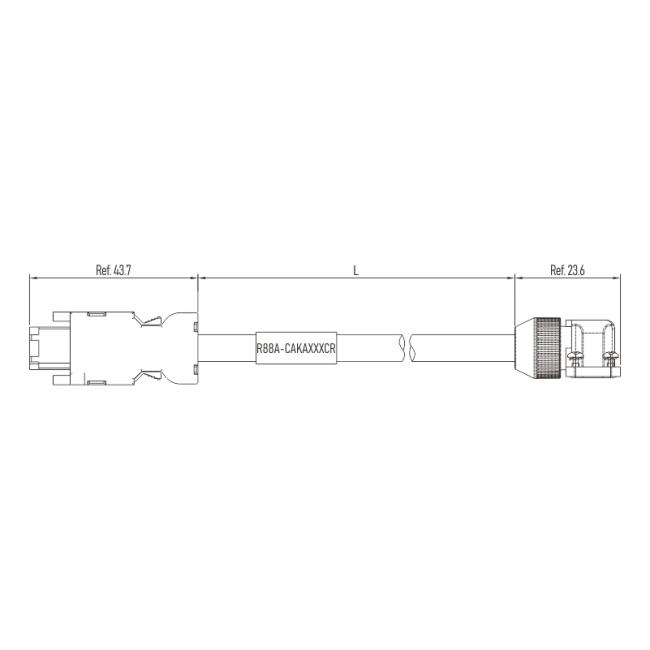

AWG 24 Servo Motor Power Cable Molex IEEE 1394 And JN6 Connectors
| Connector Technical Data | |
| Contacts No. | Molex IEEE 1394 Male 6Pin, JN6 Female 7Pin |
| Rated current | 2A |
| Rated voltage | 60V |
| Impulse voltage | 1500V |
| Termination | Crimping |
| Wire gauge | 0.2mm²(AWG 24) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +105℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Housing | PA66 |
| Contact | Brass |
| Contacts plating | Au(Gold) / TIN |
| Bending radius | 8×OD |
| Drag chain bending | 10 Million times |
| Pollution degree | 3 |
Applications
It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servo encoders/motors, drag chain systems, laser equipment, electrical cabinets, industrial imaging and other fields.
FAQ
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
● What is the after-sale service?
If any problem cause by our side, we would surely help customers to solve these problems. Refund money, or resend goods, or other ways.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
