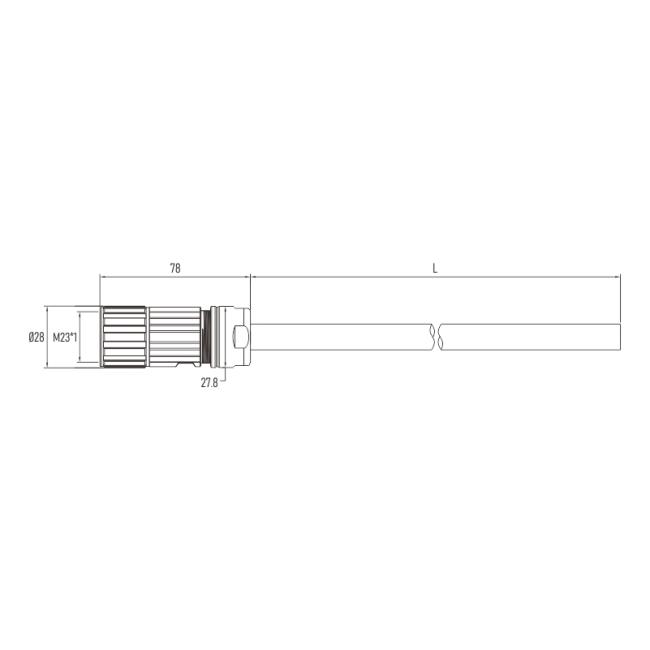

AWG 12 Servo Power Cable 30A 630V With M23 6Pin Power Connector
| Connector Technical Data | |
| Contacts No. | M23 Female 6Pin |
| Rated current | 30A |
| Rated voltage | 630V |
| Impulse voltage | 6KW |
| Termination | Crimping |
| Wire gauge | 2.5mm²(AWG 12) |
| Rated temperature | Flexible: -25℃ ~ +80℃, Static: -40℃ ~ +105℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Housing | PA66 |
| Contact | Brass |
| Contacts plating | Au(Gold) |
| Bending radius | 5×OD |
| Drag chain bending | 5 Million times |
| Pollution degree | 3 |
Applications
It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servo encoders/motors, drag chain systems, laser equipment, electrical cabinets, industrial imaging and other fields.
● Low Smoking Zero Halogen
● RoHS Compliant
● UL94 Flame Retardent
FAQ
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
● What is the after-sale service?
If any problem cause by our side, we would surely help customers to solve these problems. Refund money, or resend goods, or other ways.
