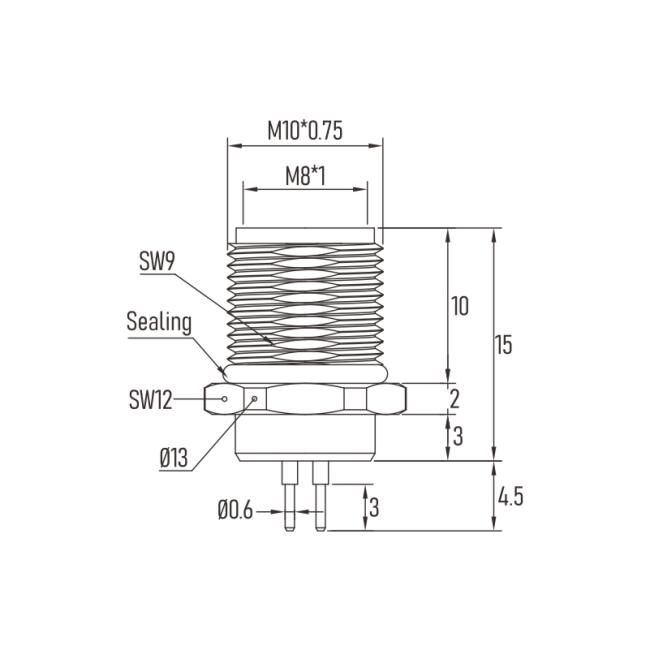

A Code Female M8 Circular Connector 5Pin Panel Front Mount PCB Contacts
| Connector Technical Data | |
| Contacts No. | 5Pin |
| Reference standard | IEC 61076-2-104 |
| Rated current | 3A |
| Rated voltage | 30V |
| Impulse voltage | 500V |
| Locking system | M8×1.0 screw |
| Tightening torque | Recommend: 0.3Nm, Max: 0.6Nm |
| Termination | PCB Dip Soldering |
| Rated temperature | -25℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Contact carrier | TPU+GF |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Phosphor bronze |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67, IP68 |
| Pollution degree | 3 |
M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice. Our connectors can also be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.
Product Features
● Pin configurations: 3, 4, 5, 6, 8 positions
● A, B coding available
● Shielded and Un-shielded version available
FAQ
● What is Panel Mount connector?
Panel Mount is a mechanical feature or features built into the design of a connector half. It allows the connector to be secured to an equipment panel, external case or enclosure. Often (but not always), connectors fitted with panel mount features will be cable connectors.
● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
