Female M8 Cable Connector Panel PCB Contacts Shielded Connector
Price:
Negotiated
MOQ:
100
Delivery Time:
2~3 weeks
Brand:
CABLEFORCE
Product Description

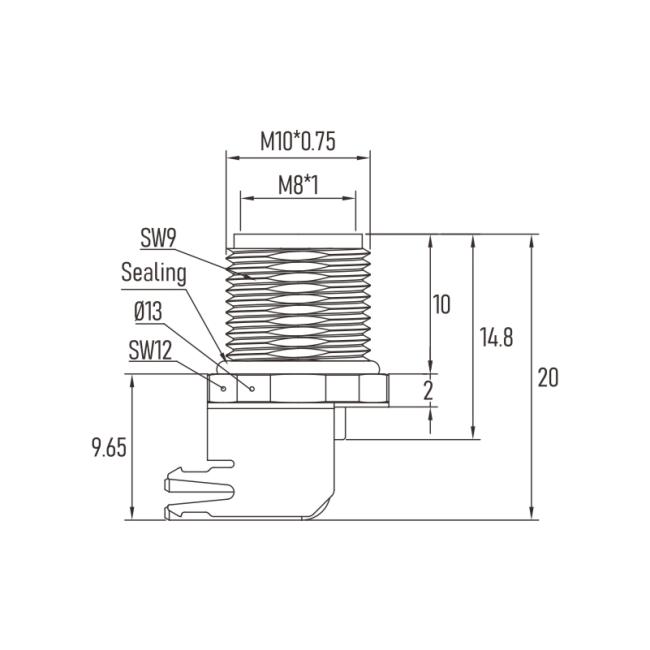

M8 B Code 5Pin Female Panel PCB Contacts Shielded Right Angled Circular Connector Front Side Fastening
| Connector Technical Data | |
| Contacts No. | 5Pin |
| Reference standard | IEC 61076-2-104 |
| Rated current | 3A |
| Rated voltage | 30V |
| Impulse voltage | 500V |
| Locking system | M8×1.0 screw |
| Tightening torque | Recommend: 0.3Nm, Max: 0.6Nm |
| Termination | PCB Dip Soldering |
| Rated temperature | -25℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Contact carrier | TPU+GF |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Phosphor bronze |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67, IP68 |
| Pollution degree | 3 |
Description
M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice. Our connectors can also be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.
M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Shielded is available and rated to IP67, these connectors are ideally suited for industrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wire connecting or with PCB panel solder contacts.Field attachable/mountable connector is also available for your choice. Our connectors can also be used in LED display, LED pixel light, LED tube light, LED wall washer light, LED path light, LED pool light, LED tunnel light, LED panel, LED liner.
Ordering Number
3Pin(A Code): MB03P2LPASB
4Pin(A Code): MB04P2LPASB
5Pin(B Code): MB05P2LPBSB
FAQ
● What is M8 connector?
The M8 connector is used specifically with industrial sensors and features a waterproof 3-pin screw. These connectors come pre-assembled and remain watertight even if submerged. These heavy-duty connectors are typically used in harsh environments.
● What does the coding means on M8 connector?
This coding prevents incorrect mating on products.
● What is the Applications of the M8 connector?
Common applications for the M8 connector include actuators, PLCs, I/O boxes, sensors, and switches in food and beverage processing, machine building, rubber and plastics, textile and printing presses, and in HVAC system valves.
● What is the difference between M8 and M12?
Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for Fieldbus connections. The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.
