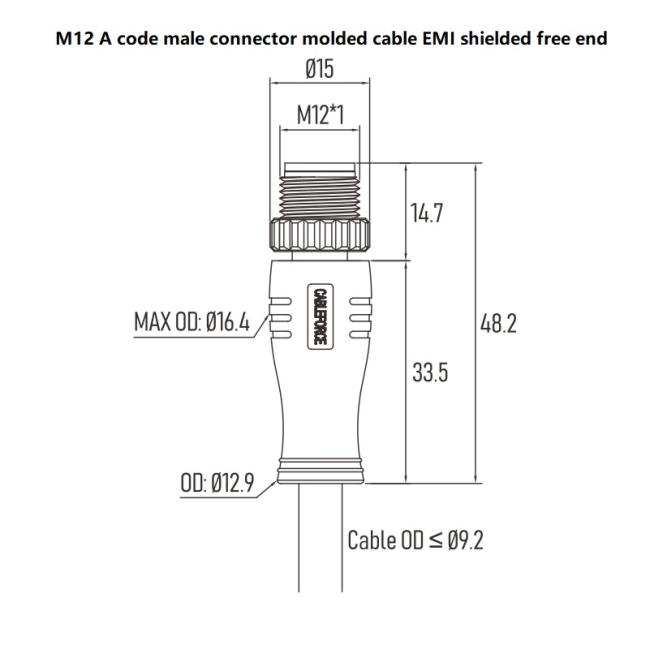

EMI Shielded M12 4 Pin Male Connector
|
Connector Technical Data
|
|||||||||
|
Model Number
|
MC04C1LSAB22CK10
|
||||||||
|
Connectors No.
|
4Pin
|
||||||||
|
Rated Current
|
4A
|
||||||||
|
Rated Voltage
|
250V
|
||||||||
|
Impulse Voltage
|
2500V
|
||||||||
|
Wire Gauge
|
0.34mm²(AWG 22)
|
||||||||
|
Tightening Torque
|
Recommend: 0.4Nm, Max: 0.8Nm
|
||||||||
|
Contact carrier
|
TPU+GF
|
||||||||
|
Over-molding
|
TPU
|
||||||||
|
Termination
|
Soldering
|
||||||||
|
Contact Plating
|
Au(Gold)
|
||||||||
|
Rated Temperature
|
Flexible: -25℃~+80℃, Static: -40℃~+80℃
|
||||||||
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
FAQ
● What is a M12 connector?
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.
● What is the difference between an M8 and M12 connector?
Circular M12 and M8 connectors are used in industrial automation to connect devices securely. M12 designs can also be used for fieldbus connections. ... The M8 connector is used specifically with industrial sensors. This connector features a waterproof 3-pin screw.
