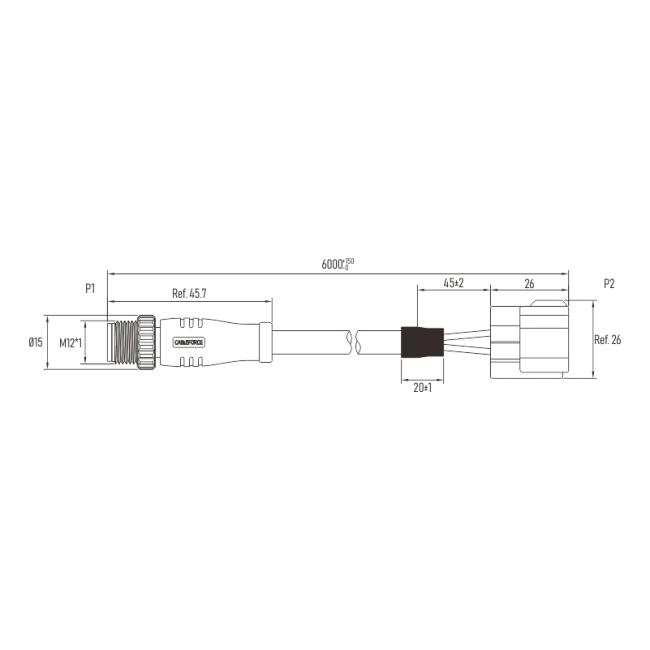

4A 250V Electrical Wire Harness AWG 22 M12 Connector Automotive Can Bus Cable
| Connector Technical Data | |
| Contacts No. | M12 A Code Male 5Pin, 6Pin Connector |
| Reference standard | IEC 61076-2-101 |
| Rated current | 4A |
| Rated voltage | 250V |
| Impulse voltage | 2500V |
| Locking system | M12×1.0 screw |
| Termination | Soldering |
| Wire gauge | 0.34mm²(AWG 22) |
| Rated temperature | -25℃ ~ +80℃, -40℃ ~ +105℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Contact carrier | PA66+GF |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Brass |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP67, IP68 |
| Pollution degree | 3 |
● Excellent mechanical properties
● Excellent thermal stability
● Low temperature soft good performance
● Good flame retardancy
● Of high resistance to chemicals
● Chemistry stability is good
Electrical Properties
● Electrical insulation good
● Good the dielectric properties
Cableforce Core Benefits
● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH
FAQ
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
● What is the after-sale service?
If any problem cause by our side, we would surely help customers to solve these problems. Refund money, or resend goods, or other ways.
