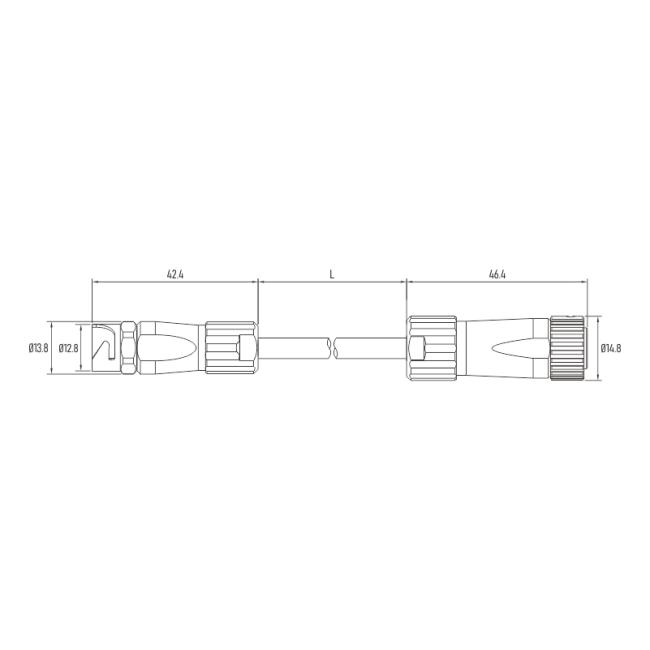

EMC Electrical Wire Harness HRS 12Pin Male To Female Industrial Camera Link Cable
| Connector Technical Data | |
| Contacts No. | Assignment Male 12Pin to Assignment Female 12Pin |
| Rated current | 1.5A |
| Rated voltage | 30V |
| Impulse voltage | 500V |
| Locking system | Bayonet |
| Termination | Soldering |
| Wire gauge | 0.14mm²(AWG 26) |
| Rated temperature | Flexible: -25℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Contact | Male: Brass, Female: Phosphor bronze |
| Contacts plating | Au(Gold) |
| Bending radius | 10×OD |
| Drag chain bending | 2 Million times |
Cableforce Core Benefits
● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Certified cables on request
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH
FAQ
● What is a M12 connector?
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
● What is the after-sale service?
If any problem cause by our side, we would surely help customers to solve these problems. Refund money, or resend goods, or other ways.
