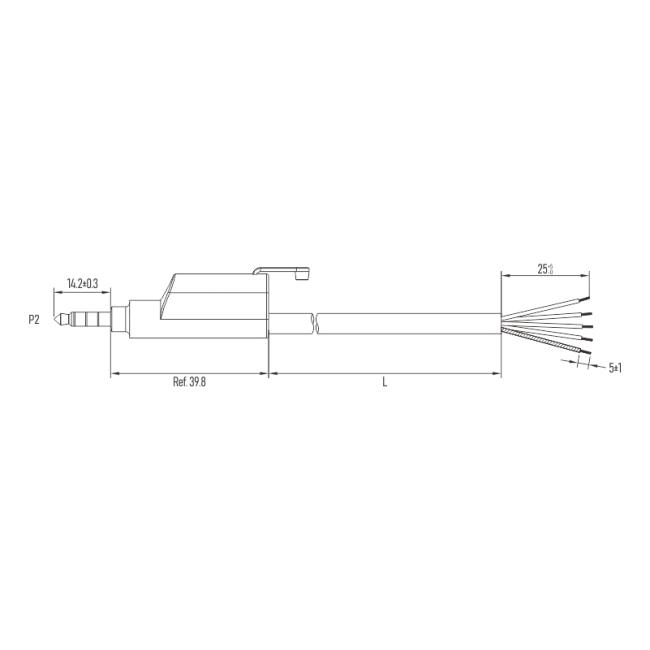

Customized 2Pin Electrical Wire Harness High Flexible 3.5 Mm Stereo Mini Plug Cable
| Connector Technical Data | |
| Contacts No. | 3.5DC Plug Male 4Pin to 3.5DC Plug Female 2Pin |
| Rated current | 1.5A |
| Rated voltage | 30V |
| Impulse voltage | 500V |
| Locking system | Snap-in |
| Termination | Soldering |
| Wire gauge | 0.14mm²(AWG 26) |
| Rated temperature | -40℃ ~ +80℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Contact | Brass |
| Contacts plating | Au(Gold) |
| Bending radius | 5×OD |
| Drag chain bending | 5000 times |
● Excellent mechanical properties
● Excellent thermal stability
● Low temperature soft good performance
● Good flame retardancy
● Of high resistance to chemicals
● Chemistry stability is good
Cableforce Core Benefits
● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Competitive pricing
● Timeline planning
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH
FAQ
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Are you a factory? where is your factory?
Yes, we are a factory, we located in Dongguan, Guangdong, China.
● Do you have certificates about the waterproof connectors?
Yes, we have CE for all waterproof connectors.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
