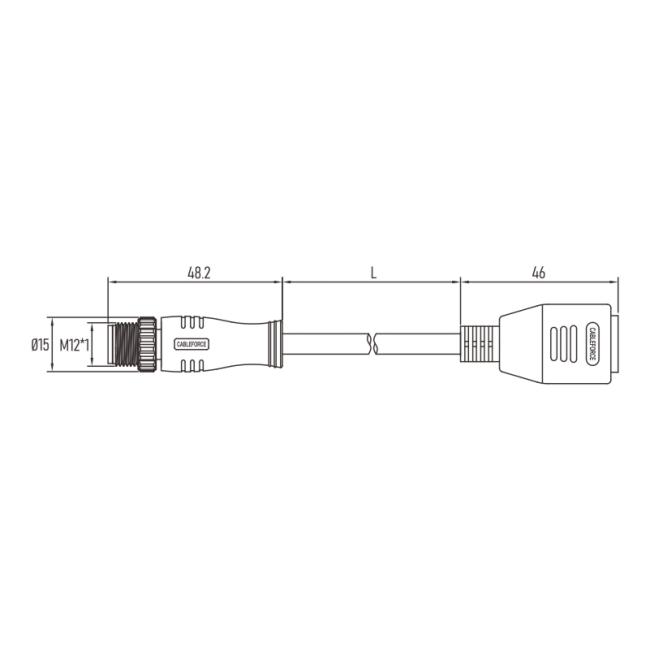

Automotive Profinet Industrial Ethernet Cable CAT 6A M12 X Coded To Rj45 Cable
|
Connector Technical Data
|
|||||||||
| Model Number | RJ6AC2MC08C1LSXSB26CG03 | ||||||||
| Contact No | 8 pin | ||||||||
| Coding |
X code
|
||||||||
| Contact Resistance | ≤5mΩ | ||||||||
|
Characteristic Impedance
|
100Ω ±15
|
||||||||
|
Wire Gauge
|
0.14mm²(AWG 26) CAT 6A
|
||||||||
|
Type
|
Profinet Industrial Ethernet Cable
|
||||||||
|
Contact Carrier
|
TPU+GF
|
||||||||
|
Screw Nut
|
Brass CNC Nickel plated
|
||||||||
|
Contact
|
Brass
|
||||||||
|
Protection Degree
|
IP67,IP68
|
||||||||
Manufacturing environments, where PROFINET is most commonly used, are characterized by having challenging environmental conditions. In that environment, standard Ethernet cables, like those you find in your office or home, might break or damage easily. Extreme temperatures, moisture, vibrations, electro magnetic interference, and many other factors contribute to the deterioration of cables.
Due to the challenging environment meant, industrial Ethernet cables are a common choice in automation facilities. On the wire, Industrial Ethernet is just Ethernet. Yet, Industrial Ethernet is characterized by rugged hardware, and its wiring is protected with shielding and jacketing.
● IP65 IP67 IP68 and UL approvals
● 8P poles are available
● TPU over molded and PA+GF or metal shell
● Anti vibrating locking screw desigh
● Operating voltage: 630
FAQ
● Is RJ45 and Ethernet the same?
RJ45 connectors are often used for ethernet networking. Ethernet cables can also be called as RJ45 cables as they have an RJ45 connector on each end. These connectors have eight coloured wires and 8 different pins.
● What is difference between PROFIBUS and Ethernet?
PROFINET is a fieldbus system which is based on Ethernet. PROFINET is one of the many industrial ethernet systems out there, which is often compared to PROFIBUS. PROFINET is a full duplex system. Because it's ethernet based, PROFINET can operate on a much higher transmission speed than PROFIBUS.
●What is an Ethernet connector?
Typically, Ethernet cables are used to provide an internet connection, connect devices to a local network. They plug into Ethernet ports on a variety of devices. The most common use for an Ethernet cable is connecting a WiFi router or modem to the internet entry port or telephone line.
