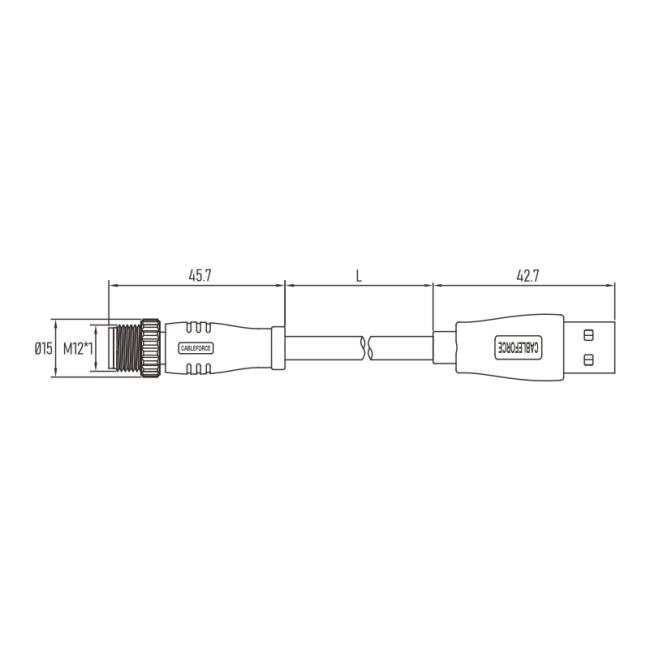

1A 30V M12 To USB Cable AWG 24 IEC 61076 2 101 Standard IP60
| Connector Technical Data | |
| Contacts No. | M12 A Code Male 12Pin to USB 3.0 Male |
| Reference standard | IEC 61076-2-101 |
| Rated current | 1A |
| Rated voltage | 30V |
| Impulse voltage | 500V |
| Locking system | M12×1.0 screw |
| Termination | Soldering |
| Cable specification | 0.25mm²(AWG 24) |
| Rated temperature | Flexible: -40℃ ~ +75℃ |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤10mΩ |
| Over-molding | TPU |
| Contact carrier | TPU+GF |
| Screw nut | Brass, CNC, Nickel-plated |
| Contact | Brass |
| Contacts plating | Au(Gold) |
| O-ring | FKM, Silicon |
| Protection degree | IP60 |
| Pollution degree | 2 |
CABLEFORCE Product Features
● Cable length optional: 0.3, 0.6, 1, 1.8, 2, 3M
● Cable material optional: PVC, PUR
● Un-Shielded and EMI-Shielded is available
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements
Cableforce Core Benefits
● Free technical consultation
● Free technical drawings
● Samples & prototyping
● Custom labels & packaging
● Using best in class materials
● Certified cables on request
● Quality control & 100% testing
● Guaranteed for life
● Safe and reliable system that is easy to install
● CE, IP67, UL certified
● Manufactured, assembled and tested in our facility
● Excellent weathering, UV and temperature resistance
● High impact strength even
● Ingress protection up to lP68
● Vibration proof connections
● RoHS and REACH compliant
● Excellent chemical resistance: to fuels, oils, alkalies, weak acids
● Free of halogen, LSZH
FAQ
● What is M12 connector?
The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.
● Are all M12 connectors the same?
Several styles of coding exist in M12 connectors. This coding prevents incorrect mating on products. In addition, shielding is available in most coded M12 connectors. For example, X-coded connectors are specifically shielded by the design of their coding.
● Can i have a sample for test?
Yes, sample order is welcomed, the lead time will be 3-7 days according to your request.
● Do you accept OEM & ODM service?
Yes, we accept OEM service. We wil produce according to your requirment. ODM are also welcomed. Our enginers have more than 10 years experience for waterproof connector industry. We provide our best service for your refer.
