Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration

Product Description

MFOG103PT FOG is an angular rate sensor that integrates optics, structure, and electricity. Based on the Sagnac effect, it integrates a variety of high-reliability micro-nano fiber optic devices, and feeds back the detection process by detecting the phase difference between two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components, and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, shock resistance, fast start-up, small size, light weight, and high reliability. It can be used for control and measurement of motion carriers.

Technical parameters

Range	±350°/s
Scale Factor	6±0.6mv/°/s
Zero-bias stability	≤1°/h(10s, 1σ)
Angular random walk	≤0.02°/√h
Zero-bias stability at full temperature(-45 ℃ ~ + 70 ℃)	≤1°/h(10s, 1σ)
3dB Bandwidth	≥1000Hz
Power supply	5±0.25V
Power Consumption	≤1W
Working temperature	-45~+70℃
Shock	≥1500g
Vibration	20 ~ 2000Hz, 0.04g²/Hz
Dimension	606017mm
Weight	≤70g

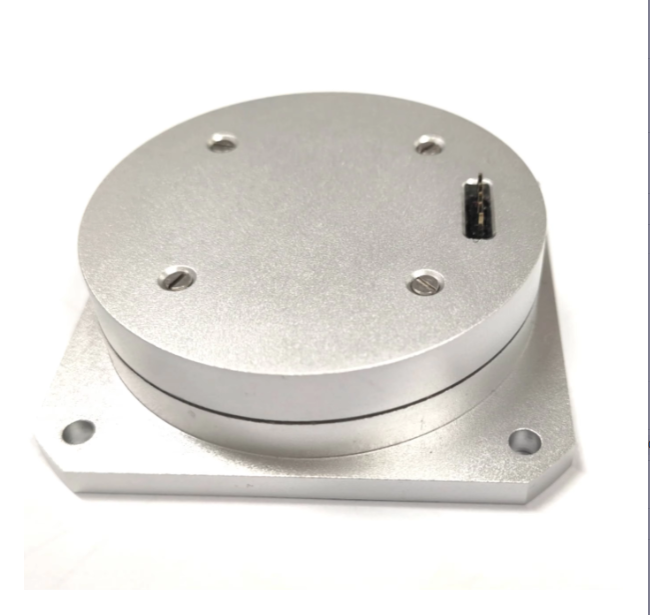

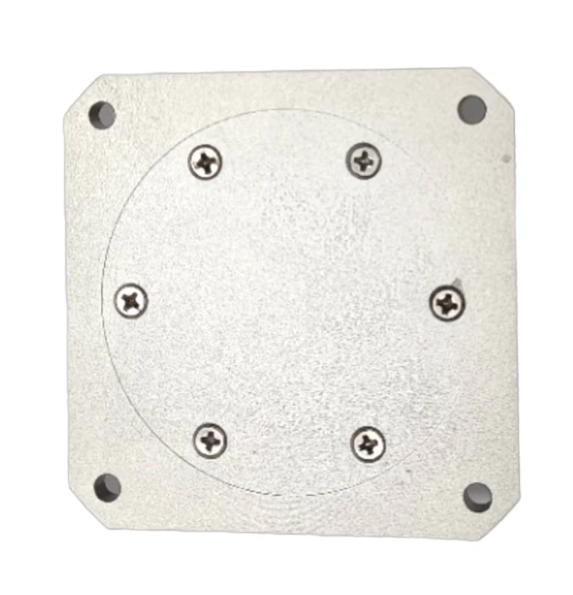

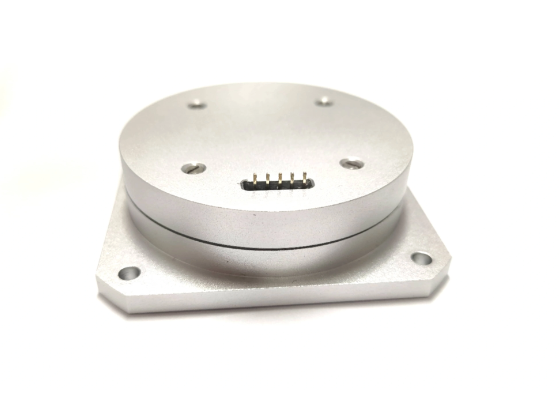

Detail Photo
