Fiber Optic Gyro Integrated with Inertial Measurement Unit for Gimbal
Price:
Negotiable
MOQ:
1
Delivery Time:
10 days for sample
Brand:
Firepower
Product Description
Fiber Optic Gyro Integrated with Inertial Measurement Unit for Gimbal
The MFOG-103 Fiber Optic Gyroscope utilizes the Sagnac effect to deliver precise rotation measurements. Its micro-nano fiber design ensures high stability, fast startup, and low noise performance.
Key Specifications
| Serial number | Project | Performance indicators |
|---|---|---|
| 1 | Range (°/s) | ±350 |
| 2 | Scale factor (mV/ o /s) | 6±0.6 |
| 3 | Zero-bias stability (10s, 1σ, o /H) | ≤1 |
| 4 | Zero-bias repeatability (1σ, o /H) | ≤1 |
| 6 | 3dB Bandwidth (Hz) | ≥1000 |
| 7 | Random walk ( o /√ H) | ≤0.02 |
| 8 | Power supply (V) | 5+0.25 |
| 9 | Power Consumption (W) | ≤1 |
| 10 | Impact (g) | ≥1500 |
| 11 | Acceleration (g) | ≥70 |
| 12 | Service Life (years) (calculated assessment) | ≥15 |
| 13 | MTBF (Calculated Assessment) | ≥100000 |
Product Features
- Compact and durable design (60×60×17mm, ≤80g)
- Reliable performance across extreme temperatures (-40℃ to +70℃)
- Resistant to 20g random vibration
- Ideal for UAVs, vehicles, aerospace, and defense applications
- Seamless replacement for Fizoptika VG103 in advanced navigation systems

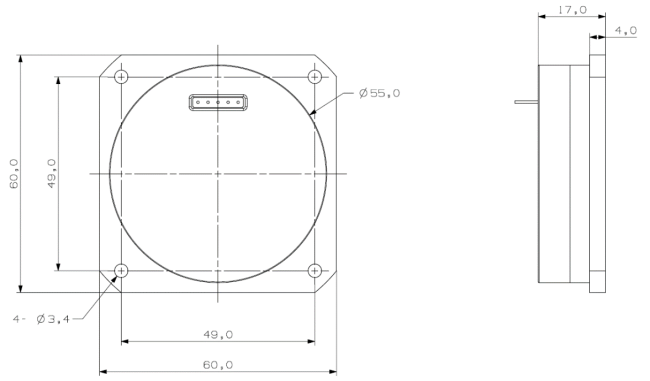

Installation Surface
