450fps 24 Inch 8.7mm Infrared Touch Frame Optional Touch Points
Price:
negotiable
MOQ:
Negotiable
Delivery Time:
5-8 work days
Brand:
Master Touch
Product Description
24 Inch 8.7mm Optional Touch Points Infrared Touch Frame Without Glass
1. Product Description
MST 24 inch infrared touch frame is a touch device that adopts the principle of infrared touch sensing technology. You can add an infrared frame to the edge of any flat screen, curved screen, cylindrical screen, etc., to realize multi-touch, writing, graffiti, interaction, which can make the presentation more vivid and intuitive, and the audience can understand it more deeply.
2. Basic Specification
2.1 Touch Panel
| Size | 24'' |
| Dimension | 19mm width (with frame.without glass); 24-52” with 8.7mm thickness, 55”-110” with 9.5mm thickess |
| Number of Touch Points | 2, 4, 6, 10, 12, 16, 32, 40(optional) |
| Minimum Touch Object | 5mm |
| Touch Activation Force | No minimum touch pressure required |
| Touch Durability | Unlimited |
| Resolution | 32768*32768 |
| Driver Free | HID* compatible, up to 40 touch points |
| Linearity Deviation | ±1mm |
| Fault Tolerance | Workable even 75% sensors are damaged |
| Frames per Second | Up to 450 fps |
| Typical Response Time | 3-10ms |
| Light Transmission | 100% without glass |
| Operating Systems | Windows®7, Windows®8,Windows®10, Vista, XP, Mac® OS, Linux, Android |
| Protocols | HID, TUIO, Flash |
| Re-development | Provide free SDK, support C/C++, C#, Java etc. |
| Warranty | 2 years limited warranty on parts and labor |
2.2 Electrical Characteristics
| Power Supply | Single USB Connection |
| Low Power Consumption | Operating ≤2W, Stand By ≤ 250mW |
| ESD | Per EN61000-4-21995; Level 4 Contact Discharge 8kV, Air Discharge 15kV 15kV on USB Connector pins |
2.3 Environment Characteristics
| Temperature | Operating Temperature: -20°C~70°C Storage Temperature: -40°C~85°C |
| Humidity | Operating Humidity: 10%~90%RH(Non-condensing) Storage Humidity: 10%~90%RH |
| Certification | FC, CE, RoHS |

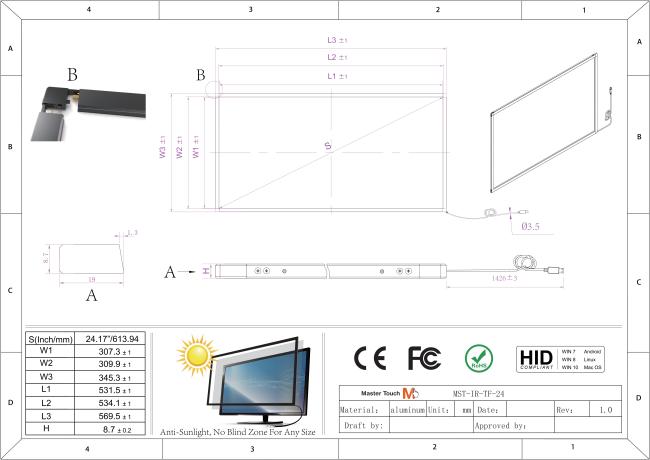

3. Drawing
4. Features
High-end Multi-touch experience (truly support 2/4/6/10/12/16/32/40 simultaneous touch points);
Strong ambient light immunity up to 150,000lux;
Fast response;
Support remote control and remote diagnosis;
Easy Integration;
HID* plug & play driver free capability
5. Applications
Digital Signage, Kiosk, Exhibitions, TV Channels, Education Whiteboard, Command Center and Boardroom, Commercial Transportation
6. Details
7. FAQ
