350 Nits 15 Inch Touch Screen Monitor Hdmi Bracket Mount High Brightness Touch Monitor
iTAYFT 15 Inch 350 Nits Brightness Touch Monitor with Bracket Mount
1. Product Description
iTAYFT innovative solutions in touch screen technology are used across an incredibly diverse range of markets, as embedded solutions in appliance control panels, monitors, all-in-one computers, kiosks and various industrial devices, etc.
One of the most common ways to use a Touch Monitor in public places is the installation of self-service and outdoor kiosks, which combine a variety of functions: information and reference, trading, communication, and entertainment.
2. Technical Datasheet
2.1 LCD
| Size | 15" TFT LCD | ||||
| Maximum Resolution | 1024 x 768 | ||||
| Contrast Ratio | 800:1 | ||||
| Brightness (Backlight Type) | 350 nits (No Touch), 315 nits (Projected Capacitive) | ||||
| View Angle | H:160°, V:160° | ||||
2.2 Touch Spec.
| Touch Screen | Projected Capacitive | ||||
| Touch Points | 10 | ||||
| Touch Screen Interface | USB-HID (Type B) | ||||
2.3 IO Ports
| USB Port | 1 x USB 2.0 (Type B) for Touch Interface (USB-HID) | |||
| Video Port | 1 x VGA (DB15), DP x 1, HDMI x 1 | |||
| Audio Port | 1 x Audio-Out (via HDMI/DP signal) | |||
| Power Input | 1 x 12V DC Jack with lock | |||
2.4 Physical Properties
| Power Supply | DC 12V with lock External Power | |||
| Housing Color | Black | |||
| Material | Glass, Plastic (ABS), SECC Metal | |||
| Compliance | Front Side IP65 Compliant | |||
| Dimensions (W x H x D) mm | 364.0 x 290.9 x 41.4 | |||
| Net Weight (kg) | 2.98 kg | |||
| Gross Weight (kg) | 4.25 kg | |||
| Carton (W x H x D) mm | 460 x 410 x 175 | |||
| VESA | 100 x 100 mm | |||
| Ball Drop | UL60950(500g/1.3m) and IK08 | |||
2.5 Environment Requirement
| Operating Temperature | 0°C ~ 50°C, 20% ~ 80% RH. Non-Condensing | ||||
| Storage Temperature | -20°C ~ 60°C, 10% ~ 95% RH. Non-Condensing | ||||

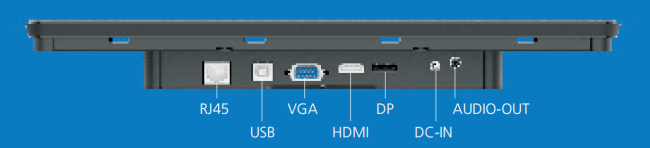

3. IO Ports
4. Apllications
Industrial field,
Retail, Signal signage,
Medical field,
Financial,
Check-in, etc.
5. Details
6. FAQ
