iTAYFT 23.8 Inch Aluminum High Contrast Ratio Embedded Touch Monitor
1. Product Description
iTAYFT LCD Monitors suited for industrial and commercial applications. Panel mount, Rack mount, Sunlight Readable, Marine & Open Frame designs are available as standard off-the-shelf products in 10'' up to 50'' diagonal sizes.
Our Rugged Industrial LCD products are constructed from solid steel and stainless steel for corrosion resistance applications. Displays can be custom configured with PCAP Touch Screen, DC power supplies, Stainless Steel bezels and extended warranty options are available.
2. Technical Datasheet
2.1 LCD
| Size | 23.8" TFT LCD | ||||
| Maximum Resolution | 1920 x 1080 | ||||
| Contrast Ratio | 3000:1 | ||||
| Brightness (Backlight Type) | 250 nits (No Touch), 225 nits (Projected Capacitive) | ||||
| View Angle | H:178°, V:178° | ||||
2.2 Touch Spec.
| Touch Screen | Projected Capacitive | ||||
| Touch Points | 10 | ||||
| Touch Screen Interface | USB-HID (Type B) | ||||
2.3 IO Ports
| USB Port | 1 x USB 2.0 (Type B) for Touch Interface (USB-HID) | ||||
| Video Port | 1 x VGA (DB15), 1 x DP, 1 x HDMI | ||||
| Audio Port | Line-Out | ||||
| Power Input | 1 x 12 VDC Jack with lock | ||||
2.4 Physical Properties
| Power Supply | 36 W (12VDC, 3A) External Power Adaptor | ||||
| Housing Color | Black | ||||
| Material | Glass, Plastic (ABS), SECC Metal | ||||
| Compliance | Front Panel IP65 Compliant | ||||
| Dimensions (W x H x D) mm | 575.0 x 347.0 x 42.4 | ||||
| Net Weight (kg) | 5.8 kg | ||||
| Gross Weight (kg) | 8.0 kg | ||||
| Carton (W x H x D) mm | 685 x 455 x 150 | ||||
| VESA | 100 x 100 mm | ||||
| Ball Drop | UL60950(500g/1.3m) and IK08 | ||||
2.5 Environment Requirement
| Operating Temperature | 0°C ~ 40°C, 20% ~ 80% RH. Non-Condensing | ||||
| Storage Temperature | -20°C ~ 60°C, 10% ~ 95% RH. Non-Condensing | ||||

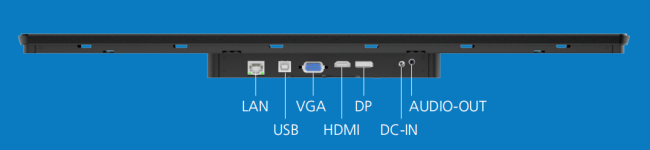

3. IO Ports
4. Apllications
Industrial field,
Retail, Signal signage,
Medical field,
Financial,
Check-in, etc.
5. Details
6. FAQ
