Customized 5V Interactive Industrial Touch Screen 43 Inch Waterproof
Master Touch Customized 43 Inch Interactive Industrial Touch Screen
1. Product Description
Capacitive touch screen is a world popular trend for its highest positioning and fast response, the response time is shorter than resistive touch screen, antistatic ability, save space, display is the user interface and interface mode diversity, low power, water-proof, fog-proof, design more beautiful, specially on industrial equipment and POS machine (ATM, self-service terminals, smart home and medical equipment), the touch panel is made of glass and glass, also, it has good transparent and has multi-points touching.
2. Basic Features
| Item | Feature | Remarks |
| Controller |
EETI80H84 |
- |
| Channel | TX: 54 RX: 80 | - |
| Power | 5V | USB: 4.7V ~ 6.0V, Typical:5V |
| Communication | USB | USB: 2.0 Full Speed |
| Number of Touch point | 10 | - |
| O.S. | Windows/ Android/ Linux | plug and play |
| Power Consumption |
1.Active Mode: Max.120mA @ USB Input 5V 2.Idle Mode: 90mA @ USB Input 5V 3.Sleep Mode: less than 1mA @ USB Input 5V |
|
| Item | Specification | Unit |
| Viewing Area |
940.78(L)×528.8(W) |
mm |
| Cover Lense O.D. |
1010.4(L)×598.4(W) |
4. Optical Characteristics
| Item | Specification | |
| Transparency | Viewing Area | ≧85% |
| Item | Specification | Unit | ||
| Stacked structure | Cover | 3.0 | mm | |
| LOCA | 0.2 | mm | ||
| ITO | 1.1 |
mm
|
||
| Sensor Glass | ||||
| ITO | ||||
| Sensor Dimension | OD Size | X |
968.37 |
mm |
| Y |
554.61 |
mm | ||

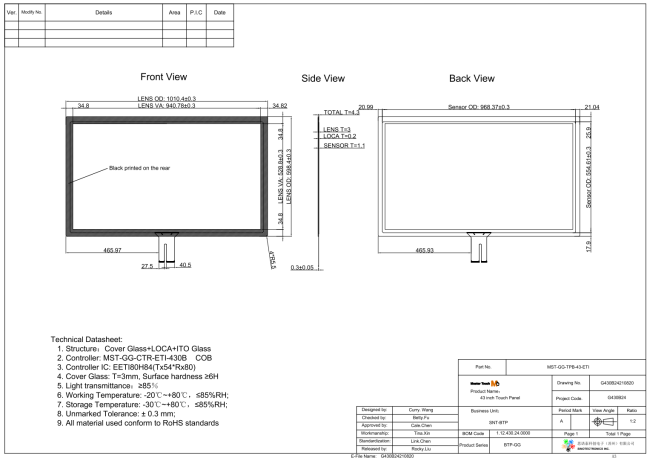

6. Drawing

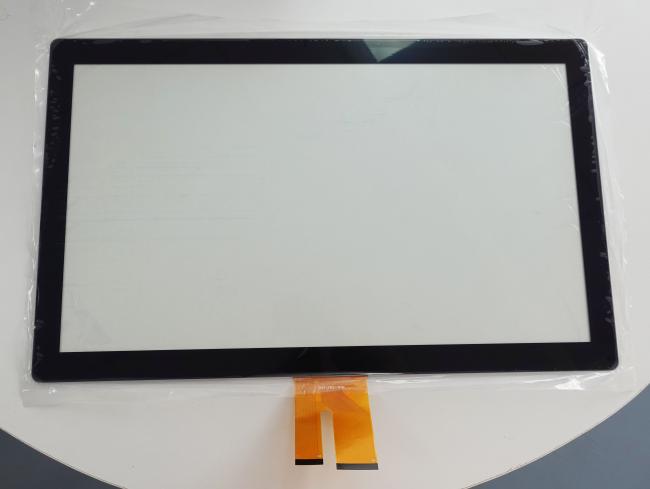

7. Details
8. Advantages of G+G Structure
(1)High transmittance,>85%.
(2)Hard and anti-wear surface.The hardness is 6H.
(3)Excellent corrosion resistance.
(4)Sensitive touch and stable performance.
9. Touch Panel FPC Test Items and Criteria
|
Test Item |
Qty (pcs) |
Touch Panel FPC Test Items and Criteria |
|
Direct PullingTest |
5 |
Test Conditions: 1. Pulling weight: 500g. 2. Pulling speed: 25 mm/min 3. Pulling angle: 90o 4. After test, verify touch panel functionality via test jig Pass Criterion: - No damage of FPC itself - No any peeling on FPC located on bonding pad area - No functional failure after test |
|
Bending test
|
5 |
Test Conditions: 1. 45 degree bending: 100 times 2. 90 degree bending: 200 times 3. After test, verify touch panel functionality via test jig Pass Criterion : - No damage of FPC itself - No any peeling on FPC located on bonding pad area - No functional failure after test |
| 5 |
Test Conditions: 1. Flex bending: 30 cycles (Each cycle: 0o -> 180o --> 0o) 2. After test, verify touch panel functionality via test jig 3. bending ф=1 mm Pass Criterion : - No damage of FPC itself - No any peeling on FPC located on bonding pad area - No functional failure after test |
