50w 1000mm Silicone Medical Device Heaters 480v Rubber Heating Element

Price Negotiable
Price: negotiable
MOQ: 1
Delivery Time: within 48 hours
Brand: Tuohe
Product Description

50w Silicone Rubber Electric Heater Heater Pad For Medical Devices​


Medical Device Silicone Heaters

Silicone rubber heater,medical silicone heating pad is limited only by the imagination. Heat can be put where it is needed. These electric industrial heating blankets improve heat transfer, speed warm ups, and decrease wattage requirements.

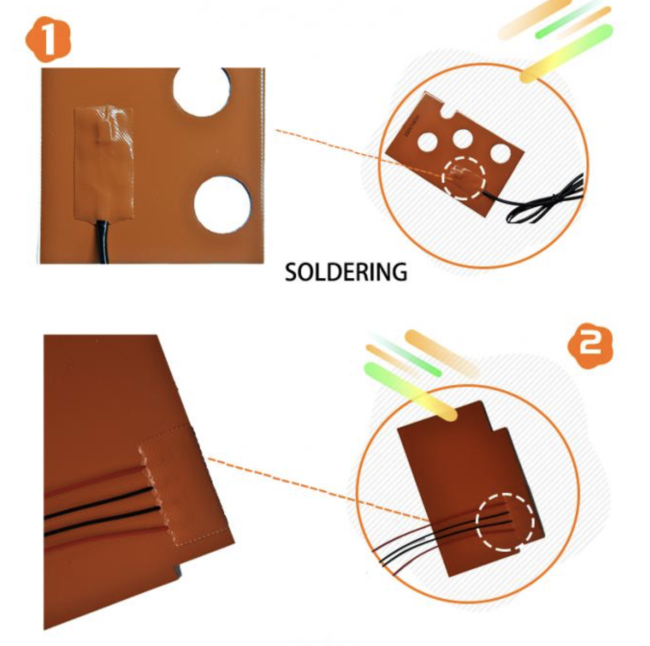

Fiberglass-reinforced silicone rubber gives the heater dimensional stability without sacrificing flexibility. Because very little material separates the element from the part, heat transfer is rapid and efficient. The silicone rubber flexible heaters are constructed with a wire-wound element and the heater construction creates a very thin heater allowing it to fit applications where space is limited.



Medical Device Silicone Heaters Details:



Technical Parameter
Rated power
w
Lead length
300mm standard, customizable
Rated voltage
12v-480v
Wire tension
15N *15N
Maximum size
1000-1200mm
Minimum size
20mm *20mm
Ambient Temperature
-60-250℃
Highest temperature
250℃
Maximum thickness
1.5mm-4mm
Withstand voltage
1.5KV
Insulation resistance
≥5MΩ
Size deviation
±0.5%
Power deviation
±5%
Wire type
Silicone braided wire



Accessories options for heating pads
Thermocouple
K / J / withouut
Controller
Dial / Digital / Anti-explosion
Plug
American Standard / European Standard / British Standard



Suggested Applications

  • Freeze Protection and Condensation Prevention
  • Optical Equipment
  • Exhaust Gas Pre-heating for DPF Regeneration
  • Curing of Plastic Laminates
  • Photo Processing Equipment
  • Semiconductor Processing Equipment
  • 3D Printers
  • Laboratory Research
  • LCD Displays
  • Medical Applications


Product performance
1. Excellent high temperature insulation performance, long-term temperature resistance up to 150 °C.
2. Excellent electrical insulation performance and excellent flexibility.
3. Excellent environmental performance, smokeless and tasteless when heated.
4. Excellent power generation heat conversion rate, power utilization is higher than ordinary products.
5. The heating rate is extremely fast≤ 5s and the power never declines.
