HJ-1100A-III Three Servo Automatic Slitting Machine For Rolled 1100mm 1150mm

Price Negotiable

Price: 20000dollars

MOQ: 1 tower

Delivery Time: four weeks

Brand: HJ

Product Description

HJ-1100A-III three servo fully automatic tension slitting machine

1, Parameter indicators:

1. Material type: roll like materials such as self-adhesive, paper, non-woven fabric, printing composite, etc;

2. Material thickness; 30-450g (paper)

3. Maximum width of raw materials: 1100mm

4. Roll surface width: 1150mm

5. Cutting width: 15-1150mm

6. Reeling tube core: 3 "paper tube; using 2 Duluo gas expansion shafts

7. Maximum diameter of winding: 1000mm

8. Maximum speed: 620 meters/minute

9. Cutting speed: 10-620 meters/minute

10. Total power supply: 18KW

11. Total weight: approximately 3800KG

12. External dimensions: 3600 in length, 2350 in width, and 1950mm in height

Device configuration:

Part Name	Specification and model	quantity	brand
45 # steel frame	Wall panel net thickness 40mm	1 pair	Chrome plating
3-inch inflatable shaft	Plating Luo	2 pieces
Main traction roller steel rod plating	φ 120 * 1150mm	1 piece
Main traction rubber roller polyurethane	φ 120 * 1150mm	1 piece
Hard alumina guide roller	Φ 90 * 1150mm	10 pieces
Winding servo	5.5KW	2 sets	Beauty Department
Traction servo	5.5KW	1 set	Beauty Department

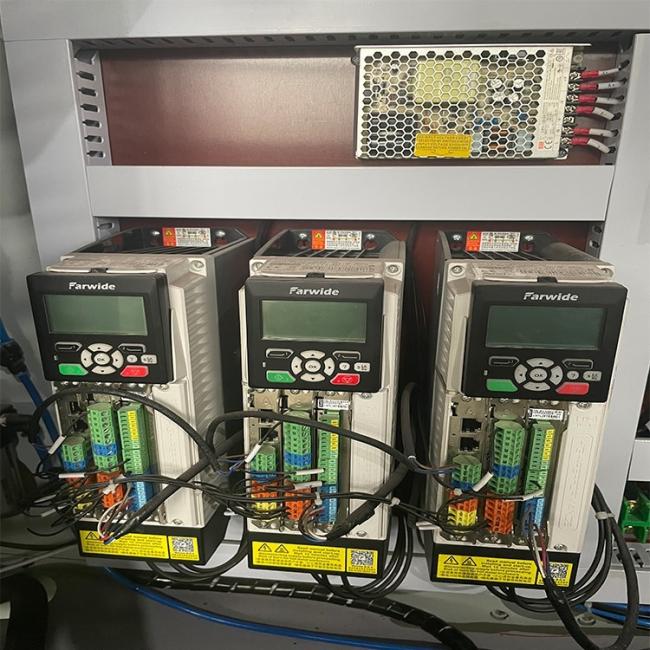

drive	5.5KW	3 units	Shenzhen Hongyuan
Waste blowing edge fan	1.5KW	1 unit	Wuxi
bearing		1 batch	HRB
Pneumatic components		1 batch
The round knife adopts heating function		1 set

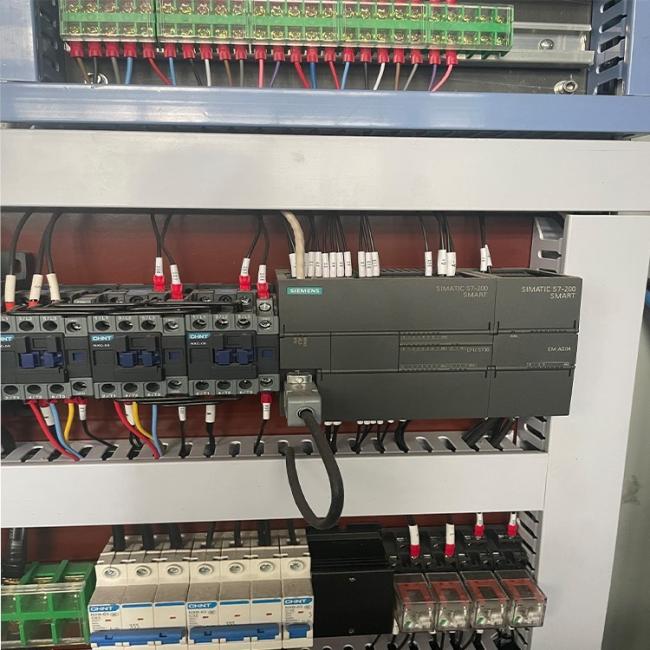

Master PLC programmable controller	TPC1061Ti	1 piece	Siemens
10 inch true color touch screen	TPC1061Ti	1 piece	Beijing Kunlun Tongshi
Proximity switch		1 piece	Japan OMRON
Low voltage apparatus		1 piece	Schneider
Switching Mode Power Supply	S100-24	1 piece	Taiwan Mingwei

3, Functional description of each part:

(1). Traction Department:

1. The traction roller is driven by a 5.5KW servo motor.

(2). Waste edge recycling device:

Use a fan to blow out the waste and waste materials, and the customer will equip a mesh box for collection.

(3). Winding mechanism: (finished product unloading is completed mechanically)

1. The cut material is independently wound using both upper and lower axes, and the slitting knife uses a circular knife for slitting (8 pairs)

2. The upper and lower winding shafts each have one 5.5KW servo motor with pneumatic expansion shaft. The winding tension is automatically controlled by Siemens PLC based on the current coil diameter, ensuring that the finished materials are neat when multiple slits are cut. All coil end faces are flat, and the flatness of the disc surface is freely selected by the pneumatic pressure roller and the self weight pressure roller for cutting. The tightness of the inner and outer layers of the finished coil is controllable, which is a spiral winding method. As the winding diameter continues to increase, the PLC automatically controls the speed of the winding servo motor to decrease.

5. Discharge device

Adopting a shaftless hydraulic automatic feeding structure

(1) One pair of discharge chassis

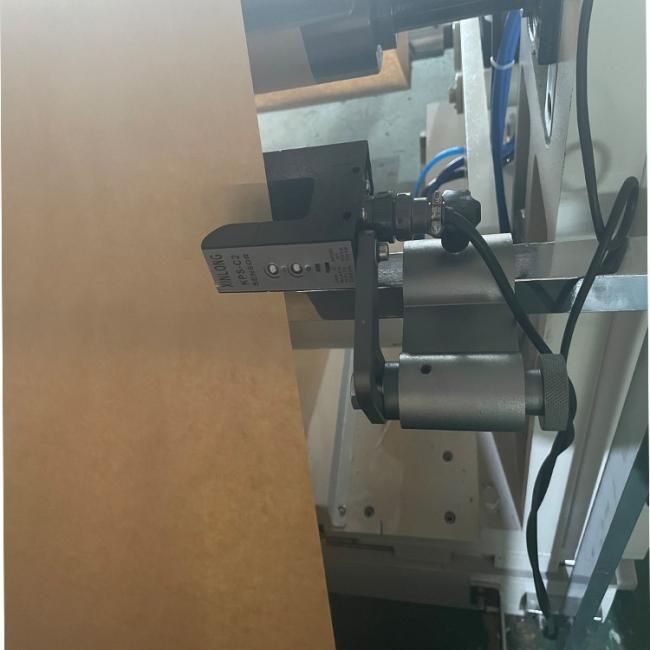

(2) 1 set of analog correction motor

(3) Guide rail 35 model 8 pieces

(4) One pair of high-quality steel is used for the 40 thick memorial archway

(5) 1 pair of lifting swing arms

(6) Cylinder 4 pairs

(7) 1 pair of non axis top cones

(8) Air brake 1 pair

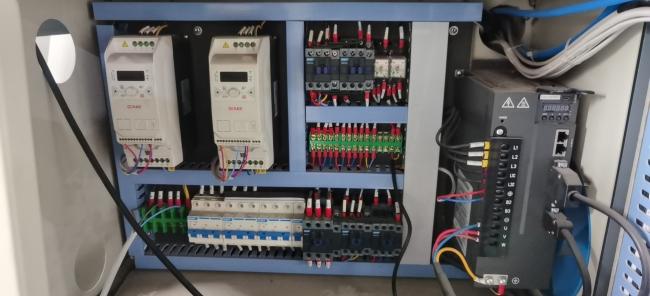

Electrical equipment adopts

Chint Group is used for low-voltage electrical appliances, Snyder is used for button switches, Siemens is used for PLC, and the operating system of the whole machine is controlled

4, Machine Part Location

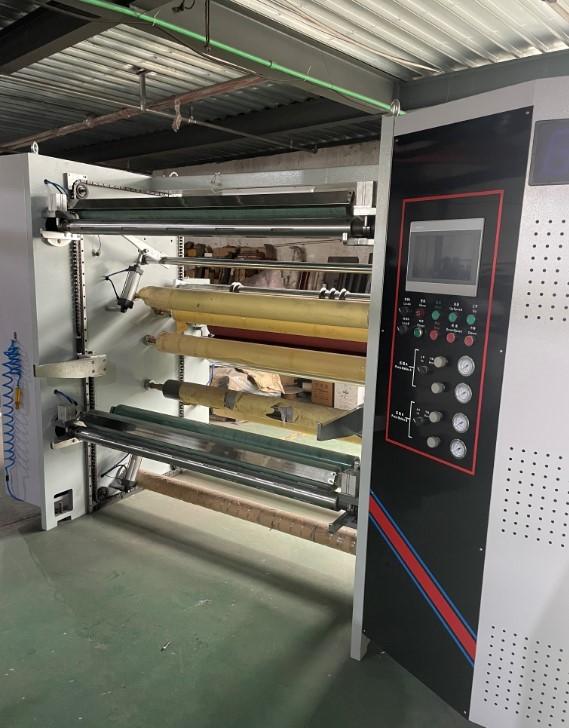

Overall appearance
