70-260mm Paper Handle Making Machine 20-80 Pcs/Min
Price:
5
MOQ:
1 set
Delivery Time:
15
Brand:
haijing
Product Description

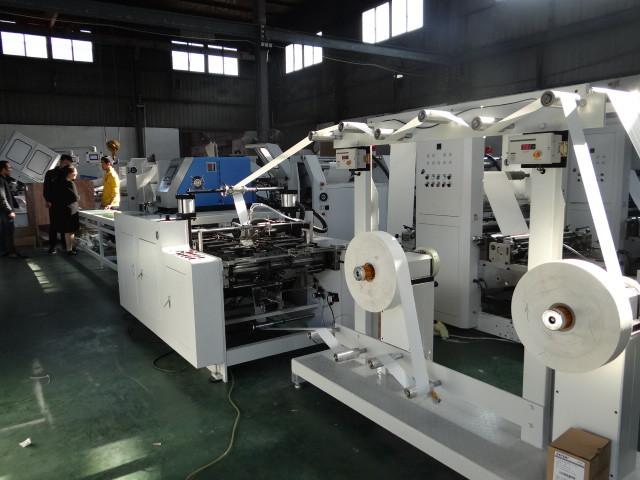

Paper Handle making Machine (Water-based glue type)
Introduction:

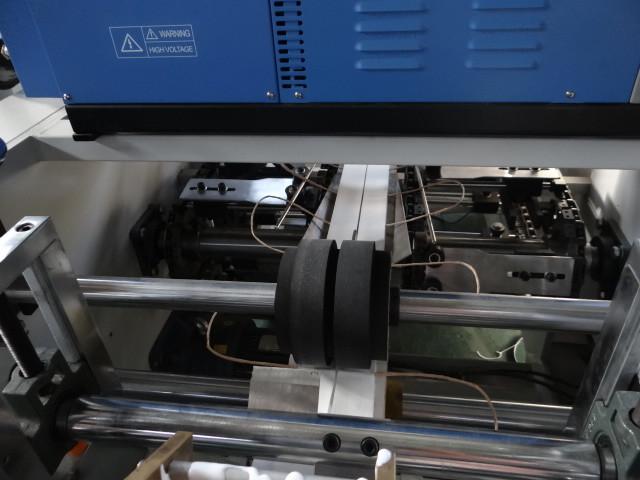

machine was developed specifically for the new generation of paper Handle Machine. This machine is sandwiched

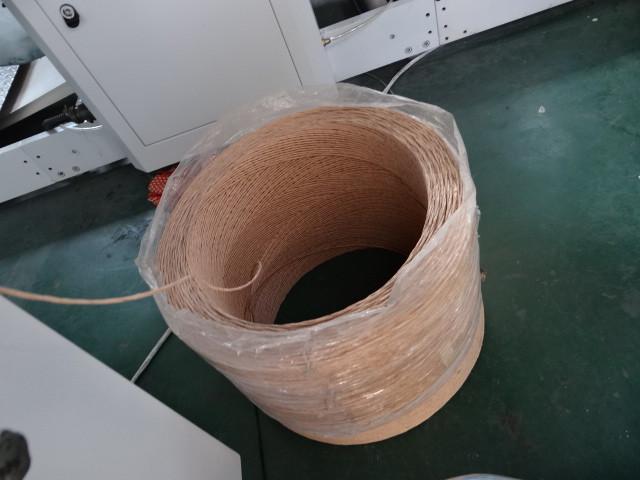

between two layers of kraft paper rope middle, after gluing, lamination, and then automatically cut into a single
handle. Paper bag machine is the ideal complementary product lines.
Features:
1. Water-based adhesive has low cost and is not easy to fall off at
low temperature.
2. easy to operate, fast.
Technical Parameter:
Type
LRP-W
(W)
Handle Spacing (W)
57 mm
76 mm
95 mm
114 mm
L)
Paper Board Length(L)
114 mm
152 mm
190 mm
228 mm
(h)
Paper Board Width(h)
30-40 mm
(D)
Rope Diameter(D)
3-5 mm
(H)
Rope Height(H)
100 mm
Max.Speed
200 pcs/min
Paper Thickness
100-150 gsm
Paper Roll Width
60-80 mm
Max.Roll diameter
1000 mm
Reel inner diameter
76 mm
Total Power
4.5 Kw
Weight of Machine
1500 kg
Overall Dimension(LxWxH)
4700×1300×1500 mm
