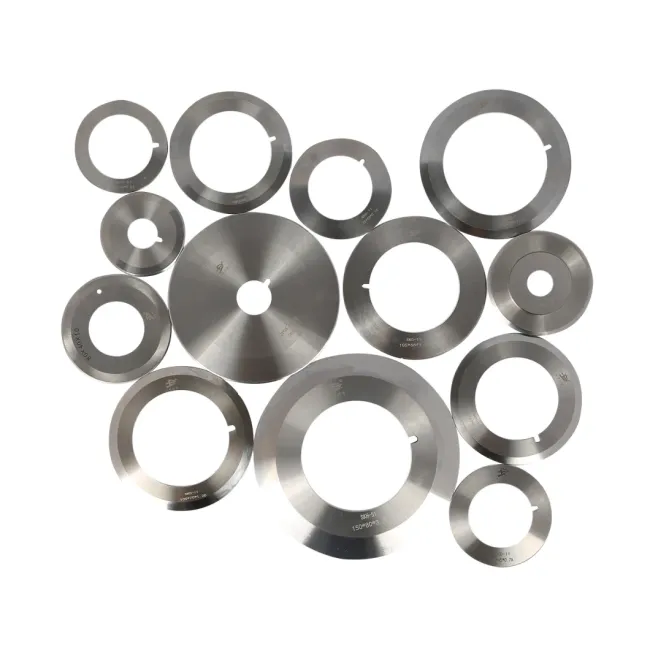

Rotary Die Cutting Metal Slitting Round Blades Industrial Copper Aluminum Foil
Rotary Die cutting Blade metal cutting slitting blade
Industrial Round Blades for Cutting Copper Aluminum Foil
| Specifications |
Customized
|
| Material |
Tungsten Carbide(YG12),SKD-51,W6Mo5Cr4V2,D2 and so on
|
| Advantage |
Burr-free, Widely Applied
|
| Thickness |
0.8-1.5mm, Customized thickness available
|
| Inner diameter |
25.4, 32, 38mm
|
| Outer diameter |
OD160 - 610mm, customized size is available
|
| Knife edge |
45 °,could be adjusted according to your requirement
|
| Design |
single edge and double edge are available
|
| Appliacation |
Paper, film, foam, rubber,foil, graphite and so on
|
|
Standard size( Customized size is available)
|
|||||
| Specification | Outer diameter | Inner diameter | Thickness | Knife edge type | Material |
| Disc type knife | |||||
| 75x45x1.2 | Φ75 | Φ45 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| 90x60x1.2 | Φ90 | Φ60 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| 105x70x1.2 | Φ105 | Φ70 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| 105x75x1.2 | Φ105 | Φ75 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| 110x75x1.2 | Φ110 | Φ75 | 1.2T | Single/double side | W6Mo5Cr4V2/SKH-51/SKD-11 |
| Flat round knife | |||||
| 80x40x1.0 | Φ80 | Φ40 | 1.0T | Single/double side | W6Mo5Cr4V2/SKH-51/YG12/SKD-11 |
| 90x60x1.0 | Φ90 | Φ60 | 1.0T | Single/double side | W6Mo5Cr4V2/SKH-51/YG12/SKD-11 |
| 120x40x1.0 | Φ120 | Φ40 | 1.0T | Single/double side | W6Mo5Cr4V2/SKH-51/YG12/SKD-11 |
|
half cut-off slitting knife
|
|||||
| 70x50x1.0 | Φ70 | Φ50 | 1.0T | double side | YG12/SKH-51 |
| 80x50x1.0 | Φ80 | Φ50 | 1.0T | double side | YG12/SKH-51 |
| 100x60x1.0 | Φ100 | Φ60 | 1.0T | double side | SKH-51 |

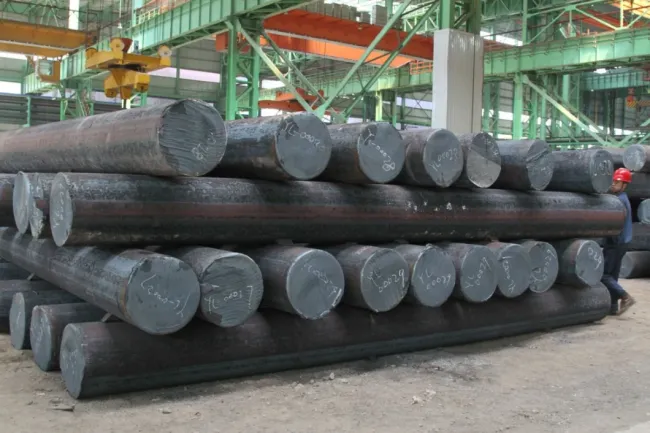

Materials are the foundation of products, and the company cooperates with many domestic and foreign suppliers of honest materials. In order to ensure the quality, the raw materials are subjected to multi-layer sorting, the materials are stable and the quality is consistent.
Heat treatment is the "soul" of the product and the key to the product. The company took the lead in introducing the "vacuum heat treatment" technology. The blade is not deformed, and the hardness, toughness and wear resistance of the product reach the best

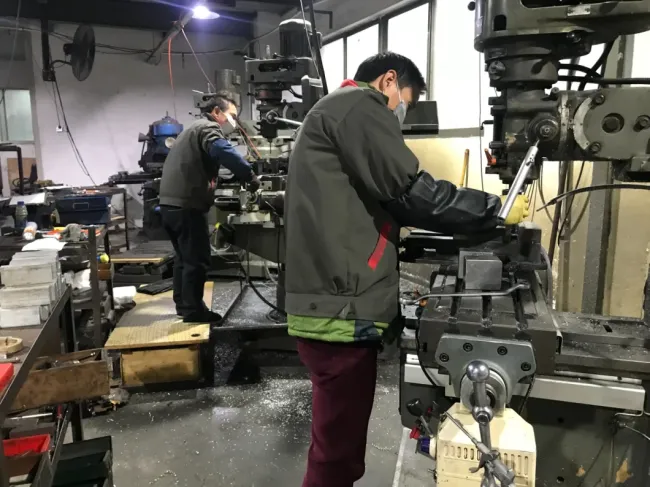

Professional grinding masters and independent research and development team to meet various customer needs. The product undergoes multiple processes, professional grinding and polishing, and excellent workmanship. The precision of imported equipment can reach ±0.01-0.02mm. It has made outstanding contributions to the medical, lithium battery, film adhesive and other industries.
The company uses optics, radiographic flaw detection and other technologies for product inspection, and each product can be put into the warehouse after passing the inspection.
we will pack the blades according to different kinds of blades to blades to avoid any damage.during transportation,please handle gently.
high-precision grinding equipment and testing equipment which are used in processes from raw material
to finished products.
We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.
Our Products have been exported to more than 40 countries in the world. Products are used in many industries such as
electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
