DOOH Media P4mm Taxi Top LED Display Smart Broadcast Taxi Top Display
DOOH Media P4 4mm Taxi Top LED Display Smart Broadcast Taxi Top Display
Description
3U View Taxi Top LED Display is a new mobile media platform that could display advertising and news coverage. Same commercial material can be released and played simultaneously on various platforms; vice versa, different commercial materials on different platforms. It can satisfy both large-scale and individuation. 3U View Taxi Top LED Display let your advertising go through every block of the city!
Advantage
1. The display size is 960*320mm2, it is large enough to make the advertising effect has better presentation.
2. The Double-sided design, let pedestrians on both sides of the block can clearly see your advertisement.
3. Using outdoor highlighted led, advertising can still achieve the best display effect during the daylight.
4. Double-sided Taxi Top LED Display adopts anti-UV and anti-glaring PC protection cover, it completely avoids the defect that traditional LED vehicle display screen will reflect light.
5. The screen is equipped with a temperature control fan, when the screen internal temperature reaches more than 40 degrees, the temperature control fan will automatically start to adjust the screen internal temperature.
Product Parameters
| Pixel Pitch | 4mm | Refresh Rate | 5120H |
| Display Size | 960*320mm | Viewing Angle | V140°H140° |
| Module Size | 320*160mm | Cabinet Material | Aluminium |
| Screen Resolution | 240*80*2 | Cabinet Color | Black |
| Cabinet Size | 1010(L)*386(H)*139(W)mm | Cabinet Weight | 18kg |
| Brightness | ≥5000cd/m2 | Control System | Android+4G+AP+WiFi+GPS+8GB Flash |
| Ave.Power(≤W/set) | 100W | Supported Formats | JPG,GIF, BMP, WMF, MP4 |
| Ingress Protection | IP56 | Environmental Requirements |
Temperature: - 40℃~+80℃ Humidity: 10%~95%RH |
| Input Voltage | DC 9~36V | Driving Method | 1/10 |
| Output Voltage | DC 5V | Screen Lifespan | ＞100000 hours |

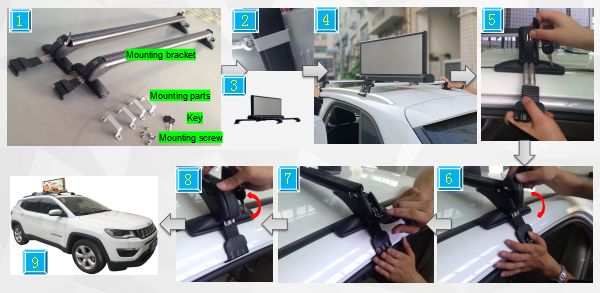

Installation Instruction

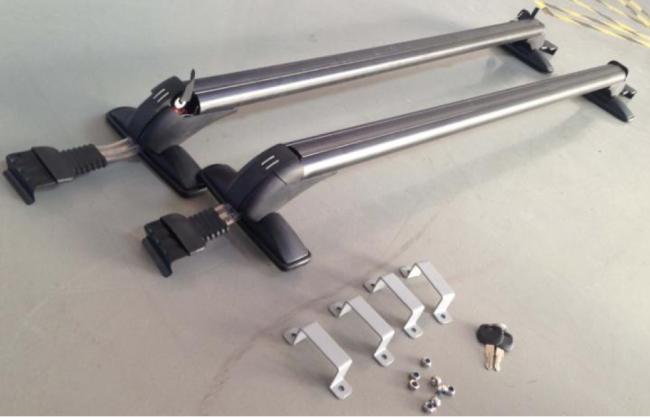

1. We used a custom luggage rack to attach the Taxi Top LED Display to the car, which is seamlessly connected with the car without affecting the closing of the window.
2. An anti-theft lock on the luggage rack to prevent someone from removing your led screen without permission.
3. The power supply connection is easy. The yellow line is connected to the positive pole of the battery and the black line is connected to the negative pole of the battery. The white line is connected to the cigarette lighter on the car. After the car launch, press the red button and the display will work.
4. In order to protect other equipment on the car, the led screen has a delayed start function.
5. It is worth mentioning that the power cord adopts 6 square silica gel copper wire, which makes the power cord have a longer service life. Under high or low temperature areas, the power cord will not be cracked, which will affect the use of led screen.
FAQ
Q: Can I have a sample order for Taxi Top LED Display?
A: Yes, we welcome sample order to test and check quality. One set sample is acceptable.
Q: How to proceed an order for Taxi Top LED Display?
A: 1. Let us know your requirements or application and your car parameters.
2. We quote according to your requirements or our suggestions.
3. Confirms the samples and places deposit for formal order.
4. We arrange the production.
Q: What is your delivery time?
A: We will deliver in 3-25 work days.

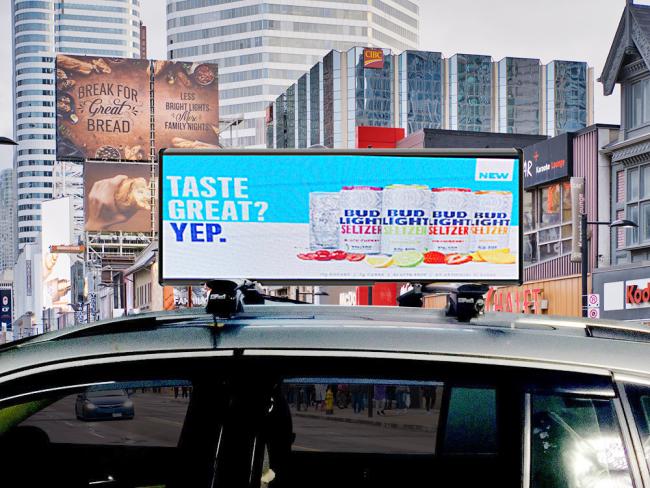

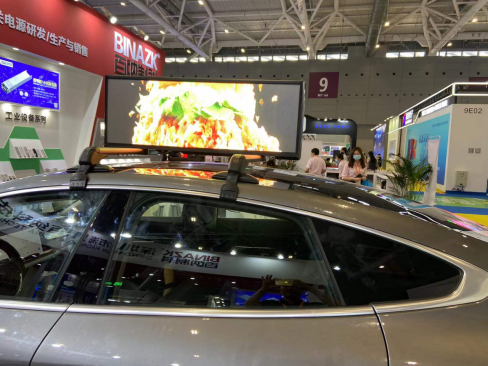

Taxi Top LED Display Case
