Outdoor Advertising Media Bus Led Screen Black Cabinet 4g Wifi
Outdoor Advertising Media P5.625 Bus LED Screen Black Cabinet 4G WiFi
Description
Bus LED Screen is an extension of advertising media LED, used for outdoor information announcements, image advertisements, event advertisements, information media. Compared with ordinary LED displays, vehicle LED screen have higher requirements for stability, anti-interference, and anti-vibration. It is a win-win mode to create new profits for the bus company and advertisement company , also help businesses to show their brands and products anytime and anywhere.
Advantages
1. The display size of Bus LED Screen is 1620*360mm2, it is large enough to make the ads has better display effect.
2. Bus LED Screen is full RGB colorful and high brightness, displaying vivid video and sharp image, attract the pedestrian sight.
3. The screen is equipped with a temperature control fan, when the screen internal temperature reaches more than 40 degrees, the control fan will automatically start to adjust the screen temperature.
Product Parameters
| Pixel Pitch | 5.625mm | Cabinet Material | Iron |
| Display Size | 1620*360mm | Cabinet Color | Black |
| Module Size | 360*180mm | Cabinet Weight | 11KG/PCS |
| Screen Resolution | 288*64 | Viewing Angle | 120°/120° |
| Module Resolution | 64*32 | Refresh Rate | 1920Hz |
| Cabinet Size | 1625*375*60 | Brightness | 4500 cd/m2 |
| Max. Power (≤W/ set) | 500W | Driving Method | 1/8 |
| Ave. Power (≤W/ set) | 150W | Supported Formats | JPG,GIF ,BMP, WMF,MP4 |
| Input Voltage | 24V | Screen lifespan | ＞100000 hours |
| Output Voltage | 5V | Environmental Requirements |
Temperature: - 40℃ ~ + 80 ℃ Humidity: 10% ~ 95% RH |
FAQ
Q: What sizes of Bus LED Screen do you have?
A: Our Bus LED Screen has five sizes, P3.75, P4, P4.35, P5 and P5.625.
Q: Can you customize the size of your Bus LED Screen?
A: Yes, we can customize the screen according to the actual size of the rear window of the Bus.
Q: What is the voltage of your Bus LED Screen?
A: The voltage of our Bus LED Screen is 24V.
Q: Can the cabinet of the Bus LED Screen be changed to a lighter and thinner material?
A: Of course. According to your application scenario and the size that your need, we can provide customized product.
Main Compositon Introduction
The power cord of the main power supply is made of GB/T18380.22-2008 and GB/T18380.31 standard flame retardant material. It is made of pure copper national standard material with low resistance value to ensure that its electrical conductivity to reach the best state.

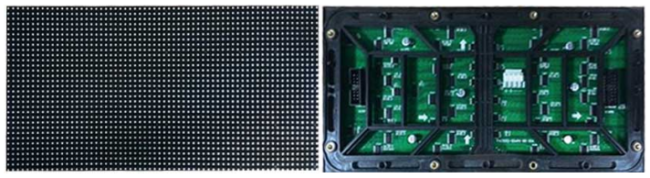

The anti-UV protection cover of the module is made of PC material to ensure the flexibility and consistency of the appearance. The flame retardant grade reaches B1 level.

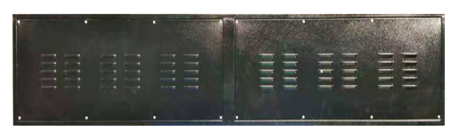

1. The cabinet is made of high strength cold rolled steel plate by stamping, bending and welding machine.
2. The appearance of the cabinet adopts modern paint technology, which is smooth and the color is uniform.
3. The bracket is customized according to the actual environment in the bus. It won’t have any changes to the car body, which ensure the safety and reliability.
Bus LED Screen Case
