1. The smart water supply and control system is applicable to:

(a) Water supply for IPX1~IPX6 waterproof test

(b) Automatic control for the whole IPX1~IPX6 waterproof equipment

2. Water supply method: constant temperature water supply, constant flow water supply, constant pressure water supply

3. Water supply control process: After user preset the water temperature value, water flow value and water pressure value on the touch screen, electronic meters or digital pressure gauge real-time monitor the current values, read the values into PLC through the data conversion, then automatically adjust the rotational speed of pump through the frequency converter.

4. There are large flow and small flow two ways water supply.

5. Large flow water supply:

(a) It is applicable to IPX5~IPX6 strong water spray test

(b) Flow range: 10~100L/min

(c) Flow accuracy: ±0.5L/min

(d) Flowmeter: LWGY-15 type turbine flowmeter

(e) Water pump: CHL8-60L6WBC type stainless steel centrifugal pump

6. Small flow water supply:

(a) It is applicable to IPX1~IPX4 waterproof test

(b) Flow range: 1~10L/min

(c) Flow accuracy: ±0.5L/min

(d) Flowmeter: LWGY-4 type turbine flowmeter

(e) Water pump: CHL2-30L6WBC type stainless steel centrifugal pump

7. Water storage tank:

(a) It is applicable to water storage of IPX5~IPX6 strong water spray test

(b) Volume: 550L

(c) Dimension: L600mmXW660mmXH1400mm

(d) Observation window: toughened glass window

(e) Observation window dimension: W200mmXH1250mm

(f) Depth gauge: stainless steel

(g) Depth gauge height: 1300mm, accuracy1mm

(h) Liquid level control: float switch + overflow pipe

8. Control Cabinet:

(a) Flow detection: flow signal feedback through electronic flowmeter

(b) Flow setting: set on touch screen

(c) Temperature detection: PID

(d) Controller: PLC

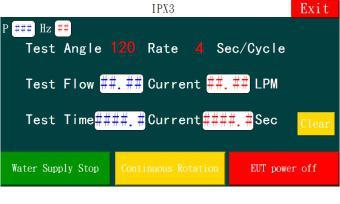

(e) Friendly interface: MT6070IH, 7 inch, color touch screen

(f) Control Function: constant temperature water supply, constant flow water supply, constant pressure water supply, and test time control.

(g) Protection function: leakage protection, overload protection, short circuit protection

9. Filter: stainless steel shell, fine filter core

10. Body material: industrial aluminum alloy
