12V 24V 48V DC Modified Sine Wave Power Inverter For Off Grid System
12V 24V 48V DC Modified Sine Wave Power Inverter For Off Grid System

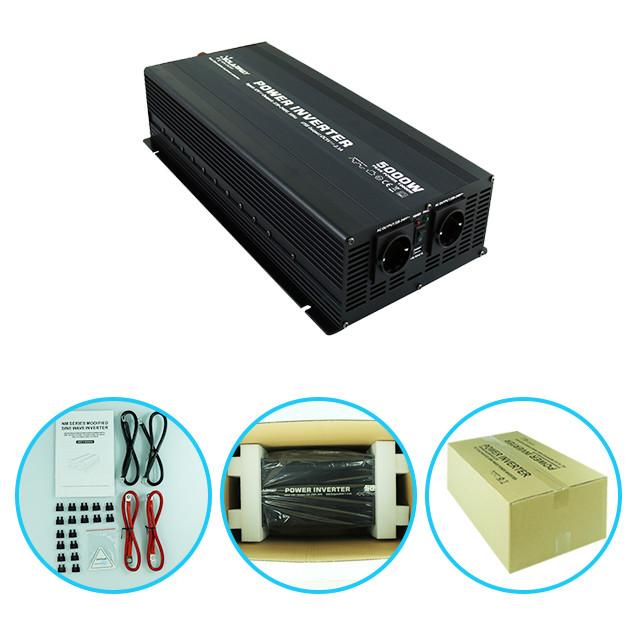

5000W 12V 24V 48V Dc to Ac 110v 220v Modified Sine Wave Power inverter
What is the difference between modified sine wave and pure sine wave?
The main difference between modified sine wave and pure sine wave is the output wave form.Comparing with the modified sine wave, pure sine wave is much more similar with public power. Further more, pure sine wave is much better for dealing with the inductive loads and capacitive loads.
Parameter :
| MODEL | NM5K-112 | NM5K-124 | NM5K-148 | NM5K-212 | NM5K-224 | NM5K-248 | |
| Output | AC Voltage | 100/110/120VAC | 220/230/240VAC | ||||
| Rated Power | 5000W | ||||||
| Surge Power | Load 120~150%(3min.);10000W(3sec.;resistive) | ||||||
| Waveform | Modified Sine Wave | ||||||
| USB port | 5V 2.1A | 5V 2.1A | ------ | 5V 2.1A | 5V 2.1A | ------ | |
| Input | DC Voltage | 12VDC | 24VDC | 48VDC | 12VDC | 24VDC | 48VDC |
| Voltage Range | 10.5~15VDC | 21~30VDC | 42~60VDC | 10.5~15VDC | 21~30VDC | 42~60VDC | |
| Efficiency(Typ.) | 89%~93% | ||||||
| Remote Control | Function(optional) | ||||||
| Protection | BAT.Low Alarm | 10.5±0.5VDC | 21±1.0VDC | 42±2.0VDC | 10.5±0.5VDC | 21±1.0VDC | 42±2.0VDC |
| BAT.LOW Shutdown | 10±0.5VDC | 20±1.0VDC | 40±2.0VDC | 10±0.5VDC | 20±1.0VDC | 40±2.0VDC | |
| Over Load | Shut down output voltage, restart to recover | ||||||
| Over Voltage | 15.5±0.5VDC | 31±1.0VDC | 62±2.0VDC | 15.5±0.5VDC | 31±1.0VDC | 62±2.0VDC | |
| Over Temperature | Shut down output voltage, recover automatically after temperature goes down | ||||||
| Output Short | Shut down output voltage, restart to recover | ||||||
| DC Input Reverse Polarity | By fuse | ||||||
| Earth Fault | Shut off o/p when the load has electrical leakage | ||||||
| Soft Start | Yes,3~5 Seconds | ||||||
Features:
- I/P protection: Bat.low alarm, Bat.low shutdown, over voltage, polarity re-verse
- O/P protection: overload, short circuit, earth fault, over temperature, soft-start
- Output wave form: Modified Sine Wave

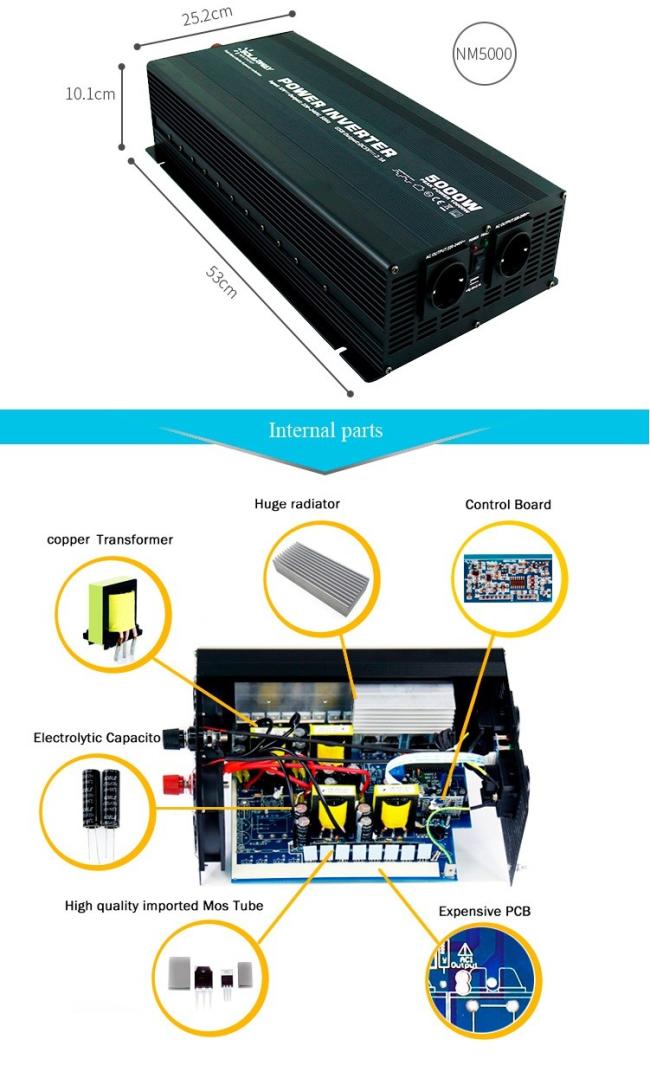

- Design: High frequency design
- Topology: Microprocessor
- No load current draw: low power consumption (standby)
- Cooling fan: load control or temperature controlled cooling fan (optional)
- DC input socket availability is suitable for different user scenarios.
- 100% real power, high surge power
- Germany technology, made in china, 1.5 years’ warranty
-
LED Indicator light
-
CE RoHS ISO E8 approved
FAQ
Q1. what's your types of power inverter?
A:Car Inverter, modified sine wave power inverter, pure sine wave power inverter, inverter with charger, DC to DC converter, etc.
Q2. what's your power inverter's power range ?
A:150W,200W,300W,400W,500W,600W,1KW,1.2KW,1.5KW,1.6KW,2KW,2.5KW,3KW,3.5KW,4KW,5KW .
Q3. what kind of service can you provide ?
A;OEM/ODM Service, etc.
Q4. what about the transportation ?
DHL, TNT, FEDEX, UPS, EMS, Shipping etc.
Q5:What is the warranty of car power inverter ?
A:We provide a guarantee for manufacturing faults/defects of 1.5 years for the goods from the date of delivery.
About Company :
Jiaxing Solarway New Energy Company is a Sino-Germany Joint venture which is a professional off-grid power inverter manufacturer in Jiaxing city ,near to Shanghai,China . We are mainly engaged in high-tech DC TO AC inverter, DC TO DC converter, MPPT/PWM
sollar controller, solar panel and other solar system accessories, OEM and ODM service are available.All our products we have CE,RoHs,E-mark,ETL certification .We have R & D Center and After-sales Service Center in Beijing, China and Leipzig, Germany to make sure we have new design with patent every year.
