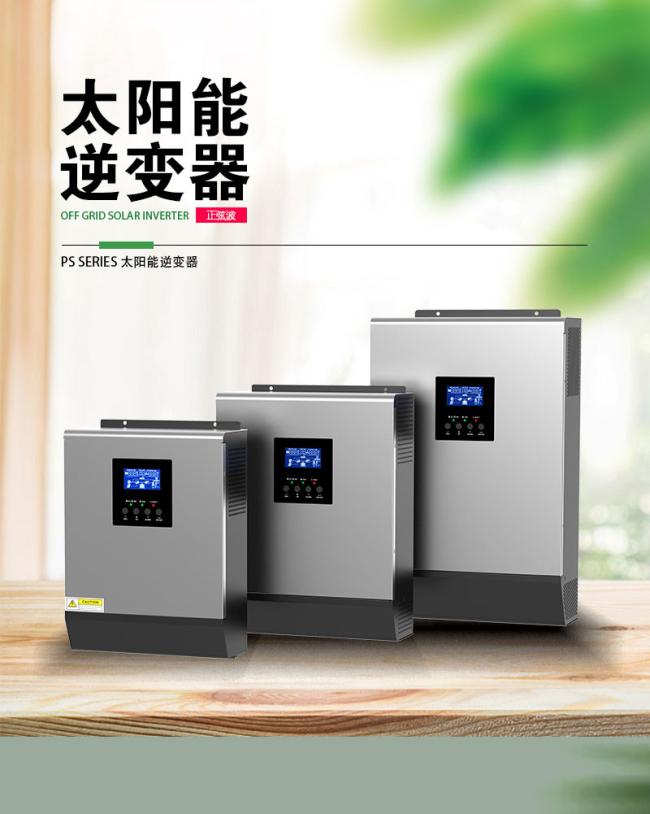

PWM Inverter Hybrid Off Grid , Single Output 3KVA Solar Inverter 24V
Pure Sine Wave off grid solar inverter 3KVA 24VDC 230VAC with PWM
Product Description
Pure sine wave inverter
Build-pwm solar charge controller
Selectable input voltage range and frequency according to city power
Charging currect is selectable according to your battery type
Configurable AC/Solar input priority via lcd setting
Compatible to main power or generator power
Auto restart while ac is recovering
Overload and short circuit protection
Smart charging system optimizes battery performance
Cold start function
Specification
| MODEL | PS 1K-12 | PS 3K-24 | PS 5K-48 |
| Rated Power | 1000VA/800W | 3000VA/2400W | 5000VA/4000W |
| INPUT | |||
| Voltage | 230VAC | ||
| Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) |
||
| Frequency Range | 50Hz/60Hz(Autosensing) | ||
| OUTPUT | |||
| AC Voltage Regulation(Batt. Mode) | 230VAC+5% | ||
| Surge power | 2000VA | 6000VA | 10000VA |
| Efficiency(Peak) | 90% | 93% | 93% |
| Transfer Time | 10ms(for personal computers) 20ms(for home appliances) |
||
| Waveform | Pure Sine Wave | ||
| BATTERY & AC CHARGER | |||
| Battery Voltage | 12VDC | 24VDC | 48VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC |
| Overcharge Protection | 15.0VDC | 30VDC | 60VDC |
| Maximum charge current | 10A/20A | 20A/30A | 10A/20A/30A/40A/50AV60A |
| SOLAR CHARGER & AC CHARGER | |||
| Charging Current | 50A | ||
| Maximum PV Array Open Circuit Voltage | 40VDC | 80VDC | 105VDC |
| PV Range @ Operating Voltage | 15-18VDC | 30-32VDC | 60-72VDC |
| Standby Power Consumption | 1W | 2W | 3W |
| PHYSICAL | |||
| Dimension. D*W*H(mm) | 240*327.6*110 | 368*272*100 | 467*295*120 |
| Net Weight(kg) | 4.5kg | 6.9kg | 9.8kg |
| OPERATING ENVIRONMENT | |||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
| Operating Temperature | 0℃ to 55℃ | ||
| Storage Temperature | -15℃ to 60℃ | ||
