Sunlight Readable 15 Inch Industrial TFT Display 1000 Nits LVDS 1024x768 Pixel
Sunlight Readable 15 Inch Industrial TFT Display 1000 Nits LVDS 1024x768 Pixel Product Introduction
SFTO1500XC-7121AN10 is a color active matrix TFT LCD MDL using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This industrial TFT display has a 15 inch diagonallymeasured active area with XGA resolutions (1024 horizontal by 768 vertical pixel array).Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripeand this module can display 16.7M colors. The TFT-LCD MDL panel is adapted for a lowreflection and higher color type. SFTO1500XC-7121AN10 TFT LCD Display is fully compatible with BOE DV150X0M-N10.
SFTO1500XC-7121AN10 industial TFT display is designed with capacitive touch panel, single touch and multi-touch optional. The TFT LCD module SFTO1500XC-7121AN10 is with 1000cd/m2 luminance. we can achieve 1500cd/m2 for the surface brightness, and it is high brightness sunlight readble version, whose model number is SFTO1500XC-7121AN15.
| Product: | 15 Inch Industrial TFT Display |
| Resolution: | 1024 RGB X 768 |
| Surface Luminance: | 1000cd/m2(nits) |
| Interface: | LVDS Interface |
| Pin Number: | 20pins |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Outline Dim.: | 326.5(H) × 253.5(V) × 9.7(T) (mm) |
| Active Area: | 304.128(H) × 228.096(V) (mm) |
| Surface Treatment: | Hard Coating(3H) |
| Haze: | 25% |
| Touch Screen: | With CTP Optional |
| Display Colors: | 16.7 M |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Back-light: | E-LED Light Bar Type |
| LED Life Time: | 50,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | REACH & RoHS Compliant |
Sunlight Readable 15 Inch Industrial TFT Display 1000 Nits LVDS 1024x768 Pixel Product Drawing
Electrical Specifications
Backlight Unit

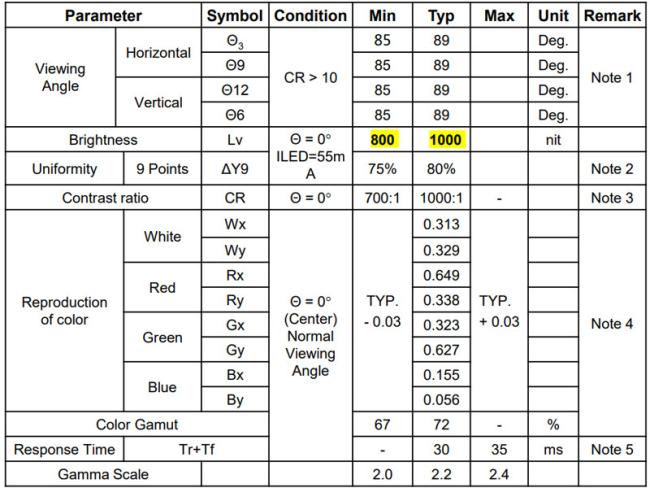

Optical Specifications

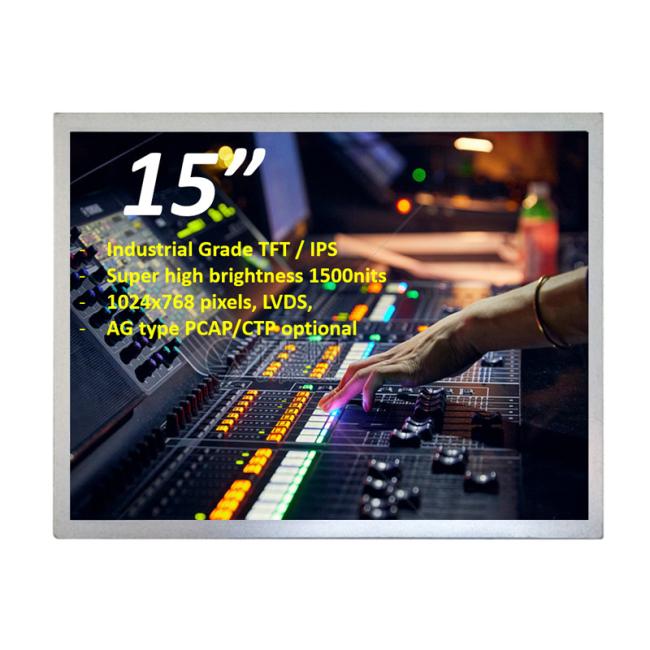

Sunlight Readable 15 Inch Industrial TFT Display 1000 Nits LVDS 1024x768 Pixel Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.
3. Commitment to quality reliability
SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.
