11.9 Inch Industrial TFT LCD Display 16.7M Color 1480 * 320 Resolution 800 Nits Brightness
Datasheet Download
About this item SFTO1190GX-7161AN
-
Display characteristics
Size: 11.9 inches
16.7M color depth
Resolution: 320 × 1480
Brightness: 800cd/m ² (Min)
Contrast: 900
Color gamut coverage: 65%Anti electromagnetic interference
Low radiation, low power consumption, high stability -
Application scenarios
Industrial control
Power industry
Automobile manufacturing
Description
The 11.9-inch industrial TFT LCD display with a resolution of 1480 x 320 pixels and 16.7 million color support is a high-performance display solution designed for a variety of industrial and commercial applications where visual clarity and durability are essential. Here's a detailed description of this product:
1. Display Specifications:
- Size: 11.9 inches, offering a substantial display area for a wide range of applications.
- Resolution: 1480 x 320 pixels, providing sharp image and text display, suitable for applications requiring detailed visual output.
2. Color Capability:
- Supports 16.7 million colors, which is close to the full RGB color range, allowing for vibrant and lifelike image reproduction.
3. Brightness:
- With an 800 nits brightness level, the display is viewable in bright environments, making it ideal for use in industrial settings with high ambient light.
4. Contrast Ratio:
- This 11.9 inch industrial TFT LCDs typically offer high contrast ratios 900, ensuring deep blacks and bright whites for clear, legible images.
5. Viewing Angles:
- Industrial TFT LCDs often feature wide viewing angles, ensuring consistent color and brightness from multiple perspectives.
6. Interface Types:
- The display supports MIPI interface.
7. Operating Environment:
- Designed for industrial use, the 11.9" display can operate over a wide temperature range from -20C to 70C, ensuring reliable performance in harsh conditions.
8. Durability:
- Built to withstand the rigors of continuous operation, suitable for 24/7 use in demanding environments.
9. Applications:
- Perfect for industrial automation, control panels, medical equipment, digital signage, transportation hubs, and security monitoring systems where a high level of visual detail and durability is required.
10. Customization Services:
- Customization options may be available to meet specific customer needs, such as specific interface requirements or additional functional features.
This 11.9-inch industrial TFT LCD display is an excellent choice for applications that demand high-resolution, high-brightness displays with the durability to withstand the challenges of industrial environments.
Features
| No. | Item | Specification | Unit |
| 1 | Panel Size | 11.88 ” | inch |
| 2 | Number of Pixels | 320(H) × 1480(V) | pixels |
| 3 | Active Area | 57.984(H) × 268.176(V) | mm |
| 4 | Pixel Pitch | 0.1812(H)×0.1812(V) x RGB | mm |
| 5 | Outline Dimension | 65.00(W)×282.00(H)×4.50 (D) | mm |
| 6 | Number of Colors | 16.7M | - |
| 7 | Display Mode | Transmission mode, normally black | - |
| 8 | Viewing Direction | Full viewing | - |
| 9 | Display Format | RGB vertical stripe | - |
| 10 | Surface Treatment | Glare | - |
| 11 | Interface | MIPI | - |
| 12 | Backlight | White LED | - |
| 13 | Operation Temperature | -20~70 | ℃ |
| 14 | Storage Temperature | -30~80 | ℃ |
| 15 | Weight | 120 | g |
Mechanical Drawing
Pin Description
| No. | Symbol | Function | Remark |
| 1 | GND | Ground | |
| 2 | D0P | Positive MIPI differential data input | |
| 3 | D0N | Negative MIPI differential data input | |
| 4 | GND | Ground | |
| 5 | D1P | Positive MIPI differential data input | |
| 6 | D1N | Negative MIPI differential data input | |
| 7 | GND | Ground | |
| 8 | CLKP | Positive MIPI differential clock input | |
| 9 | CLKN | Negative MIPI differential clock input | |
| 10 | GND | Ground | |
| 11 | D2P | Positive MIPI differential data input | |
| 12 | D2N | Negative MIPI differential data input | |
| 13 | GND | Ground | |
| 14 | D3P | Positive MIPI differential data input | |
| 15 | D3N | Negative MIPI differential data input | |
| 16 | GND | Ground | |
| 17 | IOVCGCN1D.8V-3.3V | ||
| 18 | IOVCC1.8V-3.3V | A power supply for the analog power. | |
| 19 | |||
| 20 | NC | No connection | |
| 21 | NC | No connection | |
| 22 | NC | No connection | |
| 23 | NC | No connection | |
| 24 | RSTB | Reset pin. | |
| 25 | STBYB | Standby mode control. | |
| 26 | NC | No connection | |
| 27 | GND | Ground | |
| 28 | K | LED Cathode | |
| 29 | K | ||
| 30 | GND | Ground | |
| 31 | NC | No connection | |
| 32 | GND | Ground | |
| 33 | GND | Ground | |
| 34 | NC | No connection | |
| 35 | A | LED Anode | |
| 36 | A | ||
| 37 | GND | Ground | |
| 38 | VDD(3.3V) | A power supply for the analog power. | |
| 39 | VDD(3.3V) | ||
| 40 | NC | No connection |
Absolute Maximum Ratings
| Item | Symbol | Values | Unit | |
| Min. | Max. | |||
| Digital Supply Voltage | VCI | -0.3 | 4.0 | V |
| Digital Supply Voltage | IOVCC | -0.3 | 4.0 | V |
Operating Conditions
| Item | Symbol | Values | Unit | ||
| Min. | Typ. | Max. | |||
| Digital Supply Voltage | VDD | 3.0 | 3.3 | 3.6 | V |
| Digital Supply Voltage | IOVCC | 1.6 | - | 3.6 | V |
| Logic Input Voltage | VI H | 0.7VDD | - | VDD | V |
| VIL | GND | - | 0.3VDD | V | |

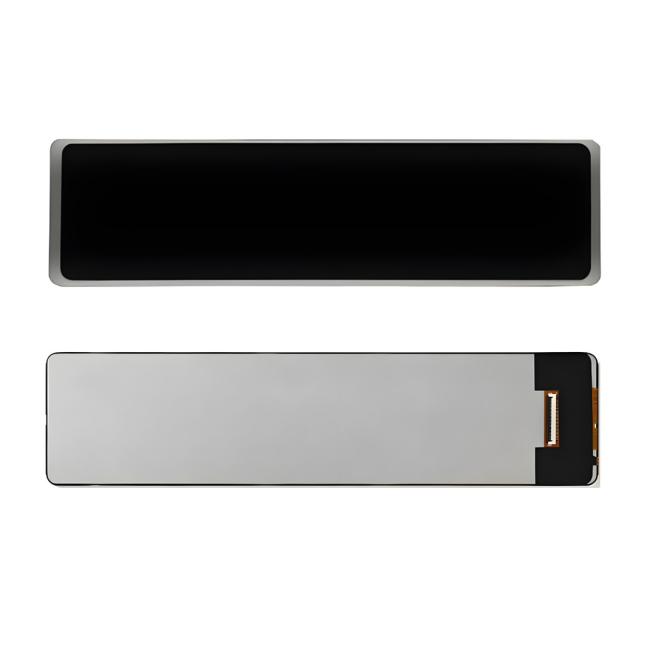

Product Image
