High Brightness 15.6" FHD 1000nit TFT Display Module for Industrial, Outdoor & Rugged Applications
Price:
the lowest market price guaranteed
MOQ:
3 pcs
Delivery Time:
1-5 weeks
Brand:
SAEF
Product Description

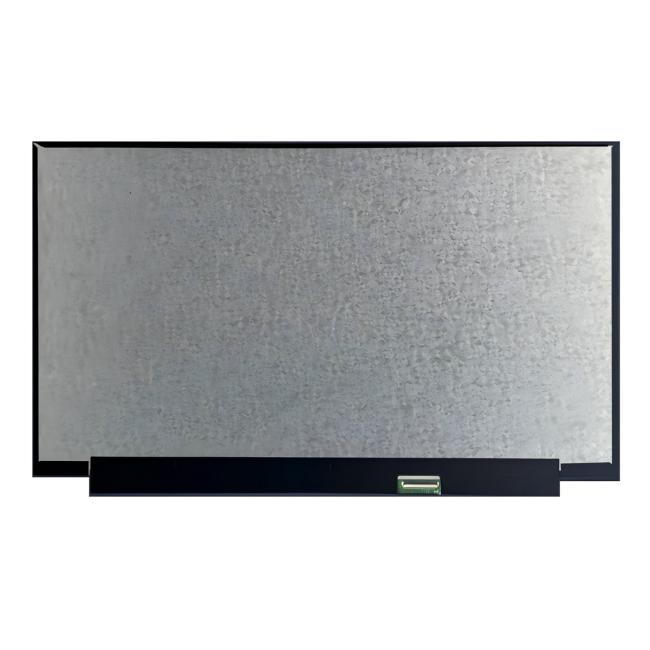

The SFTO1560BD-7246A3N is a high-performance 15.6-inch Full HD (FHD) high-brightness TFT display module designed for industrial, outdoor, and rugged environments. Key features include:
1. Ultra-Bright Display for Any Lighting Condition
1000 nit brightness: Ensures clear visibility under direct sunlight or extreme outdoor lighting.
FHD 1920x1080 resolution: Delivers sharp, accurate RGB vertical stripe pixel alignment with 16.7M color depth (6bit + FRC) for precision applications.
2. Industrial-Grade Durability
Wide operating temperature: Functions reliably from -20°C to +70°C, ideal for harsh environments like factories, vehicles, or outdoor equipment.
Anti-glare & scratch-resistant surface: 3H hard coating reduces glare and resists scratches, enhancing outdoor readability.
Rigorous testing: Passes 240-hour high-temperature/humidity (60°C, 90%RH) and thermal shock (100 cycles between -30°C and +80°C) tests for long-term reliability.
3. Flexible Interface & Dimming Control
30-pin eDP interface: Simplifies integration with embedded systems.
PWM backlight dimming: Adjustable frequency (190Hz–2kHz) for optimal brightness control in varying light conditions.
LED driver optimization: Built-in converter with up to 31V output voltage and multi-channel current balancing extends backlight lifespan.
4. Versatile Applications
Industrial automation: PLCs, control panels, medical monitors.
Outdoor digital signage: Bus stops, retail POS displays, kiosks.
Automotive systems: GPS navigation, vehicle infotainment, surveillance screens.
Specialized environments: Military, aviation, port equipment.
5. Compliance & Efficiency
RoHS compliant: Lead-free materials meet EU environmental standards.
Low power consumption: Typical power draw of 0.891W balances energy efficiency and performance.
Request a Sample: Contact our EU/US support team at sales2@saef.com.cn for standard CTP solutions (suitable for outdoor use, industrial grade) and customization options.
Specifications
| Item | Specification | Unit |
| Screen Size | 15.6” diagonal | |
| Driver Element | a-si TFT active matrix | - |
| Pixel Number | 1920 x R.G.B. x 1080 | pixel |
| Pixel Pitch | 0.17925 (H) x 0.17925 (V) | mm |
| Pixel Arrangement | RGB vertical stripe | - |
| Display Colors | 16.7 m | color |
| Transmissive Mode | Normally Black | - |
| Surface Treatment | Hard coating (3H), Anti-Glare | - |
| Power Consumption | Cell 0.891W(Max.) | - |
|
Operating Temperature |
-20°C to +70°C | °C |
|
Storage Temperature |
-30°C to +80°C | °C |

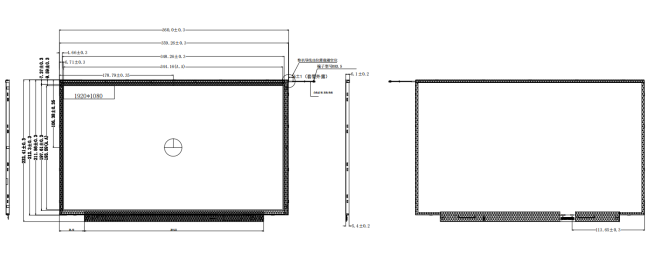

External Dimensions
Interface Pin Definition
| Pin | Symbol | Description |
| 1 | NC | No Connection (Reserved for LCD test) |
| 2 | H_GND | High Speed Ground |
| 3 | ML1- | Complement Signal-Lane 1 |
| 4 | ML1+ | True Signal-Main Lane 1 |
| 5 | H_GND | High Speed Ground |
| 6 | ML0- | Complement Signal-Lane 0 |
| 7 | ML0+ | True Signal-Main Lane 0 |
| 8 | H_GND | High Speed Ground |
| 9 | AUX+ | True Signal-Auxiliary Channel |
| 10 | AUX- | Complement Signal-Auxiliary Channel |
| 11 | H_GND | High Speed Ground |
| 12 | VCCS | Power Supply +3.3V(typical) |
| 13 | VCCS | Power Supply +3.3V(typical) |
| 14 | NC | No Connection (Reserved for LCD test) |
| 15 | GND | Ground |
| 16 | GND | Ground |
| 17 | HPD | Hot Plug Detect |
| 18 | BL_GND | BL Ground |
| 19 | BL_GND | BL Ground |
| 20 | BL_GND | BL Ground |
| 21 | BL_GND | BL Ground |
| 22 | LED_EN | BL_Enable Signal of LED Converter |
| 23 | LED_PWM | PWM Dimming Control Signal of LED Converter |
| 24 | NC | No Connection (Reserved for LCD test) |
| 25 | NC | No Connection (Reserved for LCD test) |
| 26 | LED_VCCS | BL Power |
| 27 | LED_VCCS | BL Power |
| 28 | LED_VCCS | BL Power |
| 29 | LED_VCCS | BL Power |
| 30 | NC | No Connection (Reserved for LCD test) |
