SFTO1560JD-7328BN – High Brightness 15.6" TFT LCD for Extreme Conditions
Engineered for demanding environments, the SFTO1560JD-7328BN is a high-brightness 15.6-inch TFT LCD display designed to deliver crystal-clear visuals even in direct sunlight or low-light industrial settings. With 500 cd/m² brightness and a wide operating temperature range (-30°C to +80°C), this display is ideal for applications requiring reliability and visibility in harsh conditions.
Why Choose This High Brightness TFT LCD?
- Ultra-Bright Display: Achieve exceptional visibility with 500 cd/m² brightness (425 cd/m² minimum) and 85° wide viewing angles, ensuring clear images even in direct sunlight or dimly lit environments.
- Extreme Temperature Tolerance: Operate flawlessly in extreme climates, from freezing outdoor installations to heat-intensive industrial facilities.
- Energy Efficiency: Low power consumption (9.55 W typical) meets global energy-saving standards in Europe and North America.
- Durability: Backed by 8000+ hours of reliability testing (temperature, humidity, ESD) and a 50,000-hour LED backlight lifespan (50% luminance retention).
- Global Compliance: RoHS-certified design ensures compliance with EU REACH and US environmental regulations.
Technical Highlights:
- Full HD Resolution (1920 x 1080) for sharp text, graphics, and video rendering.
- Contrast Ratio of 1200:1 for deep blacks and vibrant colors.
- 72% NTSC Color Gamut ensures accurate and vivid color reproduction.
- 8-Bit LVDS Interface and I-PEX Connector for seamless integration into industrial systems.
- Compact Design: 363.8 mm (W) x 215.9 mm (H) dimensions with 0.8T glass thickness for robustness.
Applications:
- Outdoor Industrial Equipment: Construction machinery, agricultural monitors, and outdoor HMIs.
- Medical Imaging: High-precision displays for diagnostic equipment and patient monitors.
- Aerospace & Defense: Cockpit displays, radar systems, and ruggedized field devices.
- Marine Navigation: Visibility in bright sunlight or dimly lit control rooms.
Engineered for Global Markets:
The SFTO1560JD-7328BN meets the rigorous demands of European and American industries, offering:
- RoHS Compliance: Free from hazardous substances for eco-friendly operations.
- Long-Term Availability: Designed for stable supply chains in OEM projects.
- Customization Support: Tailored solutions for industrial automation, healthcare, and defense sectors.
Contact Us for Bulk Orders or Custom Solutions!
At Saef Technology Limited, we specialize in delivering high-performance displays to global clients. With fast shipping to the USA, Germany, UK, France, and beyond, we provide technical support and competitive pricing for your business needs.
Specifications
| Parameter | Specification | Unit |
| Active Area | 345.6(W) x 194.4(H) | mm |
| Number Of Pixels | 1920 x RGB x 1080 | pixels |
| Pixel Pitch | 0.18(W) x 0.18(H) | mm |
| Pixel Arrangement | RGB Vertical stripe | |
| Display Mode | Normally black | |
| Display Colors | 8bits | colors |
| Surface Treatment | HC | |
| Contrast Ratio | Typ. 1200 Min.1000 | |
| Viewing Angle(CR>10) | Typ.85/85/85/85 | deg. |
| Color Gamut | 72% NTSC | |
| Brightness | 500typ 425min | cd/m2 |
| Brightness Uniformity | 80% typ 75% min | |
| Power Consumption | Max.10.65W Typ. 9.55 W | watt |
| Outline Dimension | 363.8*215.9 | mm |
| Weight | Typ. 850g | gram |
External Dimensions
Interface Pin Definition
|
No. |
Symbol |
No. |
Symbol |
||
|
1 |
RE3P |
Positive LVDS differential data input Channel E3(Even) |
21 |
RO1N |
Negative LVDS differential data i nput Channel O1(Odd) |
|
2 |
RE3N |
Negative LVDS differential data inpu t Channel E3(Even) |
22 |
RO0P |
Positive LVDS differential data in put Channel O0(Odd) |
|
3 |
RECLKP |
Positive LVDS differential clock inpu t (Even) |
23 |
RO0N |
Negative LVDS differential data i nput Channel O0(Odd) |
|
4 |
RECLKN |
Negative LVDS differential clock inp ut(Even) |
24 |
GND |
LCD Ground |
|
5 |
RE2P |
Positive LVDS differential data input Channel E2(Even) |
25 |
NC |
SDA for SAEF use, this pin shoul d be open |
|
6 |
RE2N |
Negative LVDS differential data inpu t Channel E2(Even) |
26 |
NC |
SCL for SAEF use, this pin shoul d be open |
|
7 |
GND |
LCD Ground |
27 |
NC |
MTP for SAEF use, this pin shoul d be open |
|
8 |
RE1P |
Positive LVDS differential data input Channel E1(Even) |
28 |
LCD_VCC |
LCD Power 3.3V |
|
9 |
RE1N |
Negative LVDS differential data inpu t Channel E1(Even) |
29 |
LCD_VCC |
LCD Power 3.3V |
|
10 |
RE0P |
Positive LVDS differential data input Channel E0(Even) |
30 |
LCD_VCC |
LCD Power 3.3V |
|
11 |
RE0N |
Negative LVDS differential data inpu t Channel E0(Even) |
31 |
LED_PW M |
Backlight Adjust ,3.3V(3V~3.6V) |
|
12 |
RO3P |
Positive LVDS differential data input Channel O3(Odd) |
32 |
LED_EN |
Enable pin ,3.3V(3V~3.6V) |
|
13 |
RO3N |
Negative LVDS differential data inpu t Channel O3(Odd) |
33 |
GND |
Ground |
|
14 |
GND |
LCD Ground |
34 |
STBYB |
Deep standby mode setting pin. |
|
15 |
ROCLKP |
Positive LVDS differential clock inpu t (Odd) |
35 |
RSTB |
Device Reset for LCD driver IC, Low active |
|
16 |
ROCLKN |
Negative LVDS differential clock inp ut(Odd) |
36 |
GND |
Ground |
|
17 |
GND |
LCD Ground |
37 |
BL_POW ER |
+12V Vi power supply |
|
18 |
RO2P |
Positive LVDS differential data input Channel O2(Odd) |
38 |
BL_POW ER |
+12V Vi power supply |
|
19 |
RO2N |
Negative LVDS differential data inpu t Channel O2(Odd) |
39 |
BL_POW ER |
+12V Vi power supply |
|
20 |
RO1P |
Positive LVDS differential data input Channel O1(Odd) |
40 |
BL_POW ER |
+12V Vi power supply |
Optical Characteristics
|
Item |
Symbol |
Condition |
Min |
Typ. |
Max |
Unit |
|
luminance |
Bp |
θ=0° |
425 |
500 |
-- |
cd/m2 |
|
L255 Uniformity |
△Bp |
|
75 |
80 |
-- |
% |
|
Viewing Angle |
θL |
Cr≥10 |
-- |
85 |
-- |
deg |
|
|
θR |
|
-- |
85 |
-- |
|
|
|
ψT |
|
-- |
85 |
-- |
|
|
|
ψB |
|
-- |
85 |
-- |
|
|
Contrast Ratio |
Cr |
θ=0° FF=0° |
1000 |
1200 |
|
- |
|
Color Coordinate of CIE1931 |
Wx |
θ=0° |
0.283 |
0.313 |
0.343 |
- |
|
|
Wy |
|
0.299 |
0.329 |
0.359 |
|
|
Color Gamut |
|
NTSC |
-- |
72 |
-- |
% |
|
Gamma |
|
25℃ |
2.0 |
2.2 |
2.4 |
% |
|
Crosstalk |
|
25℃ |
-- |
-- |
2 |
% |
Backlight Characteristics
|
Parameter |
Symbol |
Values |
Unit |
||
|
|
|
Min. |
Typ. |
Max. |
|
|
LED Supply Voltage |
V LED |
28 |
30 |
31 |
V |
|
LED Supply Current |
ILED |
- |
252 |
- |
mA |
|
Power Consumption |
PLED |
- |
8.89 |
9.19 |
W |
|
LED Quantity |
QLED |
- |
40 |
- |
EA |
|
LED Life Time |
TLED |
40000 |
50000 |
- |
Hrs |
CTP Specification (optional)
| Category | Parameter | Specification |
| General | Structure | Cover Glass + DITO Glass |
| Cover Lens Strengthening | Chemically Strengthened | |
| Cover Lens Surface Hardness | ≥6H (Pencil Hardness) | |
| Light Transmission Rate | ≥85% | |
| Operation Temperature | -30℃ ~ +80℃, ≤85% RH | |
| Storage Temperature | -35℃ ~ +85℃, ≤85% RH | |
| Electrical | Interface | IIC / USB / UART |
| Touch IC | IL12511 | |
| Power Supply Voltage (VDD) | 3.3V or 5V (Selectable) | |
| Host Resistance (SDA/SCL) | Configurable on Main-board | |
| Environmental | Operating Conditions | Functional in fog/surface water |
| Surface Properties | Surface Ink | Anti-UV |
| Surface Treatment | Anti-Glare (Haze: 10%) | |
| LCD-TP Lamination | OCA (Optically Clear Adhesive) | |
| Compliance | Material Standards | RoHS & Halogen-Free Compliant |

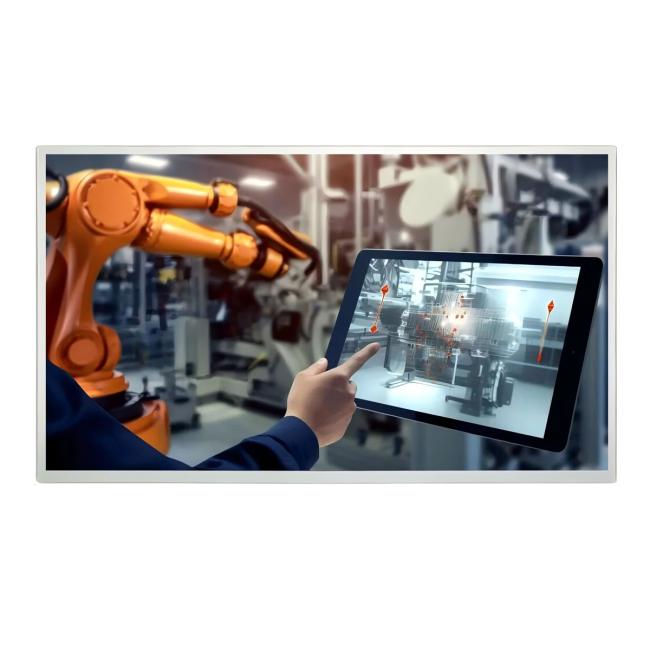

Product Image
