FDA Sanitary Air Operated Diaphragm Pump 1 Inch For Ethanol Food Grade
1 Inch FDA Approved Sanitary Air Operated Diaphragm Pump For Ethanol Food Grade
KEY FEATURES
FDA compliant air operated diaphragm pumps are designed for Food, Pharmaceutical & Cosmetic Industries.
These series of air operated diaphragm pumps include: 316 Stainless Steel wetted components, and Sanitary Clamp Fittings.
Passivate is when you alter the surface layer or coat the surface with a thin inert layer (for protection and to avoid contamination).
Available in FDA compliant elastomers: Hytrel, EPDM and PTFE.
- self-priming, lube-free air valve
- excellent for shear sensitive liquids
- intrinsically safe and portable
- non mechanical seals
- ability to run dry without pump damage
| Place of Origin | Shanghai, China |
| Power Source | Pneumtic |
| Structure | Air Operated Diaphragm Pump |
| Power Driven | Compressed air |
| Max Permitted Grain | 0.2 in(5mm) |
| Certification | CE, ISO: 9001 |
| Air Inlet Size | 1/2 in.npt(f) |
| Wetted End | Stainless Steel 304 |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Connection | Thread |

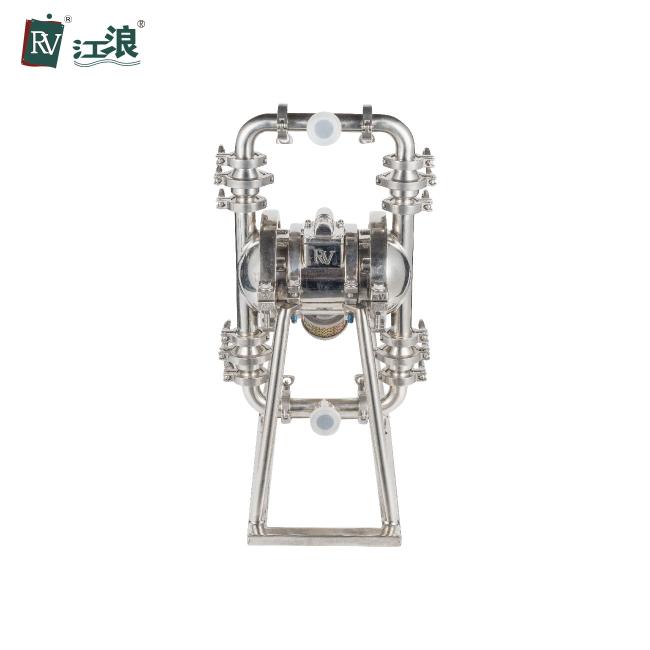

The RV Hygienic Air Operated Diaphragm Pump was developed for hygienic grades and is used primarily in the food and pharmaceutical industries. This FDA air operated diaphragm pump is ideal for applications where the surface of the device is required to achieve an electro polished 32Ra. The clamp is designed with easy removal. The FDA air operated diaphragm pump body is made of food grade stainless steel, the diaphragm material is food grade PTFE or EPDM rubber, and the fluid contact area is in compliance with FDA standards.
Main Applications:
- Winery
- Brewery
- Pharmaceutical
- Bulk Transfer
- Food Ingredients / Packaging
- Batching
- Filter Press, Utility
- Tanker/Railcar Unloading
- Product Transfer
- Cosmetics
- Personal Hygiene
