1in Pneumatic Diaphragm Dosing Pump Reciprocating 276Cpm Sulfuric Acid

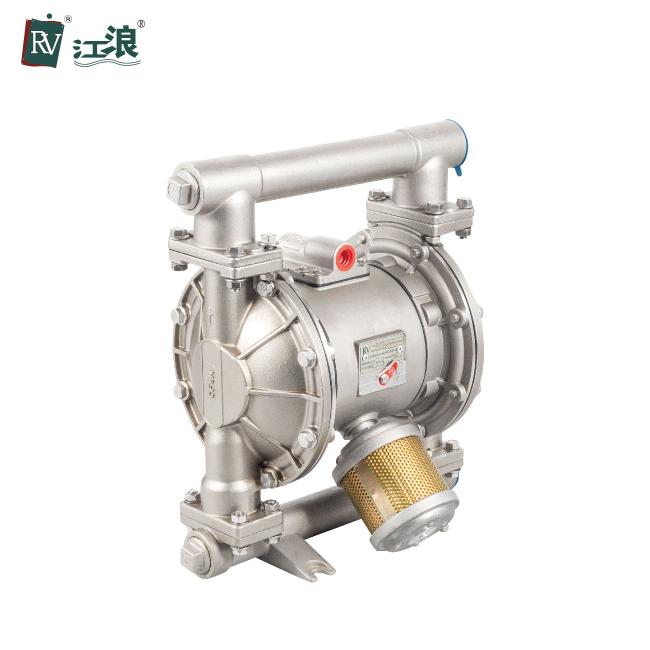

1"inch Chemical Full Stainless Steel Air Operated Diaphragm Pump For Sulfuric Acid Transfer
Diaphragm Pump Advantages:
1. Double Diaphragm Pump Air Operated Double Diaphragm Pump Rubber Diaphragm for Pump for Food& Chemical, Chemical Resistant Air Operated Diaphragm Pump is the new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.
2. It has two diaphragms, the compressed air come to the pump body to drive the pump in the constant action of sucking and releasing, so it can pump the liquids easily by this principle. Also it is very safe in dangerous environment since it has no electric motor.
3. Air operated diaphragm pumps not only can transfer the flow liquid, but also can transfer some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 40 gpm(150 lpm) |
| Max Reciprocating Speed | 276 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 4mm |
| Max Air Consumption | 45 scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f)4 |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in.npt(f) |
| Fluid Outlet Size | 1 in.npt(f) |
| Weight | SST pump 21kg |
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
Company Introduction:
Our air operated diaphragm pumps and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
