1 Inch Air Diaphragm Pump Pneumatic Aluminum NBR Membranes Painting Industry
1 inch Air Diaphragm Pump Pneumatic Aluminum NBR Membranes Painting Industry
ADVANTAGES OF PNEUMATIC DIAPHRAGM PUMP
- Unlike most other pump designs, pneumatic diaphragm pump can run dry for extended periods of time without damage.
- Due to their air-powered design, pneumatic diaphragm pump are well suited for use in hazardous situations (e.g., in environments where flammable materials are present), as the working mechanisms of these types of pumps don’t produce a spark.
- The pneumatic diaphragm pump design separates process fluids from potentially sensitive pump parts. The isolation of the pumps internals provide increased time between repair.
- Pneumatic diaphragm pump come in many materials to cover a wide range of temperature and chemical compatibility applications.
- They are manufactured from a wide variety of metal and non-metal materials
MAXIMUM LIQUID TEMPERATURE FOR RUBBER PARTS
| Buna N | 180°F (82°C) |
| Santoprene | 180°F (82°C) |
| PTFE | 212°F (100°C) |
| Hytrel | 248°F (120°C) |
| 248°F (120°C) | |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight |
Aluminum 8.2kg |

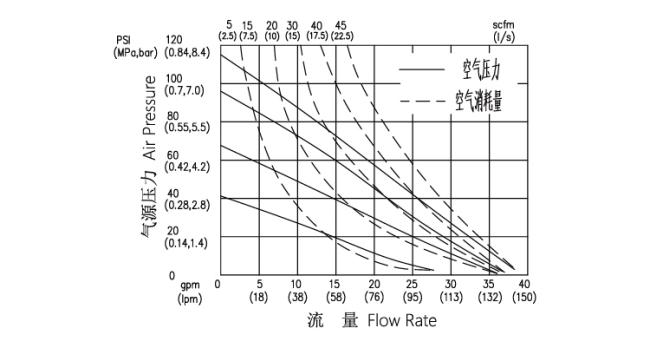

Performance curve diagram
Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service
FAQ
Q1. Can I have a sample order for pneumatic diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for pneumatic diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for pneumatic diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
