Aluminum Alloy Pneumatic Double Diaphragm Pump Oil Water Lotion Acid Transfer 2 Inch

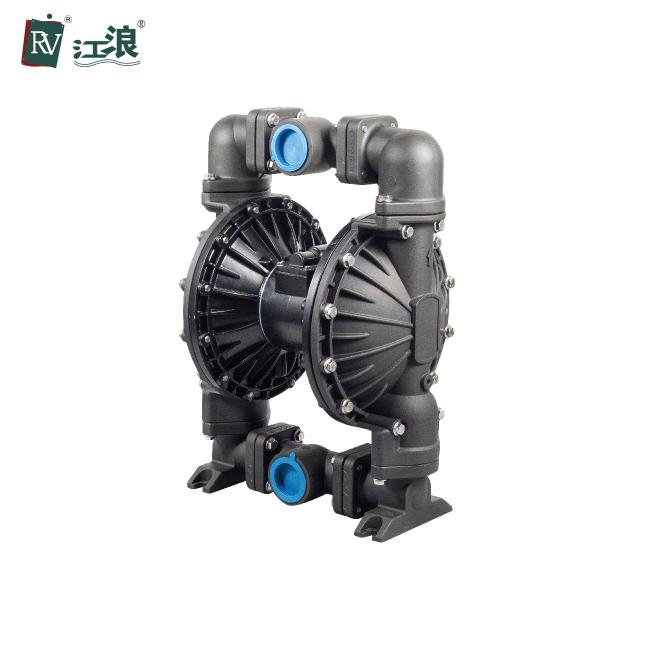

2 Inch Aluminum alloy Air Operated Pneumatic Oil Water lotion acid Transfer Double Diaphragm Pump
HIGH LEVEL TECHNICAL SUPPORT & AIR DIAPHRAGM PUMP SERVICING
- We provide guaranteed first-class technical support services to address all your air diaphragm pump needs. Our clients can trust in our extensive capacity to offer custom solutions with consistent reliability and high performance.
- We implement comprehensive servicing that is tailor-made to match our client’s needs.
- We supply a vast range of spare parts to maximise the user’s product experience and convenience.
| Max Working Pressure | 120 psi ( 0.84 Mpa, 8.4 bar ) |
| Max Flow Rate | 150 gpm (570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in (6mm) |
| Max Air Consumption | 140 scfm ( 70 L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in |
| Model | Pipe Size | Max. Air Pressure | Wetted Parts Material | Valve Seat |
Ball Material
|
Connection |
| RVA-F3366-T | 2” inch | 8.4 bar | Aluminum | Stainless Steel | Santoprene |
NPT THREAD
|
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Air diaphragm pump (AODD) pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic air diaphragm pumps, electric diaphragm pumps for a wide range customers.
Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm pump order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the air diaphragm pumps?
A: Yes, we offer 5 years warranty to our air diaphragm pumps.
