Nursing Pad Under Pad Machine 200m / min 350 m / min
Nursing Pad Machine
To provide the complete Nursing Pad Machine solution to customer, which covers from design, fabrication, assembly and debugging to technical training and machine maintenance. According to the different requirements of each customer, one-to-one precise design and development, configuration of different control systems, design and manufacture of production lines for various product structures.
MAIN PERFORMANCES AND CHARACTERISTICS:
| Design speed: | 200m/min ~ 350 m/min |
| Production speed: | 170 m/min ~ 300 m/min |
| Product length: | 500mm~1800mm (Product length can be adjusted within this range) |
| Product Width: | 450mm/600mm/800mm(Products can be customized according to requirements) |
| Efficiency: | ≥85% |
| Waste rate: | ≤3% |
| Power: | 380V, 50Hz, 3 Phases |
| Compressed air consumption: | 0.6-0.8Mpa, 2.5 M³/min |
| Overall dimensions (working area): L * W * H: | around 25m* 7m * 4.5m |
| Color of the machine: | To be appointed by the Buyer |
*For reference only, the final technical parameters depend on the final confirmed machine configuration.
Machine and Application

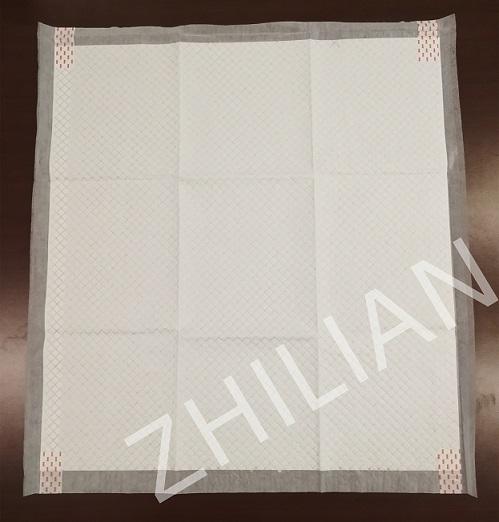

Disposable nursing underpad product composed of five layers of non-woven, tissue paper, fluff pulp core, tissue paper and bottom film. The function of release paper can also be added according to customers' needs. Disposable nursing underpad machine is made up of absorbent core making system, final product making systems, drive systems, conveyor systems, electrical control systems, self-checking systems and auxiliary system.
During operation, Man-machine dialogue realized by PLC and man-machine interface. The touch screen can be a timely operation, display and check or modify the point of failure data. To manual or auto control the spray glue, change material, cutter roller, unwinding, reject, material broken detection, material loss detection, counting.
Disposable nursing underpad product can be produced by the machine. It is suitable for baby diaper changing pads etc.
