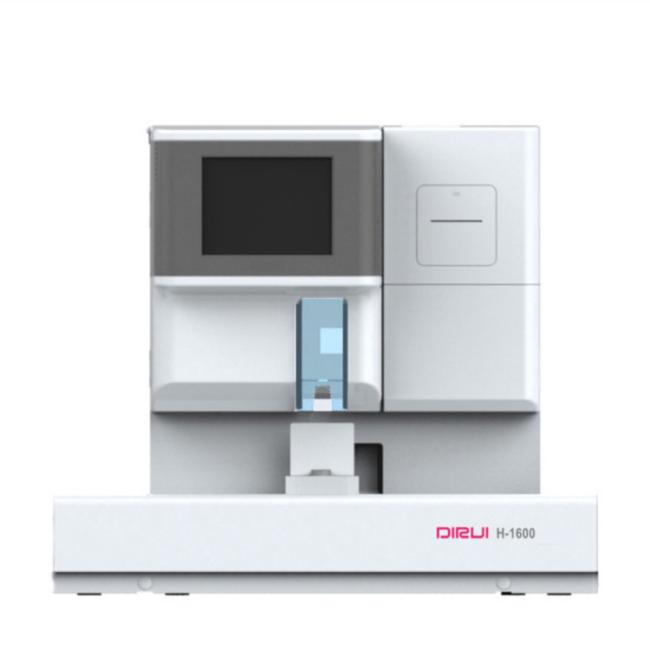

Multichannel Laboratory Medical Equipment Clinical H 1600 Automatic Urine Sediment Analyzer

Price Negotiable

Price: 1

MOQ: 2

Delivery Time: 7

Brand: GH

Product Description

Best selling quality multi channel Clinical H-1600 fully automatic urine analyzer

Overview

Quick Details

Type:: Urine Analysis System, Urine Analysis System

Brand Name:: GH

Model Number:: H-1600, H-1600

Place of Origin:: Jilin, China

Instrument classification:: Class II

Warranty:: 1 Year, 18 months

After-sale Service:: Online technical support

Product name:: H-1600 Urine Analyzer

Brand:: DIRUI

Throughput:: 240 samples/hour

Certificate:: ISO13485,CE

OEM:: Accepted

Supply Ability

Supply Ability: 100 Set/Sets per Month

Packaging & Delivery

Packaging Details: Carton or wooden case

Port: Dalian Port Shenzhen Port

TECHNICAL PARAMETERS
Test principle	Test principle of chemistry items: Photoelectric colorimetry. Test principle of physical and chemical items: Refraction method, transmittance absorbance.
Test items	Urobilinogen (UBG), bilirubin (BIL), ketone body (KET), blood (BLD), protein (PRO), nitrite (NIT), leukocyte (LEU), glucose (GLU), pH value (pH), specific gravity (SG), vitamin C (VC) (optional), microalbumin (MALB) (optional), creatinine (Cr) (optional) and urinary calcium (Ca) (optional).
Physical and chemical test items	Specific gravity (optional), turbidity (optional), color (optional) and conductivity (optional).
Test speed	240 samples/ hour
Sample type	Urine
Sample volume	Chemistry analysis item: Min. volume: 1.6mL non-centrifuged urine; aspiration volume: about 0.6mL; Chemistry analysis item + physical and chemical item: Min. volume: 3.0mL non-centrifuged urine; aspiration volume: about 2.0mL.
Volume of sample to be tested	60 samples. The volume can be extended to 320 samples if pre-storage tray and reclaiming tray modules are installed.
Volume of strip bin	A single strip bin holds at least 300 strips
Maximum capacity of waste strip bin	400 strips
Temperature and humidity monitoring function of strip bin	It has internal temperature and humidity monitoring function and it will alarm if they exceed the set range.
Strip carrying stability	3 days
STAT function	Special STAT position, available for sample test at any time
Sample barcode identification	Built-in barcode reader (laser), sample barcode can be read automatically An external barcode reader (red light),manual scanning of barcode (optional).
LIS port	Serial port LIS
Connection with LIS system	Bidirectional communication with LIS system is supported
Test results storage capacity	Not less than 100,000 pieces of data
Weight	67kg; 102kg if pre-storage tray and reclaiming tray modules are installed
Power	200 VA
Size (L×W×H)	680 mm×700 mm×590 mm 1360 mm×900 mm×590 mm if pre-storage trayand reclaiming tray modules are installed
Ambient temperature	10 ~30 ℃
Relative humidity	below 70%
Atmospheric pressure	75kPa~106kPa
Supply voltage	100-240V~ 50/60Hz
Intensity of light	prevent direct sunlight
