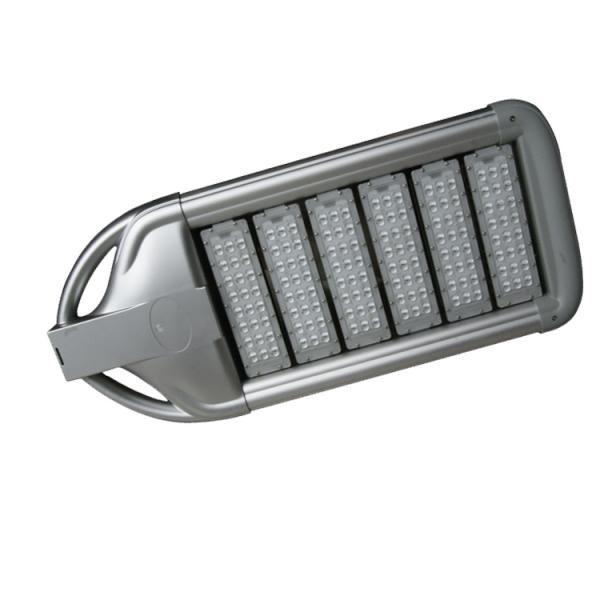

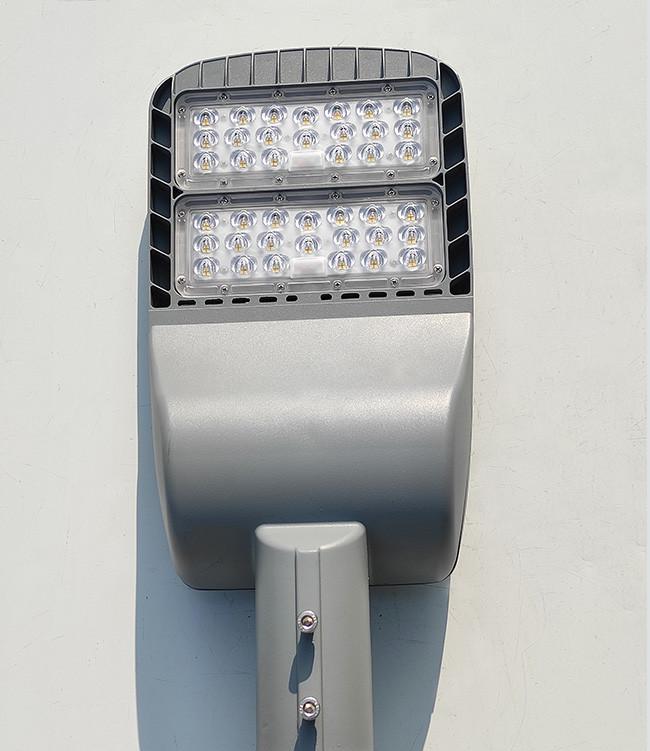

3000K Waterproof 200 watt Led light led Street Light For Shopping Squares And Commercial road
Customized Simple design for industry Led Streetlight,5years Warranty ,IP65
The most important feature of lighting LED is that it has the function of directional light emission, because almost all power LED are equipped with reflectors, and the efficiency of this reflector is significantly higher than that of lamps. In addition, the light efficiency of the LED has been included in the efficiency of its own reflector. The road lamps with LED should make the best use of the characteristics of LED directional light emission, so that each LED in the road lamps directly shines the light to each area of the illuminated road surface, and then use the auxiliary light distribution of the lamp reflector to achieve a very reasonable comprehensive light distribution of the road lamps. It should be said that road lamps should really meet the requirements of illumination and illumination uniformity of CJJ45-2006, CIE31 and CIE115 standards, and the lamps should contain three times of light distribution function can be better realized. And the LED with reflector and reasonable beam output Angle has a good primary light distribution function. In the lamp, the installation position of each LED and the direction of light emission can be designed according to the height of the road lamp and the width of the road surface to achieve good secondary light distribution function. Reflectors in such lamps are only used as auxiliary third light distribution means to ensure better uniformity of road illumination.
| Parameter Informations | JMJX-30 | JMJX-60 | JMJX-90 | JMJX-120 | JMJX-150 |
| Rated Power | 30W | 60W | 90W | 120W | 150W |
| LED Chip | 3W/pc | 3W/pc | 3W/pc | 3W/pc | 3W/pc |
| LED Quantity | 24 | 48 | 72 | 96 | 120 |
| Color Temperature | 4500-5500K | 4500-5500K | 4500-5500K | 4500-5500K | 4500-5500K |
| Input Voltage | AC100-260V | AC100-260V | AC100-260V | AC100-260V | AC100-260V |
| Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Power Factor | >0.97 | >0.97 | >0.97 | >0.97 | >0.97 |
| LED Luminous Efficiency | 140lm/w | 140lm/w | 140lm/w | 140lm/w | 140lm/w |
| (%) Lamp's Efficiency |
>92% | >92% | >92% | >92% | >92% |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Working life | >80000HRS | >80000HRS | >80000HRS | >80000HRS | >80000HRS |
| Environment Temperature | -30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ |
| Light Body material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Pole Height | 6m | 7m | 9m | 10m | 12m |
| Central Illumination | 40lux(6m) | 55lux(7m) | 48lux(9m) | 47lux(10m) | 40lux(12m) |
| Pole Distance | 25M | 35M | 40M | 45M | 50M |
| Installing Size | Φ61mm | Φ61mm | Φ61mm | Φ61mm | Φ61mm |
| Products Size | 520*380*120mm | 600*380*120mm | 720*380*120mm | 840*380*120mm | 960*380*120mm |
| Packing Size | 580*445*185mm | 660*445*185mm | 780*445*185mm | 900*445*185mm | 1020*445*185mm |
| Net Weight | 8KG | 10KG | 12KG | 14KG | 16KG |
| Gross Weight | 10KG | 12KG | 14KG | 16KG | 18KG |
