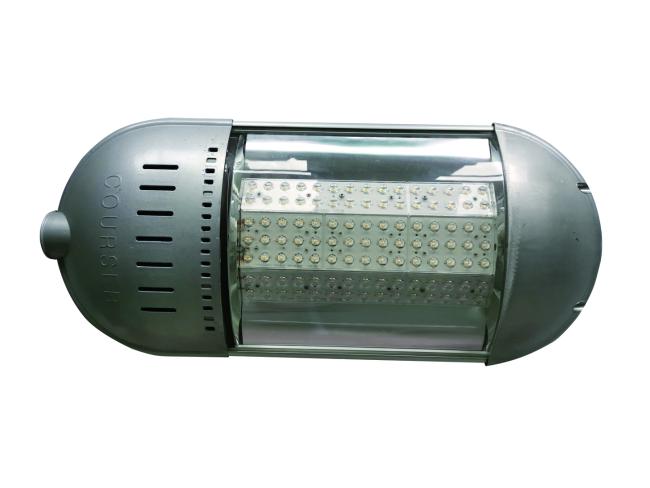

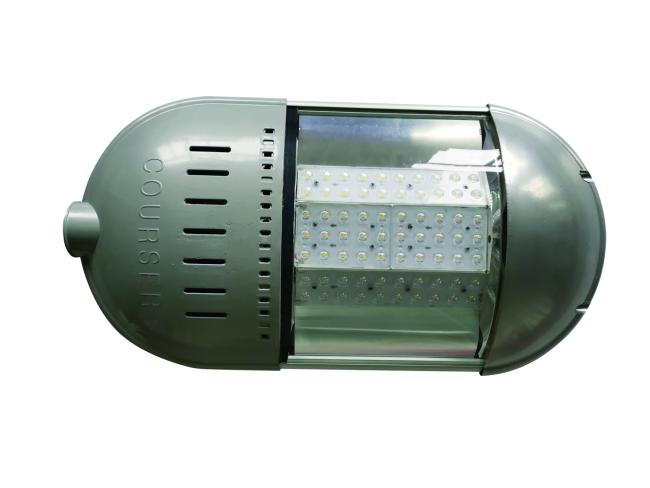

60W 90W 30 Watt Led Street Light Bulb Replacement 3000k 160lm/W Dustproof Outdoor
Led street light lamp ,led bright lamp 160lm/w 10years warranty waterproof and dustproof outdoor light
Led street light lamp ,led bright lamp 150lm/w 5years warranty waterproof and dustproof outdoor light
LED street light is different from conventional street light, LED light source adopts low-voltage DC power supply, high efficiency white light synthesized by gan-based power blue LED and yellow, with high efficiency, safety, energy saving, environmental protection, long life, fast response speed, high color rendering index unique advantages, can be widely used in road. The outer cover can be manufactured with high temperature resistance up to 135 degrees and low temperature resistance up to -45 degrees.
| Parameter /Item No. |
JMJX-30 | JMJX-60 | JMJX-90 | JMJX-120 | JMJX-150 |
| Rated Power | 30W | 60W | 90W | 120W | 150W |
| LED Chip | 3W/pc | 3W/pc | 3W/pc | 3W/pc | 3W/pc |
| LED Quantity | 24 | 48 | 72 | 96 | 120 |
| Color Temperature | 4500-5500K | 4500-5500K | 4500-5500K | 4500-5500K | 4500-5500K |
| Input Voltage | AC100-260V | AC100-260V | AC100-260V | AC100-260V | AC100-260V |
| Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Power Factor | >0.97 | >0.97 | >0.97 | >0.97 | >0.97 |
| LED Luminous Efficiency |
140lm/w | 140lm/w | 140lm/w | 140lm/w | 140lm/w |
| (%) Lamp's Efficiency |
>92% | >92% | >92% | >92% | >92% |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Working life | >80000HRS | >80000HRS | >80000HRS | >80000HRS | >80000HRS |
Environment Temperature |
-30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ |
| Light Body material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Pole Height | 6m | 7m | 9m | 10m | 12m |
| Central Illumination | 40lux(6m) | 55lux(7m) | 48lux(9m) | 47lux(10m) | 40lux(12m) |
| Pole Distance | 25M | 35M | 40M | 45M | 50M |
| Installing Size | Φ61mm | Φ61mm | Φ61mm | Φ61mm | Φ61mm |
| Products Size | 520*380*120mm | 600*380*120mm | 720*380*120mm | 840*380*120mm | 960*380*120mm |
| Packing Size | 580*445*185mm | 660*445*185mm | 780*445*185mm | 900*445*185mm | 1020*445*185mm |
| Net Weight | 8KG | 10KG | 12KG | 14KG | 16KG |
| Gross Weight | 10KG | 12KG | 14KG | 16KG | 18KG |
