High Lumen Solar High Mast Led Street Light 60 Watt 90 Watt 400watt 500watt 600watt 800watt 1000watt
Simple 3M stainless steel outdoor high pole lamp manufacturer outdoor stadium station wharf lighting LED
The main rod is made of high-quality steel plate, and the top head has a split frame, closed, ball, fried dish type, landscape type can also be customized.

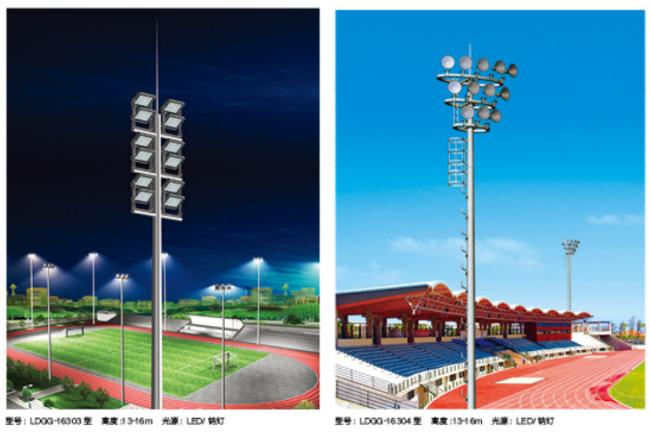

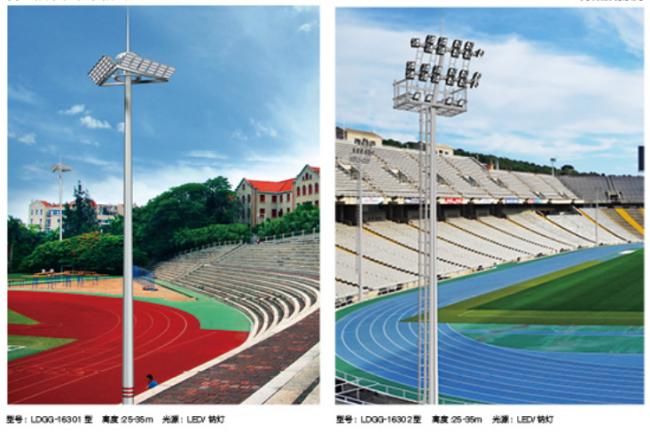

High mast series of large area lighting is the most widely used and the most effective form of light source configuration, mainly suitable for ports, airports, expressways, city squares, multi-storey overpasses, large sports venues and other places that need a large area of centralized lighting, is a functional lighting products.
The rod height of more than 25 meters can also be customized, strong light source, wide illumination, visible conditions can be the same time during the day.High illumination, brightness, and evenness.
Coursertech can customize a variety of high-pole street lights, solar led street lights, etc
| Parameter /Item No. |
JMJX-30 | JMJX-60 | JMJX-90 | JMJX-120 | JMJX-150 |
| Rated Power | 30W | 60W | 90W | 120W | 150W |
| LED LED Chip | 3W/pc | 3W/pc | 3W/pc | 3W/pc | 3W/pc |
| LED LED Quantity | 24 | 48 | 72 | 96 | 120 |
| Color Temperature | 4500-5500K | 4500-5500K | 4500-5500K | 4500-5500K | 4500-5500K |
| Input Voltage | AC100-260V | AC100-260V | AC100-260V | AC100-260V | AC100-260V |
| Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Power Factor | >0.97 | >0.97 | >0.97 | >0.97 | >0.97 |
| Luminous Efficiency | 140lm/w | 140lm/w | 140lm/w | 140lm/w | 140lm/w |
| (%) Lamp's Efficiency |
>92% | >92% | >92% | >92% | >92% |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Working life | >80000HRS | >80000HRS | >80000HRS | >80000HRS | >80000HRS |
Environment Temperature |
-30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ |
| Light Body material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Pole Height | 6m | 7m | 9m | 10m | 12m |
| Central Illumination | 40lux(6m) | 55lux(7m) | 48lux(9m) | 47lux(10m) | 40lux(12m) |
| Pole Distance | 25M | 35M | 40M | 45M | 50M |
| Installing Size | Φ61mm | Φ61mm | Φ61mm | Φ61mm | Φ61mm |
| Products Size | 520*380*120mm | 600*380*120mm | 720*380*120mm | 840*380*120mm | 960*380*120mm |
| Packing Size | 580*445*185mm | 660*445*185mm | 780*445*185mm | 900*445*185mm | 1020*445*185mm |
| Net Weight | 8KG | 10KG | 12KG | 14KG | 16KG |
| Gross Weight | 10KG | 12KG | 14KG | 16KG | 18KG |
