Tunnel High Mast LED Street Light 150 Watt Cool White Non Standard

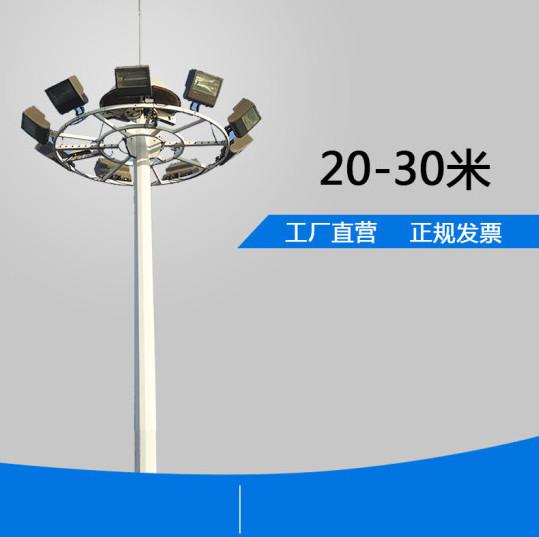

Non standard stadium high pole lamp

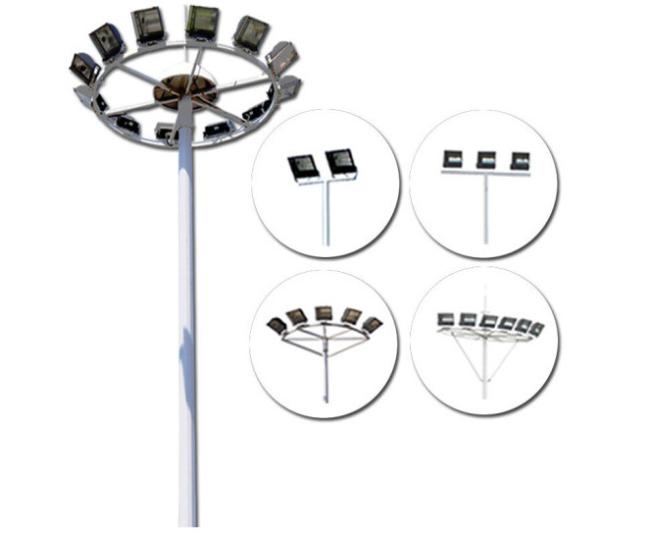

The main pole is made of high-quality steel plate, and the top can be divided into frame, closed, ball, frying dish, landscape, etc.
High mast series large-area lighting is the most widely used and effective light source configuration form. It is mainly suitable for places requiring large-area centralized lighting, such as ports, airports, highways, city squares, multi-storey interchanges, large stadiums and gymnasiums. It is a functional lighting product.
The height of the pole is more than 25 meters, which can also be customized. The light source is strong, the illumination is wide, and the visual conditions can be similar to that in the daytime. High illumination, brightness and uniformity.
Coursertech can customize various high pole street lamps, solar LED street lamps, etc
| Parameter /Item No. |
JMJX-30 | JMJX-60 | JMJX-90 | JMJX-120 | JMJX-150 |
| Rated Power | 30W | 60W | 90W | 120W | 150W |
| LED Chip | 3W/pc | 3W/pc | 3W/pc | 3W/pc | 3W/pc |
| LED Quantity | 24 | 48 | 72 | 96 | 120 |
| Color Temperature | 4500-5500K | 4500-5500K | 4500-5500K | 4500-5500K | 4500-5500K |
| Input Voltage | AC100-260V | AC100-260V | AC100-260V | AC100-260V | AC100-260V |
| Frequency Range | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Power Factor | >0.97 | >0.97 | >0.97 | >0.97 | >0.97 |
| LED Luminous Efficiency |
140lm/w | 140lm/w | 140lm/w | 140lm/w | 140lm/w |
Lamp's Efficiency |
>92% | >92% | >92% | >92% | >92% |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| Working life | >80000HRS | >80000HRS | >80000HRS | >80000HRS | >80000HRS |
Environment Temperature |
-30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ | -30℃to+65℃ |
| Light Body material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Pole Height | 6m | 7m | 9m | 10m | 12m |
| Central Illumination | 40lux(6m) | 55lux(7m) | 48lux(9m) | 47lux(10m) | 40lux(12m) |
| Pole Distance | 25M | 35M | 40M | 45M | 50M |
| Installing Size | Φ61mm | Φ61mm | Φ61mm | Φ61mm | Φ61mm |
| Products Size | 520*380*120mm | 600*380*120mm | 720*380*120mm | 840*380*120mm | 960*380*120mm |
| Packing Size | 580*445*185mm | 660*445*185mm | 780*445*185mm | 900*445*185mm | 1020*445*185mm |
| Net Weight | 8KG | 10KG | 12KG | 14KG | 16KG |
| Gross Weight | 10KG | 12KG | 14KG | 16KG | 18KG |
