Stone Saw Machine For Quarrying

Price Negotiable
Price: Negotiable
MOQ: 1 Set
Delivery Time: 30 days after deposit
Brand: StoneSawMachine.com
Product Description

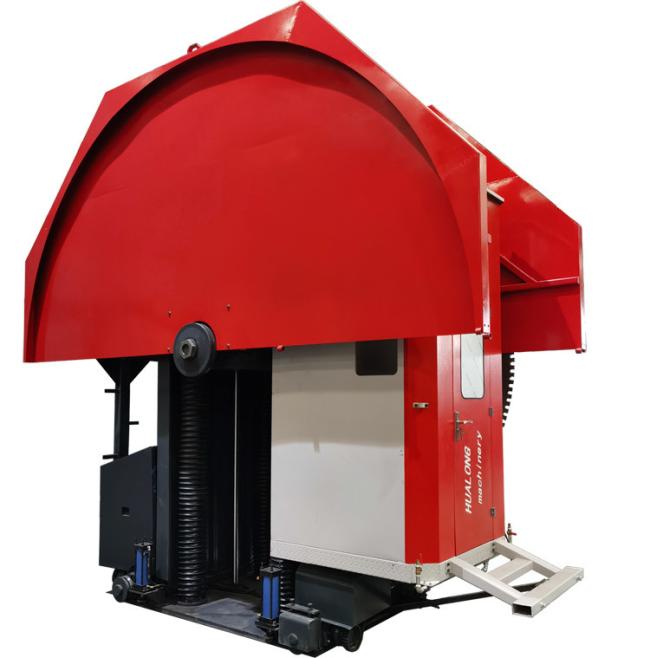

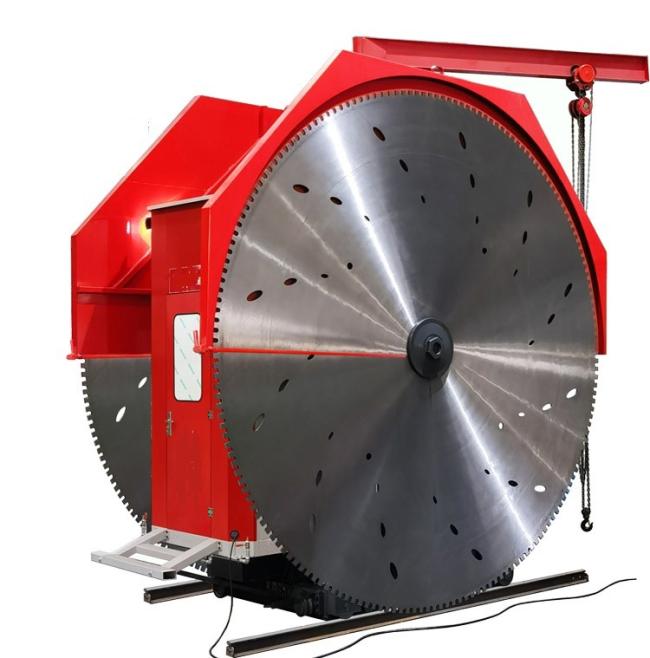

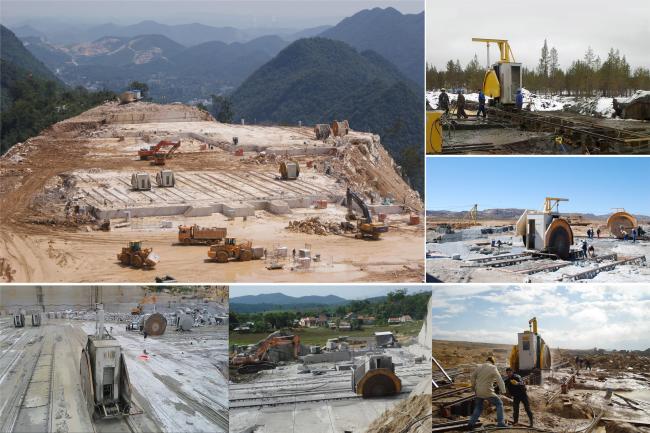

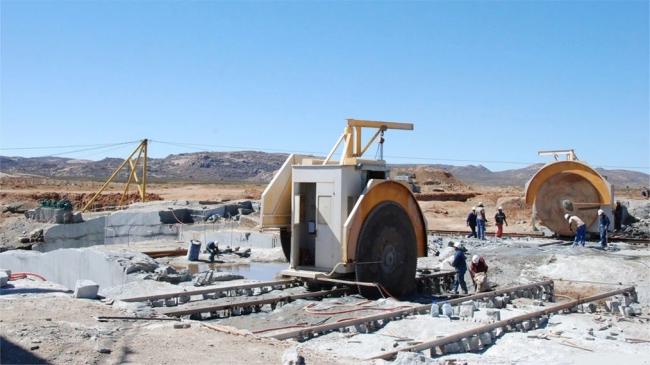

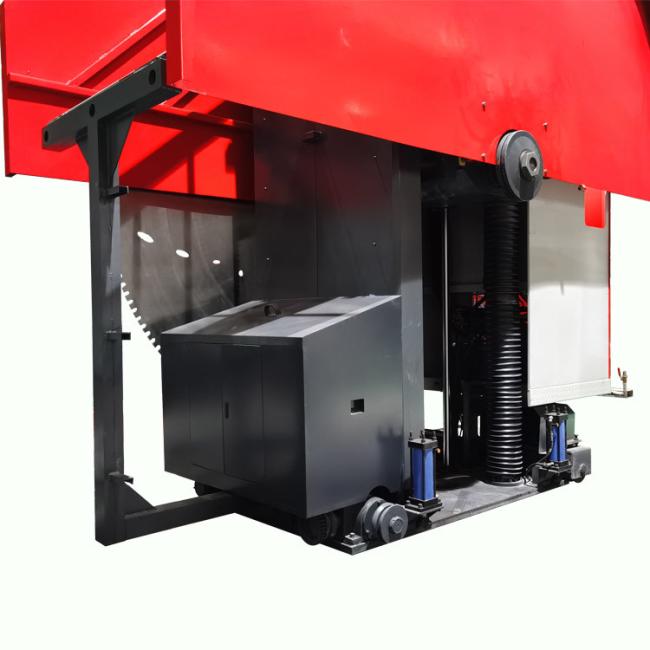

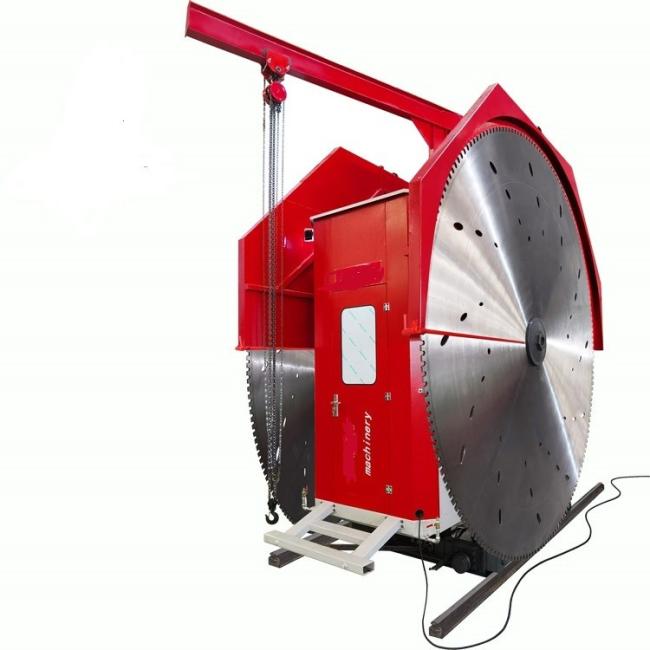

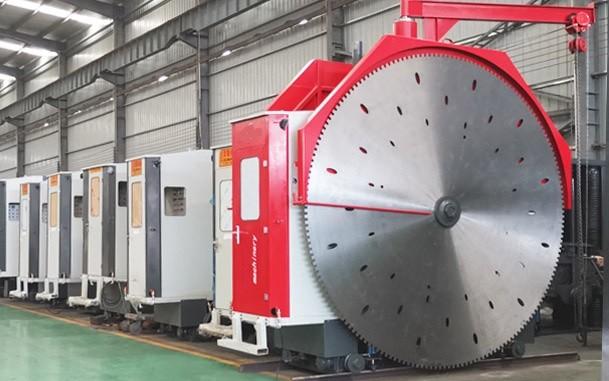

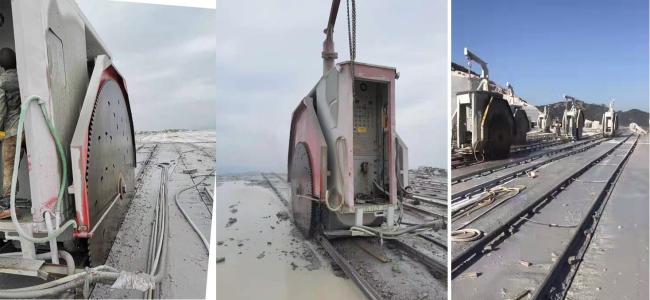

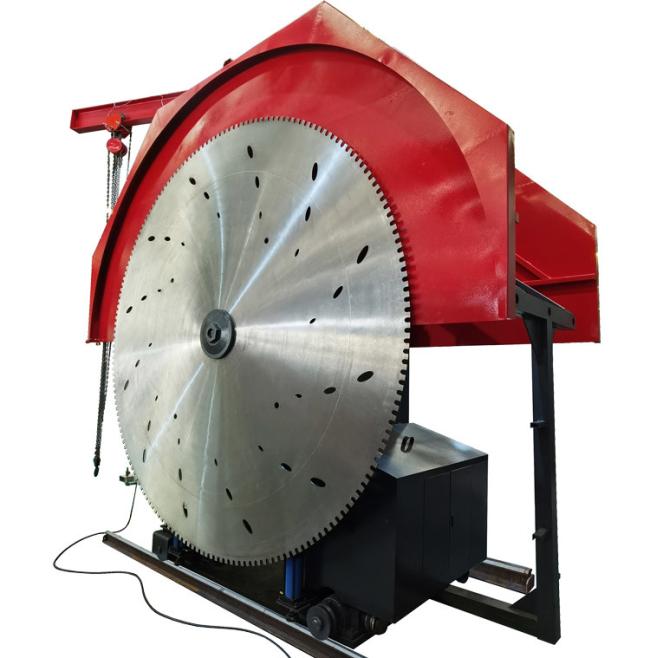

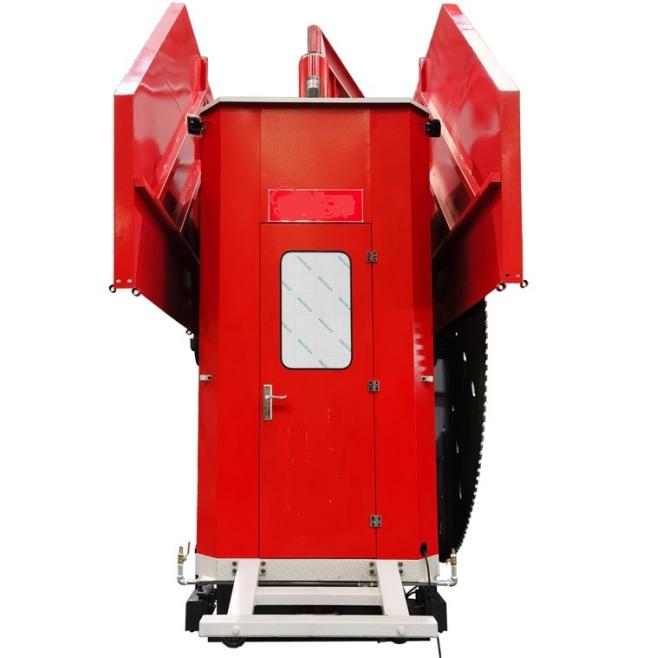

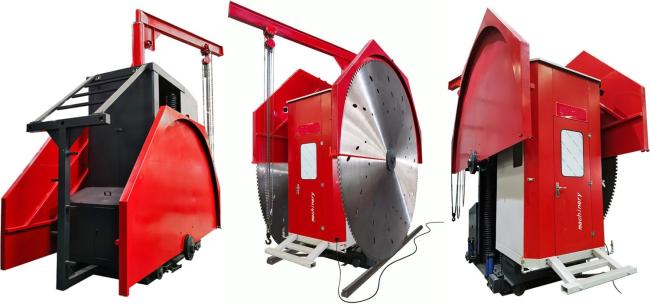

Quarry Stone Cutting Machine of 4200 series is a new stone quarry machine Stone Mining Machine with Double Blades other than wire saw. It was original created by Hualong Machinery with patents in 2002 , which working on railway, mining stone with double big blades, improve much the mining efficeincy while lower consumption. It's popular in China and more and used more worldwide in quarry for mining granite, also good for marble, quartz and other natural stone.



* High speed --- It can cut est. 15 sqm/hour, while the wire saw cuts about 10 sqm/hour.
* Low consumption --- It cost about USD1.00/sqm, while the wire saw cost USD1.5-2.3/sqm.
* Quality Assurance
--- Made with 25 years+ expertise and patents.
--- Strictly conforming to ISO9001:2105 quality management system.

PRODUCT SPECIFICATIONS
TECHNICAL DATA for 2QYK series stone quarry machine
Model No.

MCHL-1350
MCHL-3600
MCHL-4200
MCHL-4600/4800/5000
Blade diameter
mm
1350
3600
4200
4600 / 4800 / 5000
Max.cutting depth
mm
425
1500
1850
2050 / 2150 / 2250
Cutting width ofType A
mm
1360-1860
1450-1950
1950-2450
2450-2950
Type B
mm
1800-2300
1900-2400
2400-2900
2650-3150
Type C
mm
/
2300-2800
2800-3300
2850-3350
Type D
mm
/
2700-3200
3200-3700
3200-3700

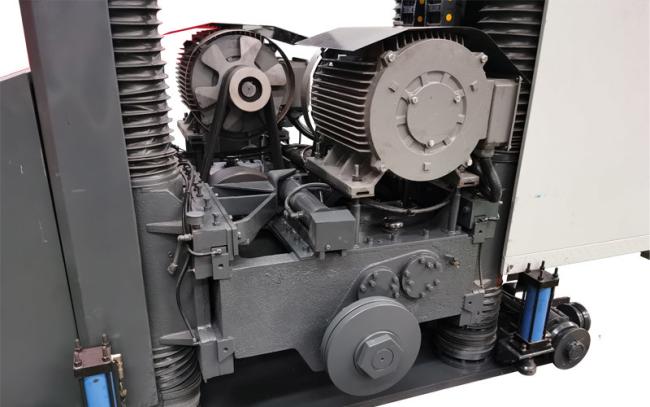

Power of main motor
kw
55x2
55x2
65x2
65x2
Power of pump motor
kw
3.5
3.5
4
4
Power of stroke motor
kw
2.2
2.2
3
3.5
Power of rail switch motor
kw
0.55×2
0.75×2
1.1×2
1.1×2
Gross power
kw
116.8
117.2
139.2
139.2
Dimension (L x W x H)
mm
3200x2100x2800
3800x2200x3100
4700x2100x3500
5100x2800x3800
Gross Weight
kg
7000-8500
7500-10000
9500-11500
9500-12500
