Stone Baluster Cutting Machine
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
30 days after deposit
Brand:
StoneSawMachine.com
Product Description

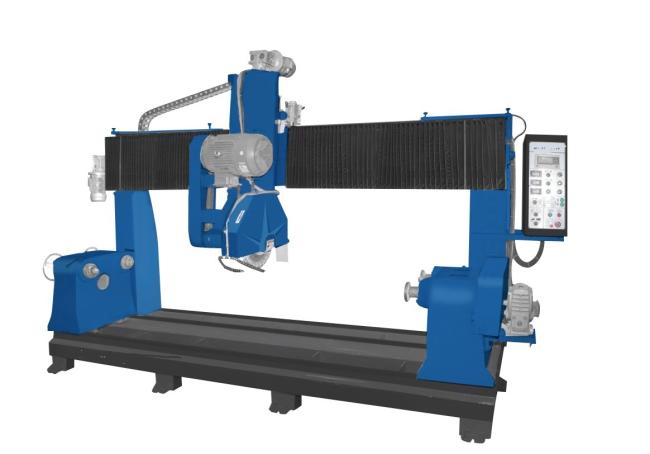

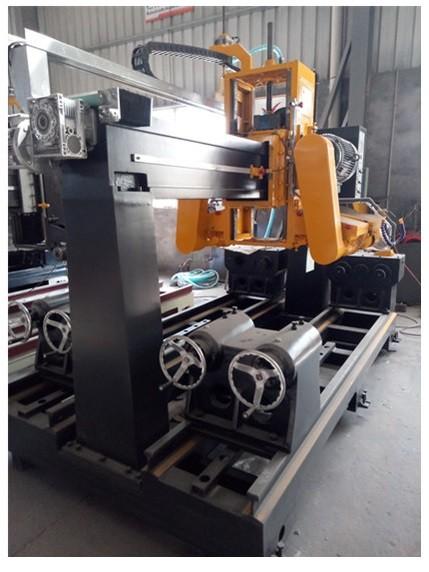

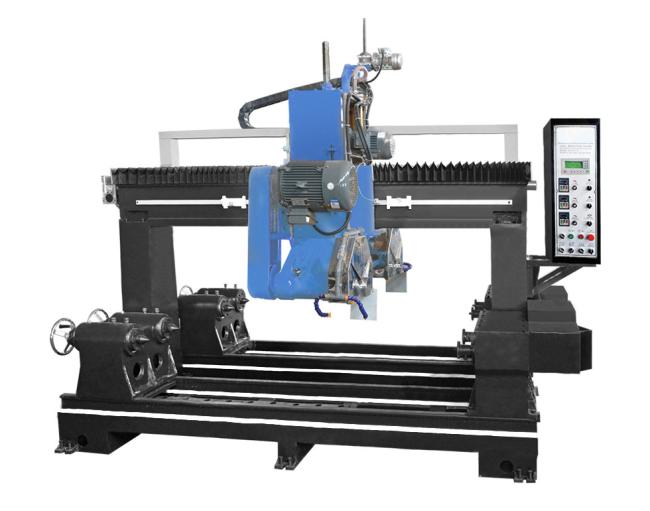

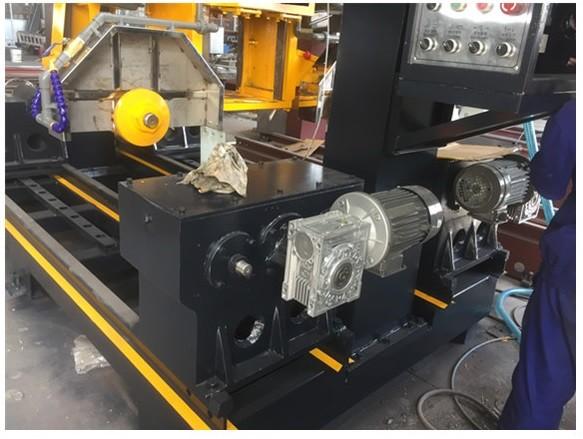

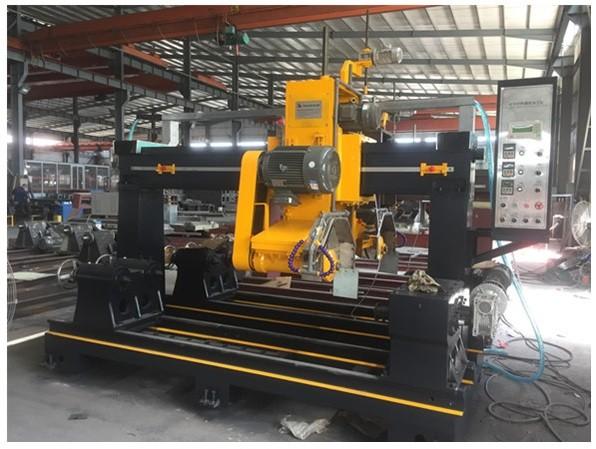

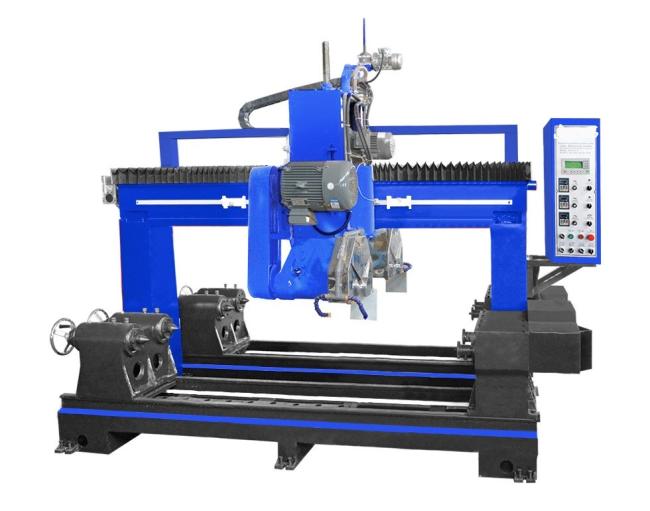

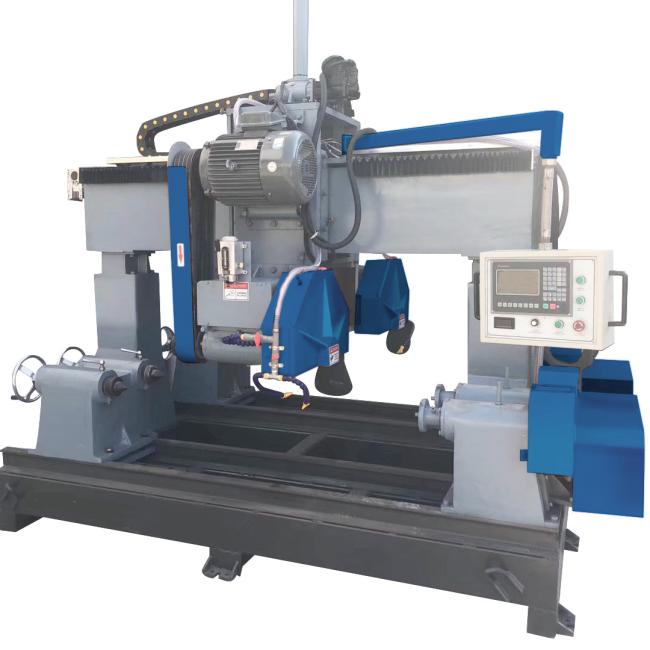

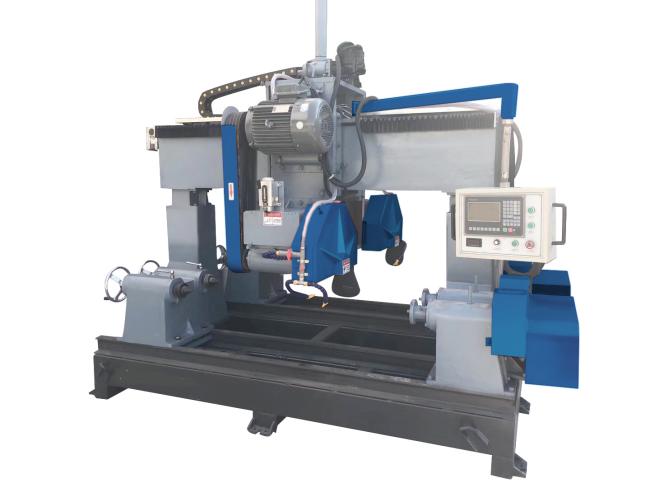

YFQ-290 bidrirectional cuts machine/YFQ700 bridge Bidirectional cuts machine /WLM-500 inventer grinder machine
It is adopts in gantry phone frame, microprocessor control and optical fiber monitor .
four blocks can be processed at one time.

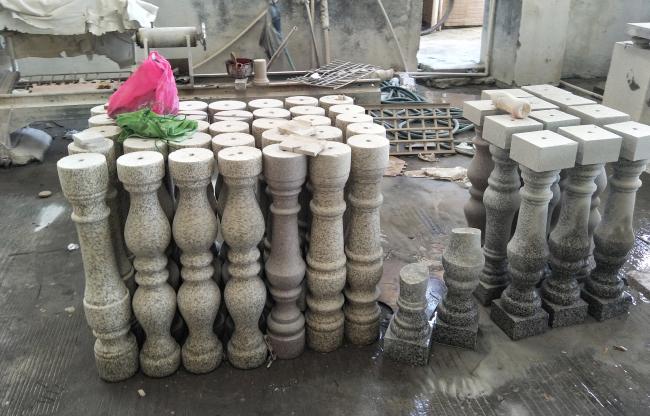

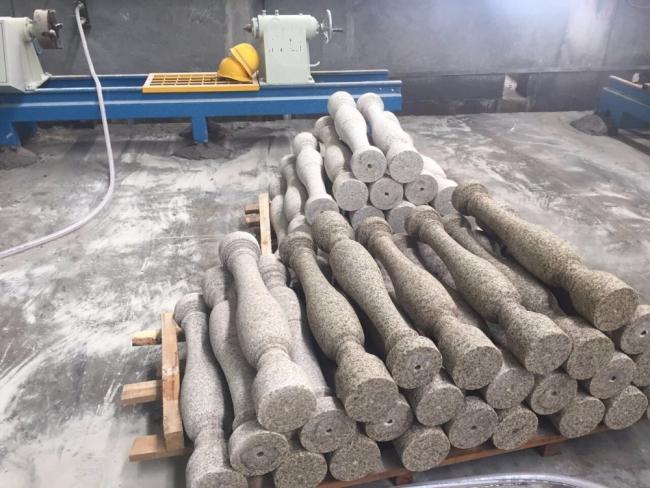

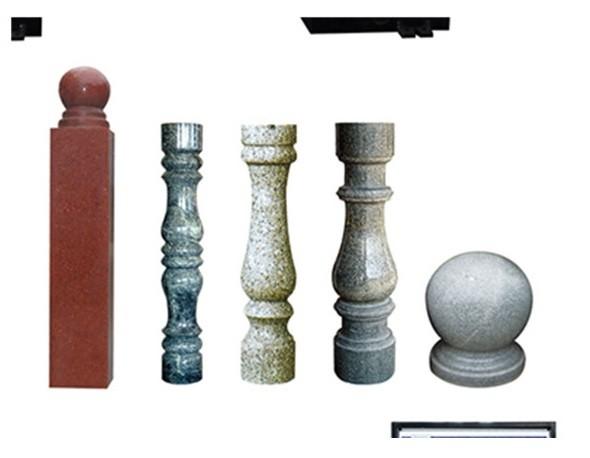

it can cut all kind of solid of revolutions such as systloidal baluster, pellet, stylobate, cap and column and so on.
as a automatic machine, it has already avoided the defects of manal process, one worker can operate many set of machines after adjusting the process parameter.
Technical parameter
| Model | YFQ290 | YFQ700 |
| max. cutting length | 500-900mm | 1400mm |
| max. cutting diameter | 600x2pcs -290x4pcs | 400mm |
| blade diameter | 400-600mm | 440-470mm |
| main motor power | 11kw | 11kw |
| water consumption | 3m3/h | 3m3/h |
| approximate weight | 2500kgs | 2500kgs |
| overall dimensions | 3200x1225x2100mm | 2380x1200x2500mm |
