Gantry Block Cutting Machine

Gantry Block Cutting Machine

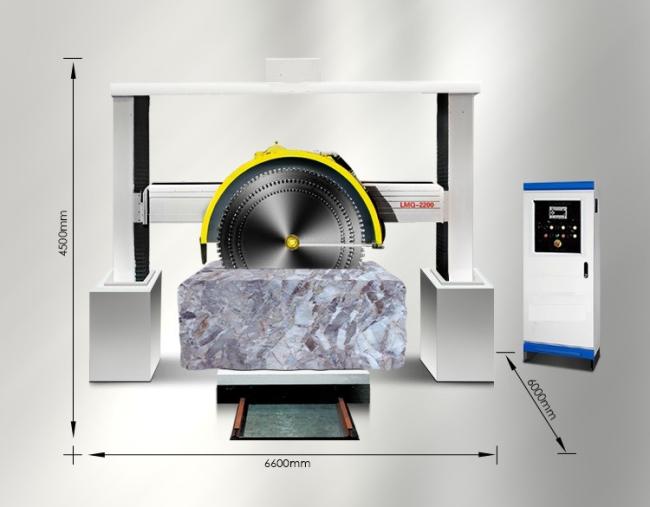

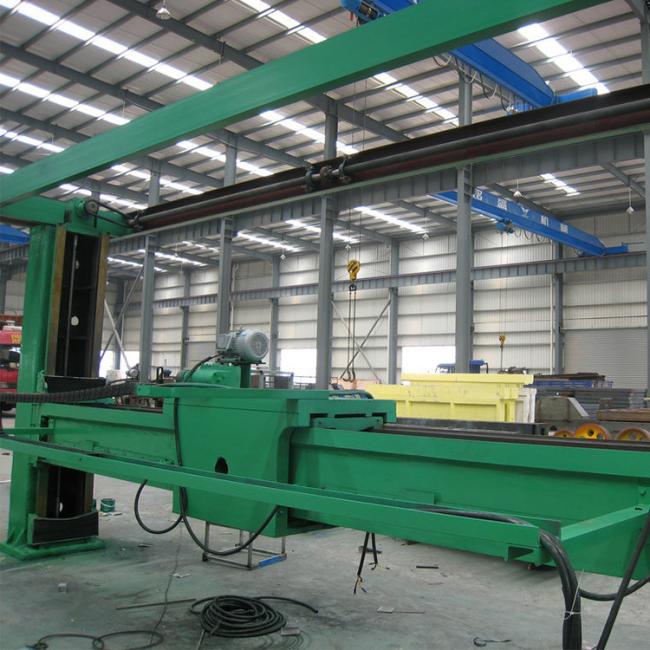

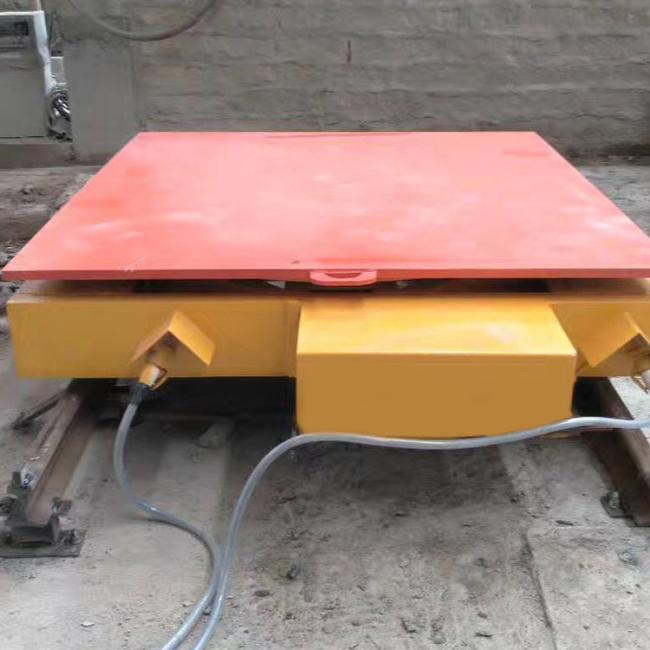

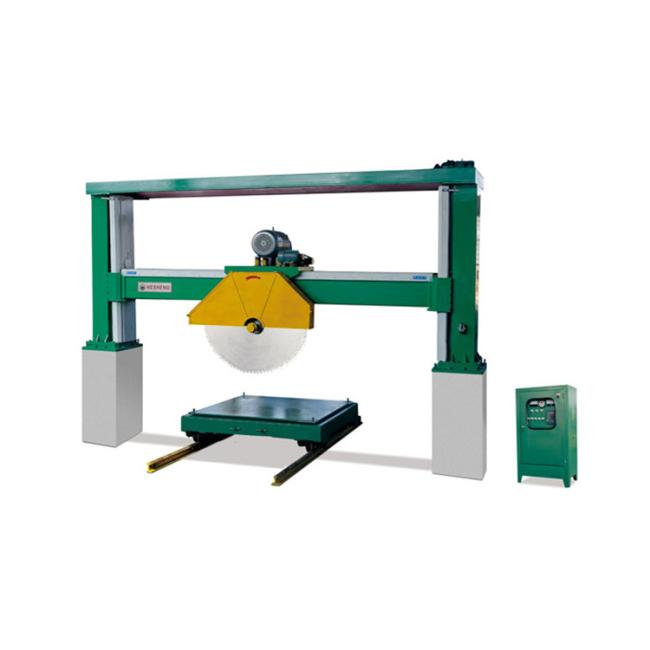

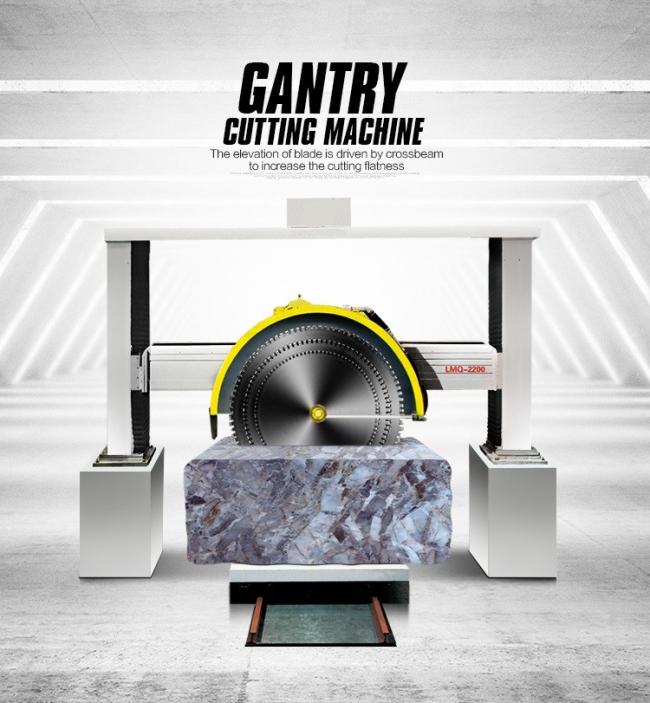

LMDQ-1500 Gantry Type Block Levering Machine is a single blade stone cutting machine with rotating worktable. It's ideal for cutting art stone, tomb stone and monument stone that may need cutting in different angles.The whole machine body is made of cast iron for high rigidity. Blade holder slides on the bridge right and left for cutting stone. The blade holder sliding rails on the bridge is machined by high-precision machining center to ensure small clearance, which resulting in accurate blade cutting and smooth slab surface.The two ends of the bridge are attached to pillars and the attaching force is adjustable. There is a lead screw and nut system inside each pillar for bridge lifting/lowering movement. When the motor on top of this machine runs and transfers force through a long steel bar and two pairs of bevel gear system to drive two lead screws inside pillars, the bridge goes up and down.The worktable has four heavy duty wheels to bear the weight of large stone block and runs on steel rails. The top of this worktable can rotate 360 ˚ for easy angle cutting on a stone piece. When the worktable top has been turned to a required cutting angle, then it can be locked for stable cutting.
