Chain Saw Machine For Quarry Cutting

Price Negotiable
Price: Negotiable
MOQ: 1 Set
Delivery Time: 30 days after deposit
Brand: StoneSawMachine.com
Product Description

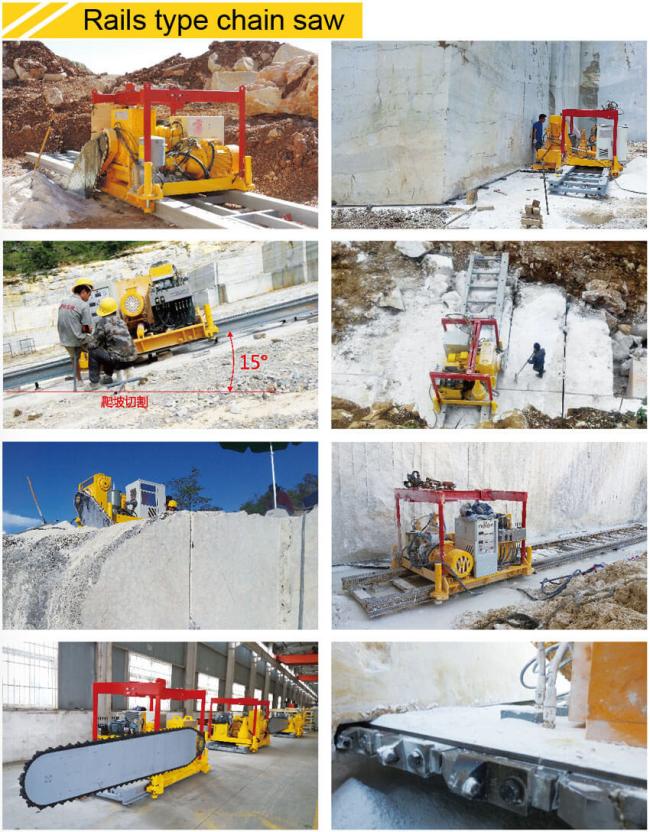

Chain Saw Machine for Quarry Cutting
1. This machine can also cutting on uneven ground, like cutting on 15 degree slope.
2. Normally, it can cut without water.
3. It can blindly cut, don't need to drill ahead of time. It can save auxiliary time and large air compressor equipment.
4. Cutting surface is very smooth, it can improve the considition of mines, and the blocks are square and don't need to trimming.
5. It is quiet and safe in operation, has good working environment and low laber intensity, only need 1 person to operate.
6. It has high cutting efficiency while continuously cutting, in the case of 3000mm cutting depth type, 10 hours continuously working can cut 60 square meters of cutting surface.
7. Cutting cost is lower than that of diamond wire saw.
8. Used with diamond wire saw can make full use of their strengths, two kinds of machine can achieve the effect of 1+1>2

Models Cutting Deep Width of Cutting Gap Cutting Speed Moving Speed Power Weight Dimension
2000 2000mm 40mm 0~4m/h 30m/h 30kw 5200 kg 3200X1800X1400mm
2500 2500mm 40mm 0~4m/h 30m/h 40kw 5400 kg 3200X1800X1400mm
3000 3000mm 40mm 0~4m/h 30m/h 53kw 6500 kg 3200X2000X1500mm
3200 3200mm 40mm 0~4m/h 30m/h 53kw 6600 kg 3200X2000X1500mm
3500 3500mm 40mm 0~4m/h 30m/h 53kw 6700 kg 3200X2000X1500mm
4000 4000mm 40mm 0~4m/h 30m/h 53kw 6900 kg 3200X2000X1500mm
5000 5000mm 40mm 0~4m/h 30m/h 65kw 9500 kg 4000X2100X1700mm
6000 6000mm 40mm 0~4m/h 30m/h 65kw 9900 kg 4000X2100X1700mm
7500 7500mm 40mm 0~4m/h 30m/h 65kw 10500 kg 4000X2100X1700mm
