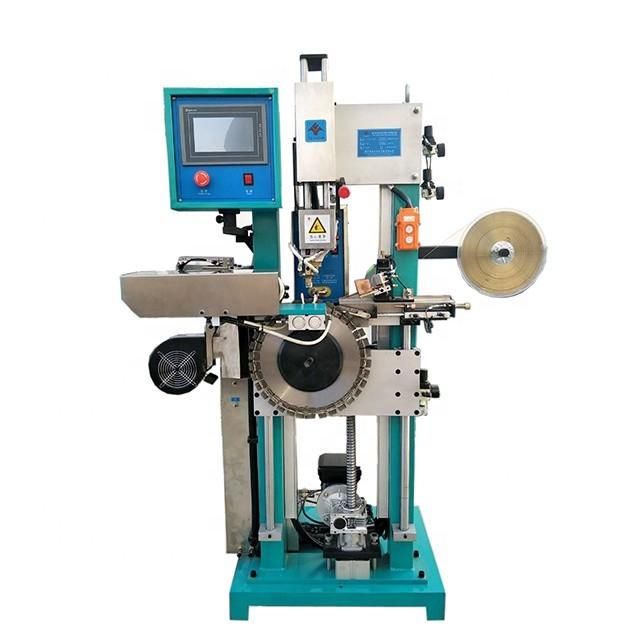

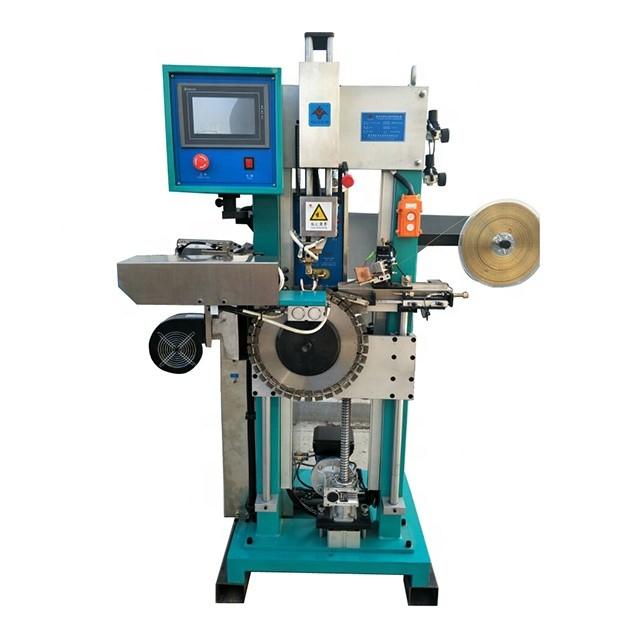

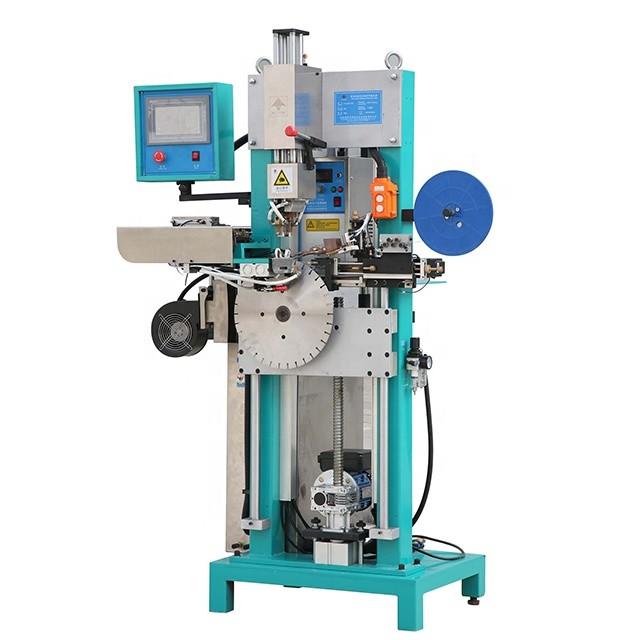

Segment Brazing Welding Machine For Saw Blade

Fully automatic diamond segments brazing machine for stone cutting saw blade

Product Features:

1. Automatically to the diamond cutter and matrix;

2. Automatic welding ,with Solder wire length compensation function,low error rate;

3. Touch screen humanized operation design,easy to use;

4. Constant temperature heating flux,coating is more uniform;

5. Abnormal welding automatic alarm function;

6 .High degree of automation,high positioning accuracy, automatic sending welding wire.

7.Wide welding range,The new and old saw blade can make sure welding accuracy

Products Description:

1. Segment automatic picking & fixing system. Machine can automatic pick the segment and fix to the welding position.

2. Segment manually centering system. Manually adjust the welding position of the segment before the welding.

3. Traditional sliver solder automatic sending system. It is effective and cheaper choose but less accurate and inconvenient.

4. Sliver solder automatic cutting & sending system. Operator can set the length of the solder in the touch screen, then machine will automatic cut off the solder and sent to the welding position. Very accurate and convenience.

5. Automatic put soldering flux on the welding side of the segment. Sliver solder sending and flux putting are both independent, so they will not influence each other.

6. Automatic put soldering flux on the welding side of the saw blade.

7. Pneumatic automatic segments separating system.

8. Ceramic clip protection function.
