Wire Saw Diamond Beads

Wire Saws Diamond Beads

1. Diameter: 8.0mm to 11.5mm
2. Bead fixing methods: Spring holding up, plastic injection, rubber injection, plastic(rubber) injection plus spring holding up.
3. Applications: Diamond wire saw is applied to stone quarrying, block shaping, cutting for abnormal shape and carrying out construction engineering and so on. Different bonded and diamond concentration is available for material such as granite, marble, concrete, limestone, sandstone etc.
4. Feature: High efficiency ,Easy use: Good flexibility ; Low noise; Small cutting slot( It can reduce waste of material and it is no hurt to stones).

Diamond Rope Wire Cutting Granite Marble Saw Beads for Rubber/Electroplated/Sintered Wire Saw

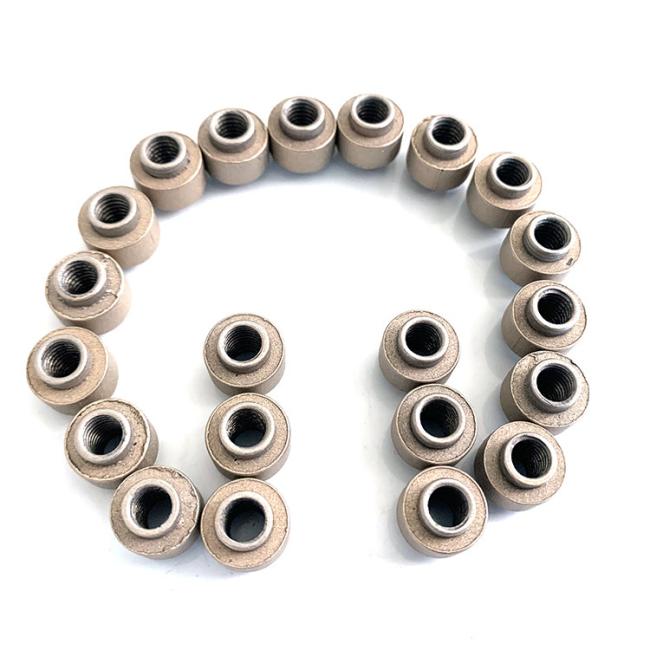

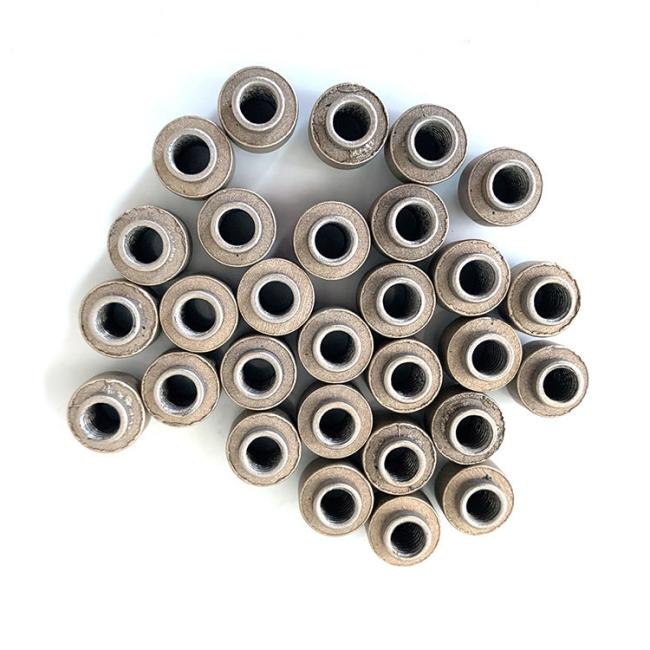

1. Sinter type beads for stone block profiling & dressing in factory wet cutting
11.5mm.
Sintered.
Spring coated.
28 beads per meter,
8.0mm outer diameter body, 5.2mm inside core diameter.
7.8mm outer diameter body, 5.2mm inside core diameter.
Machine power: 18.5kw
Wire length: 14 meters

2. Sinter type beads for stone quarrying with dry cutting
11.5mm.
Sintered.
Spring coated.
28 beads per meter,
8.0mm outer diameter body, 5.2mm inside core diameter.
7.8mm outer diameter body, 5.2mm inside core diameter.
Machine power: 45kw or 52kw.
Wire length: 20-60 meters

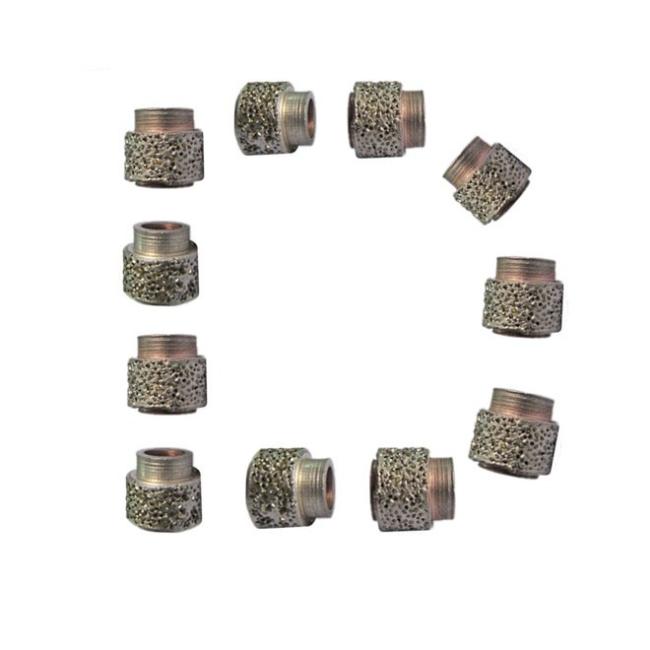

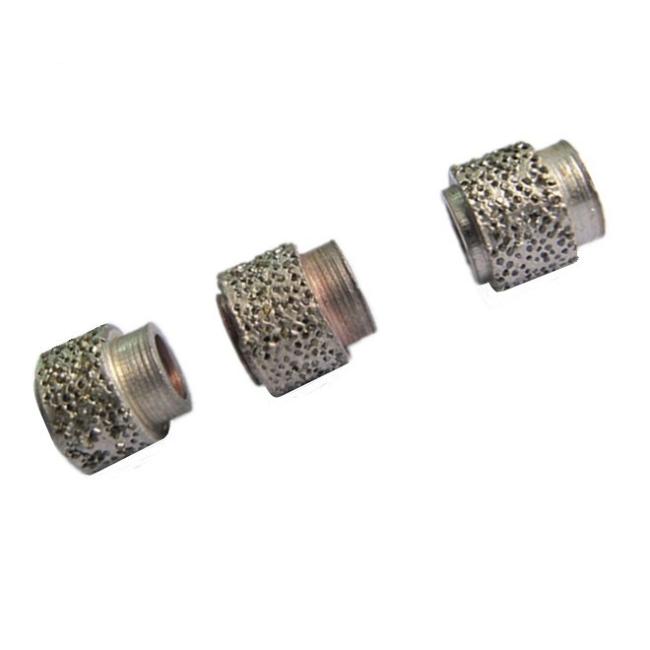

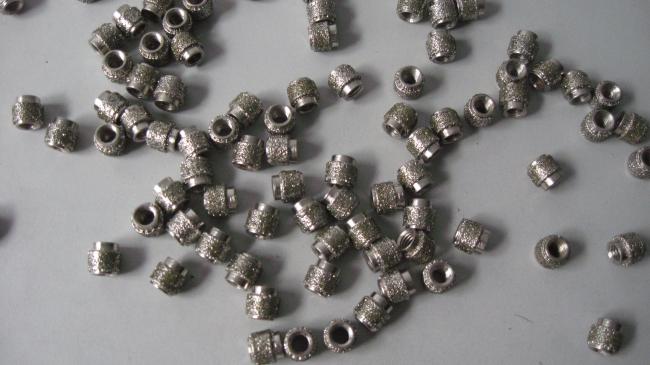

3. Electroplated type beads for stone quarrying with dry cutting
11.5mm/11.0mm/10.5mm
Spring coated.
28 beads per meter,
8.0mm outer diameter body, 5.2mm inside core diameter.
Machine power: 45kw or 52kw.
Wire length: 20-60 meters
4. Electroplated type beads for stone quarrying with dry cutting

Regular Specifcations:
