CNC Monoblock Bridge Cutting Machine
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
30 days after deposit
Brand:
StoneSawMachine.com
Product Description

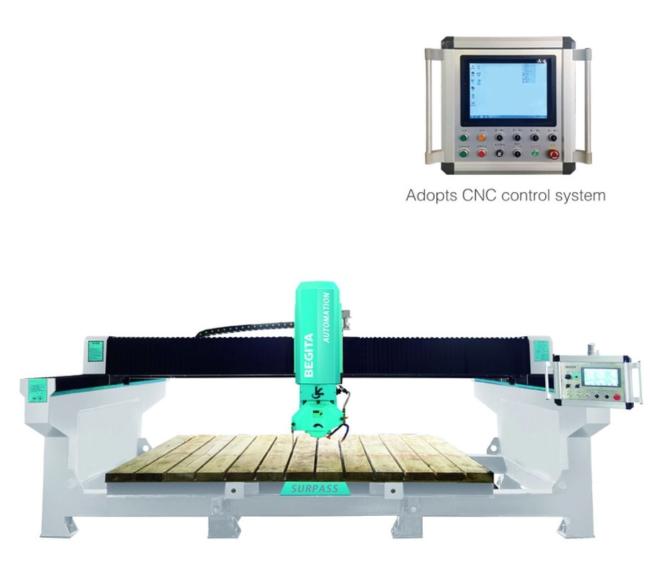

15kw Integrated CNC Monoblock Bridge Cutting Machine For Marble Sintered Stone
Product Description
ZDCM Bridge cutting machine adopts Microcomputer system, it is easy to operate. lntegrated structure makes the installation easier. The frame of the machine body is processed and formed by CNC gantry milling center at one time, using high precision linear guide sliders, grinding grade ball screws, and high-end servo systems. It greatly improves the stability, processing accuracy and production efficiency of the equipment, and reduces the failure rate. It is suitable for all kinds of large scale plate processing with high precision requirements and high value.
Technical Parameter
| Parameter | Unit | ZDCM-400-A | ZDCM-400-B | ZDCM-400-C |
| Blade diameter | mm | φ300-φ400 | φ300-φ400 | φ300-φ400 |
| Max processing size | mm | 3200x2000x80 | 3200x2000x80 | 3200x2000x80 |
| Worktable size | mm | 3200x2000 | 3200x2000 | 3200x2000 |
| Worktable tilting angle | ° | 0-85° | 0-85° | 0-85° |
| Cutting head rotating angle | ° | 0-90° | 0-360° | 0-360° |
| Cutting head chamfer rotating angle | ° | 0-45° | 0-45° | 0-45° |
| Water consumption | m³/h | 3 | 3 | 3 |
| Main motor | kw | 15 | 15 | 15 |
| Outline dimension | mm | 5000x3100x2600 | 5000x3100x2600 | 5000x3100x2600 |
| Gross weight | kg | 6000 | 6000 | 6000 |
