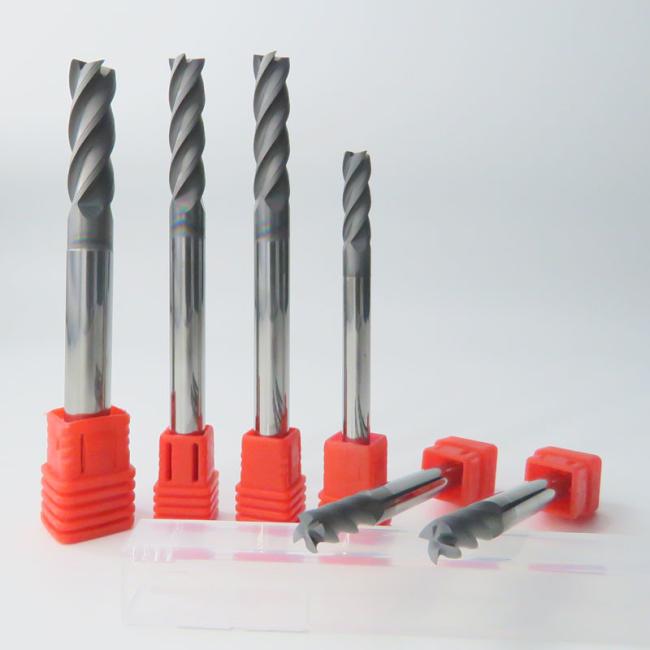

6mm 4 Flutes D6 Tungsten Carbide End Mills For Graphite
Solid Tungsten Carbide 4 Flutes D6 Square End Mills For Graphite
Diamond coated inserts has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of graphite machining applications. End Mills for Graphite select high-quality carbide materials, advanced manufacturing technology, additional higher standard of surface diamond coating,
| Material: | Tungsten Carbide |
| Standard: | Standard |
| Flute: | 4flutes |
| Corner Radius: | 0 |
| Shank Dia.: | 6mm |
| Overlength: | 75mm |
| Coated: | Diamond Coated |
| Series: | G |
| Flute Dia.: | 6mm |
| Flute Length: | 15mm |
| Helix Angle: | 35° |
| Shank Shape: | Straight Shank |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.
