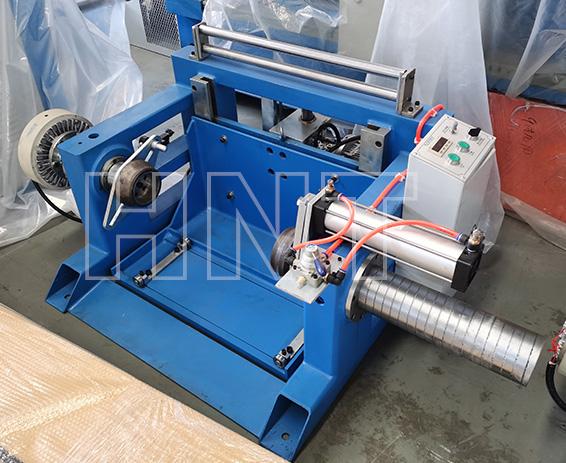

Passive Payoff Machine Magnetic Brake Cable Rewinding Line
Price:
negotiable
MOQ:
1 set
Delivery Time:
30-120 days
Brand:
HNT
Product Description
Passive Payoff
Description:
1. The pay-off can work with drawing machine, annealing machine, extrusion line, coiling and packing machine, rewinding machine, ect...
2. Structure: The pintle table is fixed, can not be moved from left and right;
3. Wire shaft lifting mode: electric lifting;
4. Pintle Clamp type: Cylinder;
5. Brake: Magnetic brake;
- Double reel Pay-off Specification:
| Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
| PF-1000M | 630 - 1000 | 300 - 750 | 1500 |
| PF-1250M | 800 - 1250 | 450 - 950 | 2500 |
| PF-1600M | 1000 - 1600 | 600 - 1200 | 4000 |
-Single Reel Pay-off Specification:
| Model | Inner diameter (mm) | Outer diameter (mm) | Max load (kg) |
| PFS-630M | 400 - 630 | 300 - 475 | 600 |
| PFS-800M | 630 - 800 | 475 - 600 | 1000 |
| PFS-1000M | 800 - 1000 | 600 - 750 | 1500 |
| PFS-1250M | 1000 - 1250 | 750 - 950 | 2500 |
