150m/Min Steel Al Copper Wire Tubular Strander Machine Tubular Strander
Price:
negotiable
MOQ:
1 set
Delivery Time:
30-120 days
Brand:
HNT
Product Description

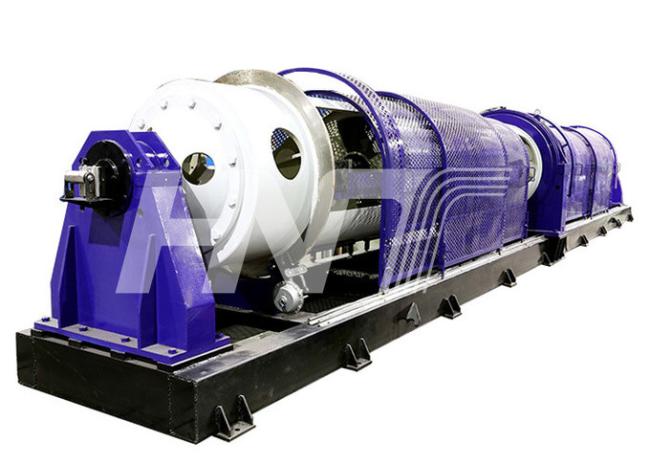

JLG Tubular Stranding Series
Description
The JLG tubular stranding series is mainly designed for 7 core stranding. This series can be used to strand aluminum conductors, copper conductors, pressed copper conductors and etc.
Technical parameters:
| Model | JLG 500 | JLG 630 |
| Single wire diameter | Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm |
Cu: Ø 1.2-5.0 mm Al: Ø 1.5-5.0 mm |
| Max finish wire diameter | Ø 21 mm | Ø 21 mm |
| Max rotation speed | 500 rpm | 500 rpm |
| Stranding pitch | 40-448 | 40-448 |
| Max line speed | 150 m/min | 150 m/min |
| Bobbin specification | PND500 | PND630 |
| Capstan wheel | 1250 mm | 1250 mm |
| Take-up bobbin | PN1600 | PN1600 |
| Height of center | 850 mm | 850 mm |
